AMD Radeon RX 9070
vs

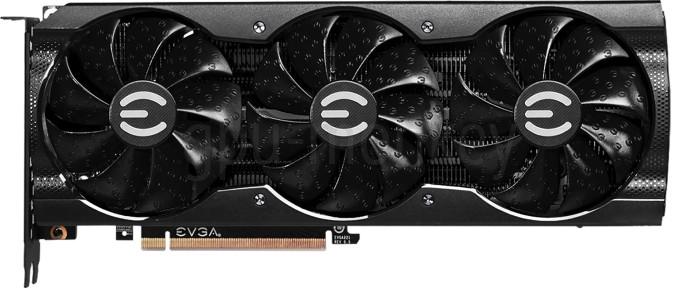

EVGA GeForce RTX 3080 XC3 GAMING
GPU comparison with benchmarksIn the gpu comparison between the AMD Radeon RX 9070 and the EVGA GeForce RTX 3080 XC3 GAMING, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe AMD Radeon RX 9070 is based on the AMD Radeon RX 9070 and has 3584 texture shaders and 56 execution units. EVGA GeForce RTX 3080 XC3 GAMING is based on NVIDIA GeForce RTX 3080, which has 8704 shaders and 68 execution units. |
||
| AMD Radeon RX 9070 | GPU | EVGA GeForce RTX 3080 XC3 GAMING |
| AMD Radeon RX 9070 | Based on | NVIDIA GeForce RTX 3080 |
| Navi 48 XT | GPU Chip | GA102-200-K1-A1 |
| RDNA 4 | Architecture | Ampere |
| 56 | Streaming Multiprocessors | 68 |
| 3584 | Shader | 8704 |
| 128 | Render Output Units | 96 |
| 224 | Texture Units | 272 |
| 56 | Raytracing Cores | 68 |
MemoryThe AMD Radeon RX 9070 has 16 GB of graphics memory of the type GDDR6 and achieves a memory bandwidth of 645 GB/s. The EVGA GeForce RTX 3080 XC3 GAMING can access 10 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 760 GB/s. |
||
| 16 GB | Memory Size | 10 GB |
| GDDR6 | Memory Type | GDDR6X |
| 2.518 GHz | Memory Clock | 1.188 GHz |
| 20.1 Gbps | Memory Speed | 19.0 Gbps |
| 645 GB/s | Memory bandwidth | 760 GB/s |
| 256 bit | Memory Interface | 320 bit |
Clock SpeedsThe AMD Radeon RX 9070 clocks in the base with up to 1.330 GHz. The base frequency of the EVGA GeForce RTX 3080 XC3 GAMING is 1.440 GHz. |
||
| 1.330 GHz | Base Clock | 1.440 GHz |
| 2.520 GHz | Boost Clock | 1.710 GHz |
| 2.07 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the AMD Radeon RX 9070 is 220 W (Reference). The graphics card is supplied with energy via the 2 x 8-Pin connector. The EVGA GeForce RTX 3080 XC3 GAMING has a TDP of 320 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 220 W (Reference) | TDP | 320 W |
| -- | TDP (up) | 370 W |
| 85 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe AMD Radeon RX 9070 has a total of 2 Axial fans. The EVGA GeForce RTX 3080 XC3 GAMING has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 90 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | 41-42 dB |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the AMD Radeon RX 9070. The EVGA GeForce RTX 3080 XC3 GAMING supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v2.1a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe AMD Radeon RX 9070 supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the EVGA GeForce RTX 3080 XC3 GAMING is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Non addressable LED | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode |
| Decode / Encode | VP8 | Decode |
| Decode / Encode | VP9 | Decode |
DimensionsThe AMD Radeon RX 9070 is -- long, -- high and -- wide. The EVGA GeForce RTX 3080 XC3 GAMING is 285 mm long, 111 mm high and -- wide. |
||
| -- | Length | 285 mm |
| -- | Height | 111 mm |
| -- | Width | -- |
| 2 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 5 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe AMD Radeon RX 9070 was released in Q2/2025 at a price of 549 $ (Reference). The EVGA GeForce RTX 3080 XC3 GAMING was introduced in Q4/2020 at a price of 819 $. |
||
| -- | Part-no | 10G-P5-3883-KR |
| Q2/2025 | Release date | Q4/2020 |
| 549 $ (Reference) | Launch Price | 819 $ |
| 4 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.330 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
1.440 GHz, 10 GB (320 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
Geekbench 6 - Vulkan
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
AMD Radeon RX 9070
16 GB GDDR6 |
||
|
|
EVGA GeForce RTX 3080 XC3 GAMING
10 GB GDDR6X |
||
