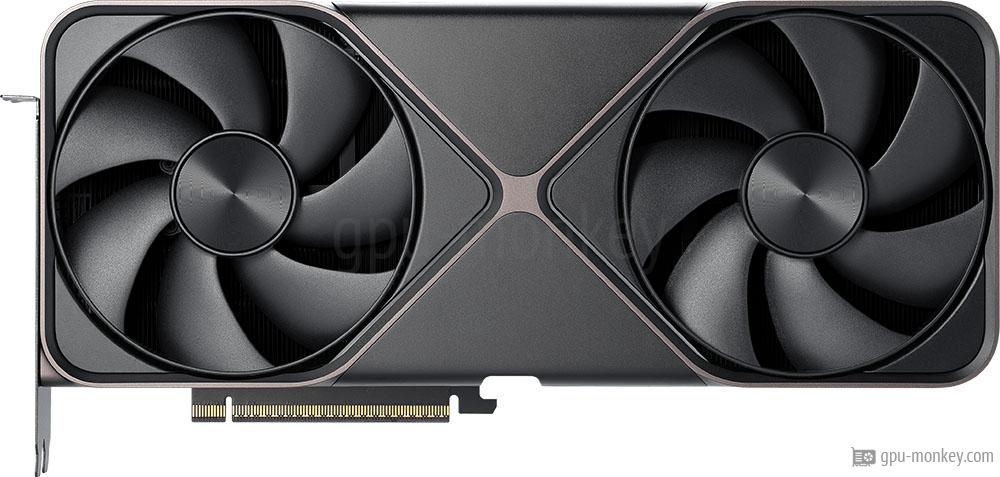

NVIDIA GeForce RTX 5090
NVIDIA 61 models Q1/2025

NVIDIA GeForce RTX 5090 GPU list 2026

We list 61 graphics cards based on the NVIDIA GeForce RTX 5090 (GB202-300-A1) with 32 GB GDDR7 – with benchmarks, clock speeds and technical data of all board partner models.

FP32
104.80TFLOPS
Boost Clock
2.41GHz
Memory
32GB GDDR7
TDP
575W
All models Check price on Amazon

GPUs based on NVIDIA GeForce RTX 5090

All board partner models sorted by FP32 performance. The percentage shows the deviation of the boost clock from the reference design.

Technical details

GPU

GPU Chip
GB202-300-A1 (Blackwell)
Streaming Multiprocessors
170
Shader
21760
Render Output Units
176
Texture Units
680
Raytracing Cores
170
FP32
104.80 TFLOPS

Memory

Memory Size
32 GB
Memory Type
GDDR7
Memory Clock
1.750 GHz
Memory Speed
28.0 Gbps
Memory bandwidth
1,792 GB/s
Memory Interface
512 bit

Clock Speeds

Base Clock
2.017 GHz
Boost Clock
2.407 GHz

Thermal Design

TDP
575 W
TDP (up)
600 W
Tjunction max
90 °C
GPU Interface
PCIe 5 x 16

Featureset

Max. Displays
4
Max. resolution
7680x4320
DirectX
12_2 (Ultimate)
Raytracing
Yes
DLSS / FSR
Yes
Structure size
5 nm

Supported Video Codecs

h264
Decode / Encode
h265 / HEVC
Decode / Encode
VP8
Decode / Encode
VP9
Decode / Encode
AV1
Decode / Encode
Launch Price
2,329 $

TOP 5 GPUs in group by FP32 performance

  1. 1MSI GeForce RTX 5090 LIGHTNING ZMSI GeForce RTX 5090 LIGHTNING Z32 GB GDDR7120.82TFLOPS
  2. 2GIGABYTE AORUS GeForce RTX 5090 INFINITYGIGABYTE AORUS GeForce RTX 5090 INFINITY32 GB GDDR7115.60TFLOPS
  3. 3GIGABYTE AORUS GeForce RTX 5090 MASTERGIGABYTE AORUS GeForce RTX 5090 MASTER32 GB GDDR7115.60TFLOPS
  4. 4GIGABYTE AORUS GeForce RTX 5090 MASTER ICEGIGABYTE AORUS GeForce RTX 5090 MASTER ICE32 GB GDDR7115.60TFLOPS
  5. 5GIGABYTE AORUS GeForce RTX 5090 STEALTH ICEGIGABYTE AORUS GeForce RTX 5090 STEALTH ICE32 GB GDDR7115.60TFLOPS

TOP 5 GPUs in group by maximum TDP

  1. 1MSI GeForce RTX 5090 LIGHTNING XMSI GeForce RTX 5090 LIGHTNING X32 GB GDDR71,000W
  2. 2MSI GeForce RTX 5090 LIGHTNING ZMSI GeForce RTX 5090 LIGHTNING Z32 GB GDDR71,000W
  3. 3MSI GeForce RTX 5090 SUPRIM SOCMSI GeForce RTX 5090 SUPRIM SOC32 GB GDDR7600W
  4. 4NVIDIA GeForce RTX 5090 Founders EditionNVIDIA GeForce RTX 5090 Founders Edition32 GB GDDR7600W
  5. 5Palit GeForce RTX 5090 GameRock OCPalit GeForce RTX 5090 GameRock OC32 GB GDDR7600W

Benchmark results

Average of gpu group

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    25,431
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    19,627
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    16,059
  4. AMD Radeon RX 7900 XTXAMD Radeon RX 7900 XTX24 GB GDDR6
    14,435

Steel Nomad Light Graphics score

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    54,489
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    43,163
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    34,689
  4. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    30,889

Steel Nomad Graphics score

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    13,978
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    10,298
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    8,099
  4. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    7,251

Port Royal (Raytracing)

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    35,994
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    26,070
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    21,967
  4. NVIDIA RTX 6000 AdaNVIDIA RTX 6000 Ada48 GB GDDR6
    20,019

Speed Way Graphics Score (Raytracing)

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    14,278
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    10,114
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    8,943
  4. NVIDIA RTX 6000 AdaNVIDIA RTX 6000 Ada48 GB GDDR6
    7,989

Solar Bay (Raytracing)

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    214,983
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    188,108
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    151,286
  4. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    138,398
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results

MonkeyBench 2026.3 · browser GPU test

Average of 13 public MonkeyBench results (WebGPU) for the NVIDIA GeForce RTX 5090.

2,231GPU points (Ø)
Rank 1 / 335 · in the MonkeyBench GPU ranking
MonkeyBench rankingView a typical result on CPU-Monkey ↗ Test your own GPU ↗
