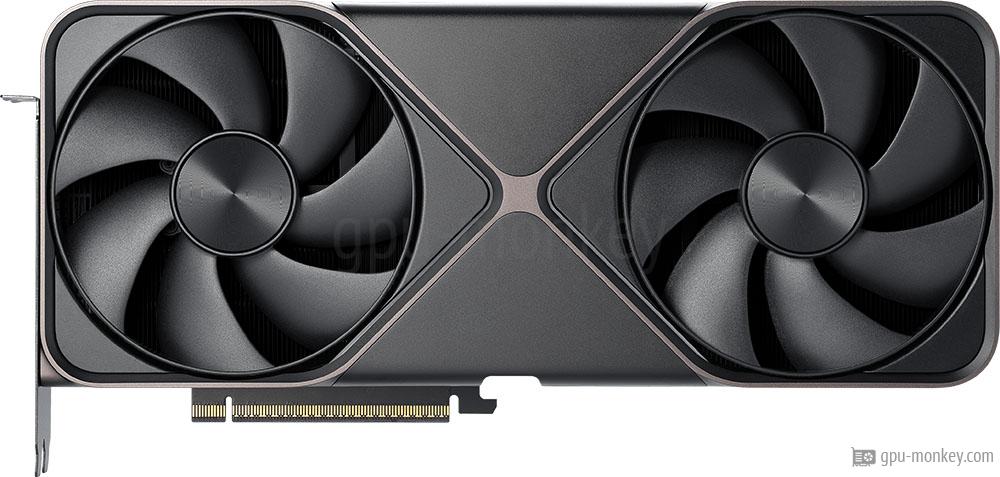

NVIDIA GeForce RTX 5080
NVIDIA 103 models Q1/2025

NVIDIA GeForce RTX 5080 GPU list 2026

We list 103 graphics cards based on the NVIDIA GeForce RTX 5080 (GB203-400-A1) with 16 GB GDDR7 – with benchmarks, clock speeds and technical data of all board partner models.

FP32
56.28TFLOPS
Boost Clock
2.62GHz
Memory
16GB GDDR7
TDP
360W
All models Check price on Amazon

GPUs based on NVIDIA GeForce RTX 5080

All board partner models sorted by FP32 performance. The percentage shows the deviation of the boost clock from the reference design.

Technical details

GPU

GPU Chip
GB203-400-A1 (Blackwell)
Streaming Multiprocessors
84
Shader
10752
Render Output Units
128
Texture Units
336
Raytracing Cores
84
FP32
56.28 TFLOPS

Memory

Memory Size
16 GB
Memory Type
GDDR7
Memory Clock
1.875 GHz
Memory Speed
30.0 Gbps
Memory bandwidth
960 GB/s
Memory Interface
256 bit

Clock Speeds

Base Clock
2.295 GHz
Boost Clock
2.617 GHz

Thermal Design

TDP
360 W
Tjunction max
88 °C
GPU Interface
PCIe 5 x 16

Featureset

Max. Displays
4
Max. resolution
7680x4320
DirectX
12_2 (Ultimate)
Raytracing
Yes
DLSS / FSR
Yes
Structure size
5 nm

Supported Video Codecs

h264
Decode / Encode
h265 / HEVC
Decode / Encode
VP8
Decode / Encode
VP9
Decode / Encode
AV1
Decode / Encode
Launch Price
1,169 $

TOP 5 GPUs in group by FP32 performance

  1. 1GIGABYTE AORUS GeForce RTX 5080 MASTERGIGABYTE AORUS GeForce RTX 5080 MASTER16 GB GDDR760.32TFLOPS
  2. 2GIGABYTE AORUS GeForce RTX 5080 MASTER ICEGIGABYTE AORUS GeForce RTX 5080 MASTER ICE16 GB GDDR760.32TFLOPS
  3. 3GIGABYTE AORUS GeForce RTX 5080 XTREME WATERFORCEGIGABYTE AORUS GeForce RTX 5080 XTREME WATERFORCE16 GB GDDR760.32TFLOPS
  4. 4GIGABYTE AORUS GeForce RTX 5080 XTREME WATERFORCE WBGIGABYTE AORUS GeForce RTX 5080 XTREME WATERFORCE WB16 GB GDDR760.32TFLOPS
  5. 5ASUS ROG Astral GeForce RTX 5080 Dhahab CORE OC EditionASUS ROG Astral GeForce RTX 5080 Dhahab CORE OC Edition16 GB GDDR760.00TFLOPS

TOP 5 GPUs in group by maximum TDP

  1. 1Colorful iGame GeForce RTX 5080 Neptune OCColorful iGame GeForce RTX 5080 Neptune OC16 GB GDDR7400W
  2. 2Colorful iGame GeForce RTX 5080 Vulcan OCColorful iGame GeForce RTX 5080 Vulcan OC16 GB GDDR7400W
  3. 3Colorful iGame GeForce RTX 5080 Vulcan W OCColorful iGame GeForce RTX 5080 Vulcan W OC16 GB GDDR7400W
  4. 4Colorful iGame GeForce RTX 5080 Advanced OCColorful iGame GeForce RTX 5080 Advanced OC16 GB GDDR7390W
  5. 5Colorful iGame GeForce RTX 5080 Ultra W OCColorful iGame GeForce RTX 5080 Ultra W OC16 GB GDDR7380W

Benchmark results

Average of gpu group

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    25,431
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    19,627
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    16,059
  4. AMD Radeon RX 7900 XTXAMD Radeon RX 7900 XTX24 GB GDDR6
    14,435
  5. NVIDIA RTX 6000 AdaNVIDIA RTX 6000 Ada48 GB GDDR6
    14,419
  6. NVIDIA GeForce RTX 4080NVIDIA GeForce RTX 408016 GB GDDR6X
    14,172

Steel Nomad Light Graphics score

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    54,489
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    43,163
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    34,689
  4. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    30,889
  5. NVIDIA GeForce RTX 4080NVIDIA GeForce RTX 408016 GB GDDR6X
    29,602
  6. NVIDIA GeForce RTX 5070 TINVIDIA GeForce RTX 5070 TI16 GB GDDR7
    28,968

Steel Nomad Graphics score

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    13,978
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    10,298
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    8,099
  4. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    7,251
  5. NVIDIA GeForce RTX 4080NVIDIA GeForce RTX 408016 GB GDDR6X
    7,069
  6. NVIDIA GeForce RTX 5070 TINVIDIA GeForce RTX 5070 TI16 GB GDDR7
    6,318

Port Royal (Raytracing)

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    35,994
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    26,070
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    21,967
  4. NVIDIA RTX 6000 AdaNVIDIA RTX 6000 Ada48 GB GDDR6
    20,019
  5. NVIDIA GeForce RTX 5070 TINVIDIA GeForce RTX 5070 TI16 GB GDDR7
    18,769
  6. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    18,301

Speed Way Graphics Score (Raytracing)

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    14,278
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    10,114
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    8,943
  4. NVIDIA RTX 6000 AdaNVIDIA RTX 6000 Ada48 GB GDDR6
    7,989
  5. NVIDIA GeForce RTX 5070 TINVIDIA GeForce RTX 5070 TI16 GB GDDR7
    7,626
  6. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    7,439

Solar Bay (Raytracing)

  1. NVIDIA GeForce RTX 5090NVIDIA GeForce RTX 509032 GB GDDR7
    214,983
  2. NVIDIA GeForce RTX 4090NVIDIA GeForce RTX 409024 GB GDDR6X
    188,108
  3. NVIDIA GeForce RTX 5080NVIDIA GeForce RTX 508016 GB GDDR7
    151,286
  4. NVIDIA GeForce RTX 4080 SUPERNVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X
    138,398
  5. NVIDIA GeForce RTX 4080NVIDIA GeForce RTX 408016 GB GDDR6X
    137,601
  6. NVIDIA GeForce RTX 5070 TINVIDIA GeForce RTX 5070 TI16 GB GDDR7
    129,401
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results

MonkeyBench 2026.3 · browser GPU test

Average of 19 public MonkeyBench results (WebGPU) for the NVIDIA GeForce RTX 5080.

1,265GPU points (Ø)
Rank 4 / 335 · in the MonkeyBench GPU ranking
