ASUS PRIME GeForce RTX 5070 OC Edition
vs

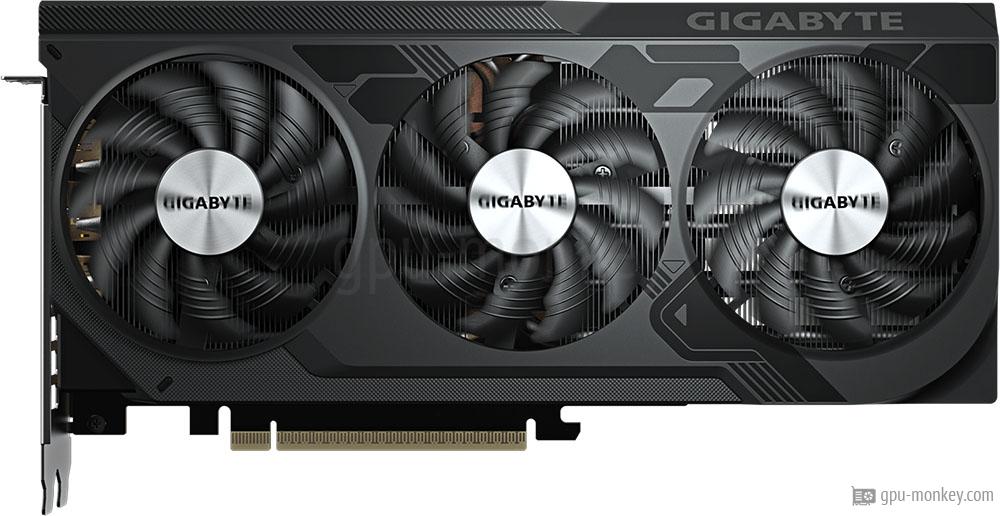

GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
GPU comparison with benchmarksThe ASUS PRIME GeForce RTX 5070 OC Edition is based on the NVIDIA GeForce RTX 5070 (Blackwell) and has 12 GB GDDR7 graphics memory with a bandwidth of 672 GB/s.
The GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 is based on the NVIDIA GeForce RTX 5070 TI (Blackwell) and has 16 GB GDDR7 graphics memory with a bandwidth of 896 GB/s. |
||
GPUThe ASUS PRIME GeForce RTX 5070 OC Edition has the GB205-300-A1 graphics chip installed, which is based on the Blackwell architecture. The GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 is based on the graphics chip GB203-200-A1, which comes from the Blackwell architecture. |
||
| ASUS PRIME GeForce RTX 5070 OC Edition | GPU | GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 |
| NVIDIA GeForce RTX 5070 | Based on | NVIDIA GeForce RTX 5070 TI |
| GB205-300-A1 | GPU Chip | GB203-200-A1 |
| Blackwell | Architecture | Blackwell |
| 48 | Streaming Multiprocessors | 70 |
| 6144 | Shader | 8960 |
| 64 | Render Output Units | 96 |
| 192 | Texture Units | 280 |
| 48 | Raytracing Cores | 70 |
MemoryThe graphics memory of the ASUS PRIME GeForce RTX 5070 OC Edition clocks at 1.750 GHz, which corresponds to a speed of 28.0 Gbps. The graphics memory speed of the GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 is 28.0 Gbps and the clock speed is 1.750 GHz. |
||
| 12 GB | Memory Size | 16 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 28.0 Gbps | Memory Speed | 28.0 Gbps |
| 672 GB/s | Memory bandwidth | 896 GB/s |
| 192 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 2.165 GHz | Base Clock | 2.295 GHz |
| 2.587 GHz | Boost Clock | 2.497 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe ASUS PRIME GeForce RTX 5070 OC Edition is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 250 W (Reference). The GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 300 W (Reference). |
||
| 250 W (Reference) | TDP | 300 W (Reference) |
| -- | TDP (up) | -- |
| 85 °C | Tjunction max | 88 °C |
| 1 x 16-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe ASUS PRIME GeForce RTX 5070 OC Edition is equipped with a total of 3 Axial main fans. The GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 2 x 85 mm |
| -- | Fan 2 | 1 x 80 mm |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the ASUS PRIME GeForce RTX 5070 OC Edition. The GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the ASUS PRIME GeForce RTX 5070 OC Edition it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe ASUS PRIME GeForce RTX 5070 OC Edition is connected to the system via PCIe 5 x 16 lanes and requires 3 PCIe-Slots space in the housing. The GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 needs the space of 3 PCIe-Slots in the case and has a PCIe 5 x 16 Lanes interface. |
||
| 304 mm | Length | 261 mm |
| 125 mm | Height | 126 mm |
| 50 mm | Width | 50 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 5 x 16 | GPU Interface | PCIe 5 x 16 |
| Yes | SFF-Ready | Yes |
Additional dataThe ASUS PRIME GeForce RTX 5070 OC Edition has been manufactured with a structure width of 5 nanometers since Q1/2025. The GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2 came on the market in Q4/2025 and will have a structure width of 5 nanometers manufactured. |
||
| PRIME-RTX5070-O12G | Part-no | GV-N507TWF3OCV2-16GD |
| Q1/2025 | Release date | Q4/2025 |
| 549 $ (Reference) | Launch Price | 749 $ (Reference) |
| 5 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
2.165 GHz, 12 GB (-- TDP)
Buy this graphic card at amazon!
2.295 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS PRIME GeForce RTX 5070 OC Edition
12 GB GDDR7 |
||
|
GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
16 GB GDDR7 |
||
Steel Nomad Light Graphics score
|
|
ASUS PRIME GeForce RTX 5070 OC Edition
12 GB GDDR7 |
||
|
|
GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
16 GB GDDR7 |
||
Steel Nomad Graphics score
|
|
ASUS PRIME GeForce RTX 5070 OC Edition
12 GB GDDR7 |
||
|
|
GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
16 GB GDDR7 |
||
Port Royal (Raytracing)
|
|
ASUS PRIME GeForce RTX 5070 OC Edition
12 GB GDDR7 |
||
|
|
GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
16 GB GDDR7 |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS PRIME GeForce RTX 5070 OC Edition
12 GB GDDR7 |
||
|
|
GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
16 GB GDDR7 |
||
Solar Bay (Raytracing)
|
|
ASUS PRIME GeForce RTX 5070 OC Edition
12 GB GDDR7 |
||
|
|
GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
16 GB GDDR7 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS PRIME GeForce RTX 5070 OC Edition
12 GB GDDR7 |
||
|
|
GIGABYTE GeForce RTX 5070 TI WINDFORCE OC V2
16 GB GDDR7 |
||
