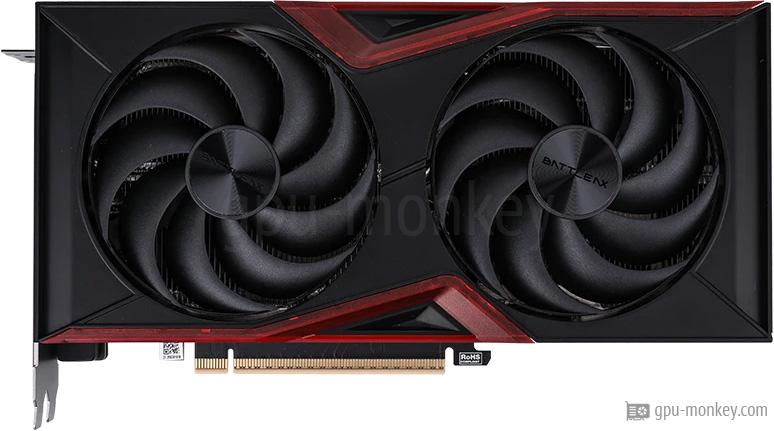

Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO
vs
Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC
GPU comparison with benchmarksIn the gpu comparison between the Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO and the Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO is based on the NVIDIA GeForce RTX 5060 TI 16GB and has 4608 texture shaders and 36 execution units. Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC is based on NVIDIA GeForce RTX 5060 TI 16GB, which has 4608 shaders and 36 execution units. |
||
| Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO | GPU | Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC |
| NVIDIA GeForce RTX 5060 TI 16GB | Based on | NVIDIA GeForce RTX 5060 TI 16GB |
| GB206 | GPU Chip | GB206 |
| Blackwell | Architecture | Blackwell |
| 36 | Streaming Multiprocessors | 36 |
| 4608 | Shader | 4608 |
| 48 | Render Output Units | 48 |
| 144 | Texture Units | 144 |
| 36 | Raytracing Cores | 36 |
MemoryThe Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO has 16 GB of graphics memory of the type GDDR7 and achieves a memory bandwidth of 448 GB/s. The Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC can access 16 GB GDDR7 graphics memory and thus achieves a memory bandwidth of 448 GB/s. |
||
| 16 GB | Memory Size | 16 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 28.0 Gbps | Memory Speed | 28.0 Gbps |
| 448 GB/s | Memory bandwidth | 448 GB/s |
| 128 bit | Memory Interface | 128 bit |
Clock SpeedsThe Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO clocks in the base with up to 2.407 GHz. The base frequency of the Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC is 2.407 GHz. |
||
| 2.407 GHz | Base Clock | 2.407 GHz |
| 2.572 GHz | Boost Clock | 2.632 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO is 180 W. The graphics card is supplied with energy via the 1 x 8-Pin connector. The Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC has a TDP of 180 W and is supplied with the required energy via 1 x 8-Pin PCIe power connectors. |
||
| 180 W | TDP | 180 W |
| -- | TDP (up) | -- |
| 85 °C | Tjunction max | 85 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO has a total of 2 Axial fans. The Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC has 2 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 90 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO. The Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO is 231 mm long, 120 mm high and 49 mm wide. The Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC is 231 mm long, 120 mm high and 49 mm wide. |
||
| 231 mm | Length | 231 mm |
| 120 mm | Height | 120 mm |
| 49 mm | Width | 49 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| 760 g | Weight | 750 g |
| PCIe 5 x 8 | GPU Interface | PCIe 5 x 8 |
| No | SFF-Ready | No |
Additional dataThe Colorful GeForce RTX 5060 Ti 16GB Battle AX DUO was released in Q2/2025 at a price of 429 $ (Reference). The Colorful iGame GeForce RTX 5060 Ti 16GB Ultra W DUO OC was introduced in Q2/2025 at a price of 429 $ (Reference). |
||
| -- | Part-no | -- |
| Q2/2025 | Release date | Q2/2025 |
| 429 $ (Reference) | Launch Price | 429 $ (Reference) |
| 4 nm | Structure size | 4 nm |
| data sheet | Documents | data sheet |
2.407 GHz, 16 GB (180 W TDP)
Buy this graphic card at amazon!
2.407 GHz, 16 GB (180 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
