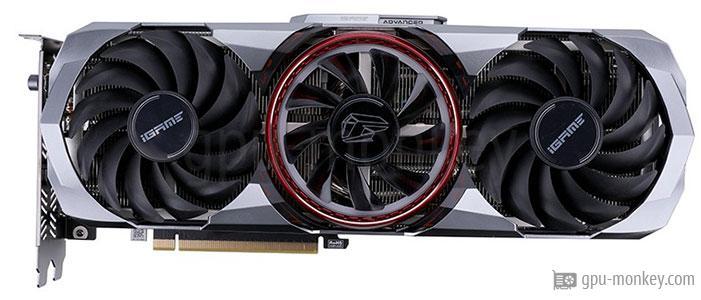

Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
vs
NVIDIA GeForce RTX 4060
GPU comparison with benchmarksThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V has 3584 shader units and these clock a maximum of 1.87 GHz which results in an FP32 computing power of 13.36 TFLOPS.
The NVIDIA GeForce RTX 4060 has 3072 shader units and these clock at a maximum of 2.46 GHz and achieve an FP32 computing power of 15.11 TFLOPS. |
||
GPUThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V is equipped with a graphics chip of the Ampere architecture, which has 28 streaming multiprocessors. The graphics card NVIDIA GeForce RTX 4060 is based on the Ada Lovelace architecture and is equipped with 24 execution units. |
||
| Colorful iGame GeForce RTX 3060 Advanced OC 12G-V | GPU | NVIDIA GeForce RTX 4060 |
| NVIDIA GeForce RTX 3060 | Based on | NVIDIA GeForce RTX 4060 |
| GA106-300-A1 | GPU Chip | AD107 |
| Ampere | Architecture | Ada Lovelace |
| 28 | Streaming Multiprocessors | 24 |
| 3584 | Shader | 3072 |
| 48 | Render Output Units | 48 |
| 112 | Texture Units | 96 |
| 28 | Raytracing Cores | 24 |
MemoryThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V is equipped with a 12 GB large GDDR6 graphics memory, which is equipped with 1.875 GHz clocks. The NVIDIA GeForce RTX 4060 has a 8 GB large GDDR6 graphics memory and the memory clock is 2.125GHz. |
||
| 12 GB | Memory Size | 8 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.875 GHz | Memory Clock | 2.125 GHz |
| 15.0 Gbps | Memory Speed | 17.0 Gbps |
| 360 GB/s | Memory bandwidth | 272 GB/s |
| 192 bit | Memory Interface | 128 bit |
Clock SpeedsThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V has a turbo clock of 1.867 GHz. The turbo frequency of the NVIDIA GeForce RTX 4060 is 2.460 GHz. |
||
| 1.320 GHz | Base Clock | 1.830 GHz |
| 1.867 GHz | Boost Clock | 2.460 GHz |
| 1.78 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V has 2 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The NVIDIA GeForce RTX 4060 is equipped with a 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 90 °C. |
||
| 220 W | TDP | 115 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 90 °C |
| 2 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the Colorful iGame GeForce RTX 3060 Advanced OC 12G-V are cooled with a Air cooling. The NVIDIA GeForce RTX 4060 is cooled by a Air cooling. |
||
| Axial | Fan-Type | -- |
| 2 x 90 mm | Fan 1 | -- |
| 1 x 80 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V supports the downward compatible copy protection HDCP in version 2.3. The NVIDIA GeForce RTX 4060 supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1a |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The NVIDIA GeForce RTX 4060 supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| iGame Energy Core | LED | No LED lighting |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode / Encode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe Colorful iGame GeForce RTX 3060 Advanced OC 12G-V is 53 mm wide and therefore needs the space of -- in the case. The width of the NVIDIA GeForce RTX 4060 is 53 mm and thus requires the space of -- in the PC case. |
||
| 316 mm | Length | -- |
| 131 mm | Height | -- |
| 53 mm | Width | -- |
| 3 PCIe-Slots | Width (Slots) | -- |
| 1800 g | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 8 |
| No | SFF-Ready | No |
Additional dataManufactured using the 8 nanometer process, Colorful iGame GeForce RTX 3060 Advanced OC 12G-V was released in Q1/2021. The NVIDIA GeForce RTX 4060 published in Q2/2023 is manufactured with a structure width of 5 nanometers. |
||
| -- | Part-no | -- |
| Q1/2021 | Release date | Q2/2023 |
| 329 $ (Reference) | Launch Price | 299 $ |
| 8 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
1.320 GHz, 12 GB (220 W TDP)
Buy this graphic card at amazon!
1.830 GHz, 8 GB (115 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Steel Nomad Light Graphics score
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Steel Nomad Graphics score
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Solar Bay (Raytracing)
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Colorful iGame GeForce RTX 3060 Advanced OC 12G-V
12 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 4060
8 GB GDDR6 |
||
