GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC
vs

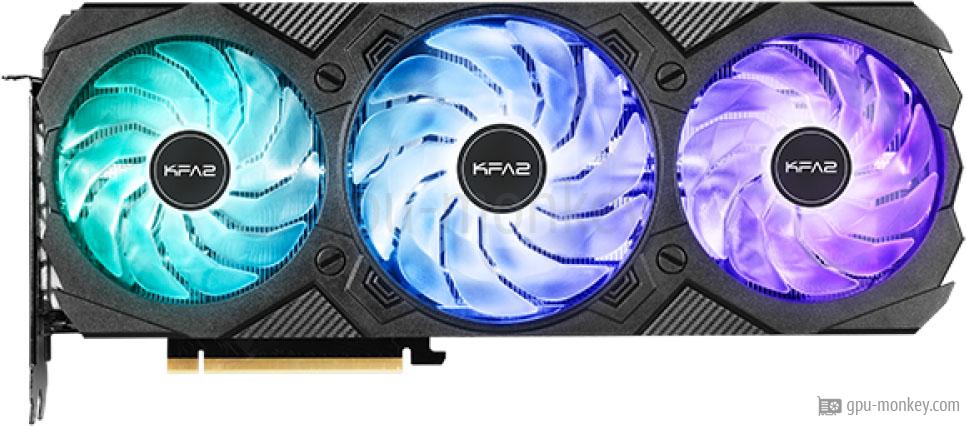

KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2
GPU comparison with benchmarksThe GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC is based on the NVIDIA GeForce RTX 5060 TI 16GB (Blackwell) and has 16 GB GDDR7 graphics memory with a bandwidth of 448 GB/s.
The KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 is based on the NVIDIA GeForce RTX 4070 Ti SUPER (Ada Lovelace) and has 16 GB GDDR6X graphics memory with a bandwidth of 672 GB/s. |
||
GPUThe GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC has the GB206 graphics chip installed, which is based on the Blackwell architecture. The KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 is based on the graphics chip AD103-275-A1, which comes from the Ada Lovelace architecture. |
||
| GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC | GPU | KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 |
| NVIDIA GeForce RTX 5060 TI 16GB | Based on | NVIDIA GeForce RTX 4070 Ti SUPER |
| GB206 | GPU Chip | AD103-275-A1 |
| Blackwell | Architecture | Ada Lovelace |
| 36 | Streaming Multiprocessors | 66 |
| 4608 | Shader | 8448 |
| 48 | Render Output Units | 96 |
| 144 | Texture Units | 264 |
| 36 | Raytracing Cores | 66 |
MemoryThe graphics memory of the GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC clocks at 1.750 GHz, which corresponds to a speed of 28.0 Gbps. The graphics memory speed of the KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 is 21.0 Gbps and the clock speed is 1.313 GHz. |
||
| 16 GB | Memory Size | 16 GB |
| GDDR7 | Memory Type | GDDR6X |
| 1.750 GHz | Memory Clock | 1.313 GHz |
| 28.0 Gbps | Memory Speed | 21.0 Gbps |
| 448 GB/s | Memory bandwidth | 672 GB/s |
| 128 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 2.407 GHz | Base Clock | 2.340 GHz |
| 2.617 GHz | Boost Clock | 2.655 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 180 W (Reference). The KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 285 W (Reference). |
||
| 180 W (Reference) | TDP | 285 W (Reference) |
| -- | TDP (up) | -- |
| 85 °C | Tjunction max | 90 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC is equipped with a total of 3 Axial main fans. The KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 80 mm | Fan 1 | 1 x 102 mm |
| -- | Fan 2 | 2 x 92 mm |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC. The KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1a |
| 3x DP v2.1b | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Non addressable LED | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode |
| Decode / Encode | VP8 | Decode |
| Decode / Encode | VP9 | Decode |
DimensionsThe GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC is connected to the system via PCIe 5 x 8 lanes and requires 2 PCIe-Slots space in the housing. The KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 281 mm | Length | 323 mm |
| 115 mm | Height | 131 mm |
| 40 mm | Width | 48 mm |
| 2 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 5 x 8 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC has been manufactured with a structure width of 4 nanometers since Q3/2025. The KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2 came on the market in Q2/2024 and will have a structure width of 5 nanometers manufactured. |
||
| GV-N506TEAGLEMAX OC-16GD | Part-no | 47UZM6MD7JDL |
| Q3/2025 | Release date | Q2/2024 |
| 429 $ (Reference) | Launch Price | 799 $ (Reference) |
| 4 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
2.407 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
2.340 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
Steel Nomad Light Graphics score
Steel Nomad Graphics score
Port Royal (Raytracing)
Speed Way Graphics Score (Raytracing)
Solar Bay (Raytracing)
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
2560x1440 (1440p)
1920x1080 (1080p)
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
2560x1440 (1440p)
1920x1080 (1080p)
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
2560x1440 (1440p)
1920x1080 (1080p)
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
Geekbench 6 - Vulkan
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
GIGABYTE GeForce RTX 5060 Ti 16GB EAGLE MAX OC
16 GB GDDR7 |
||
|
KFA2 GeForce RTX 4070 Ti SUPER EX Gamer 1-Click OC V2
16 GB GDDR6X |
||
