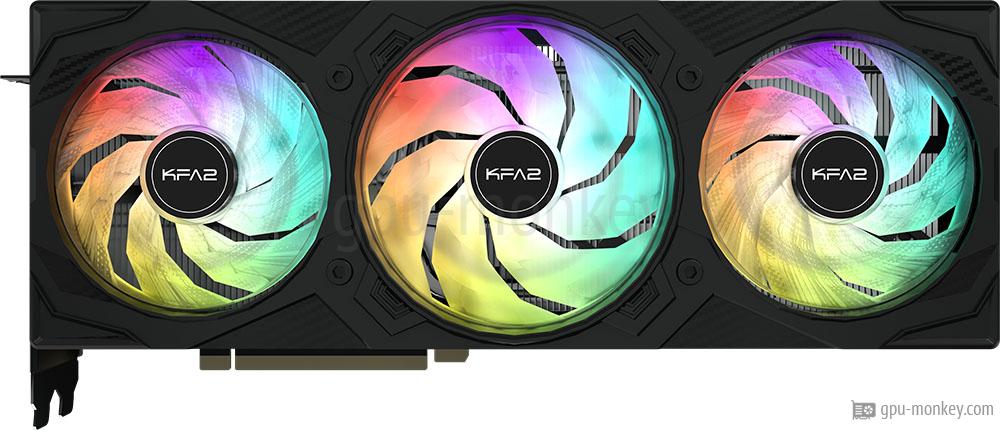

KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
vs
ZOTAC GAMING GeForce RTX 5080 SOLID OC
GPU comparison with benchmarksThe KFA2 GeForce RTX 5080 EX Gamer 1-Click OC is based on the NVIDIA GeForce RTX 5080 (Blackwell) and has 16 GB GDDR7 graphics memory with a bandwidth of 960 GB/s.
The ZOTAC GAMING GeForce RTX 5080 SOLID OC is based on the NVIDIA GeForce RTX 5080 (Blackwell) and has 16 GB GDDR7 graphics memory with a bandwidth of 960 GB/s. |
||
GPUThe KFA2 GeForce RTX 5080 EX Gamer 1-Click OC has the GB203-400-A1 graphics chip installed, which is based on the Blackwell architecture. The ZOTAC GAMING GeForce RTX 5080 SOLID OC is based on the graphics chip GB203-400-A1, which comes from the Blackwell architecture. |
||
| KFA2 GeForce RTX 5080 EX Gamer 1-Click OC | GPU | ZOTAC GAMING GeForce RTX 5080 SOLID OC |
| NVIDIA GeForce RTX 5080 | Based on | NVIDIA GeForce RTX 5080 |
| GB203-400-A1 | GPU Chip | GB203-400-A1 |
| Blackwell | Architecture | Blackwell |
| 84 | Streaming Multiprocessors | 84 |
| 10752 | Shader | 10752 |
| 128 | Render Output Units | 128 |
| 336 | Texture Units | 336 |
| 84 | Raytracing Cores | 84 |
MemoryThe graphics memory of the KFA2 GeForce RTX 5080 EX Gamer 1-Click OC clocks at 1.875 GHz, which corresponds to a speed of 30.0 Gbps. The graphics memory speed of the ZOTAC GAMING GeForce RTX 5080 SOLID OC is 30.0 Gbps and the clock speed is 1.875 GHz. |
||
| 16 GB | Memory Size | 16 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.875 GHz | Memory Clock | 1.875 GHz |
| 30.0 Gbps | Memory Speed | 30.0 Gbps |
| 960 GB/s | Memory bandwidth | 960 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 2.295 GHz | Base Clock | 2.295 GHz |
2.670 GHz + 2 % |
Boost Clock | 2.640 GHz+ 1 % |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe KFA2 GeForce RTX 5080 EX Gamer 1-Click OC is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 360 W (Reference). The ZOTAC GAMING GeForce RTX 5080 SOLID OC has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 360 W. |
||
| 360 W (Reference) | TDP | 360 W |
| -- | TDP (up) | -- |
| 88 °C | Tjunction max | 88 °C |
| 1 x 16-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe KFA2 GeForce RTX 5080 EX Gamer 1-Click OC is equipped with a total of 3 Axial main fans. The ZOTAC GAMING GeForce RTX 5080 SOLID OC has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 92 mm | Fan 1 | 3 x 100 mm |
| 1 x 102 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the KFA2 GeForce RTX 5080 EX Gamer 1-Click OC. The ZOTAC GAMING GeForce RTX 5080 SOLID OC supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the KFA2 GeForce RTX 5080 EX Gamer 1-Click OC it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the ZOTAC GAMING GeForce RTX 5080 SOLID OC is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | ZOTAC SPECTRA |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe KFA2 GeForce RTX 5080 EX Gamer 1-Click OC is connected to the system via PCIe 5 x 16 lanes and requires 3 PCIe-Slots space in the housing. The ZOTAC GAMING GeForce RTX 5080 SOLID OC needs the space of 4 PCIe-Slots in the case and has a PCIe 5 x 16 Lanes interface. |
||
| 322 mm | Length | 330 mm |
| 130 mm | Height | 138 mm |
| 52 mm | Width | 68 mm |
| 3 PCIe-Slots | Width (Slots) | 4 PCIe-Slots |
| -- | Weight | -- |
| PCIe 5 x 16 | GPU Interface | PCIe 5 x 16 |
| Yes | SFF-Ready | No |
Additional dataThe KFA2 GeForce RTX 5080 EX Gamer 1-Click OC has been manufactured with a structure width of 5 nanometers since Q1/2025. The ZOTAC GAMING GeForce RTX 5080 SOLID OC came on the market in Q1/2025 and will have a structure width of 5 nanometers manufactured. |
||
| -- | Part-no | ZT-B50800J-10P |
| Q1/2025 | Release date | Q1/2025 |
| 1,169 $ (Reference) | Launch Price | 1,169 $ (Reference) |
| 5 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
2.295 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
2.295 GHz, 16 GB (360 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
16 GB GDDR7 |
||
|
ZOTAC GAMING GeForce RTX 5080 SOLID OC
16 GB GDDR7 |
||
Steel Nomad Light Graphics score
|
|
KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
16 GB GDDR7 |
||
|
|
ZOTAC GAMING GeForce RTX 5080 SOLID OC
16 GB GDDR7 |
||
Steel Nomad Graphics score
|
|
KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
16 GB GDDR7 |
||
|
|
ZOTAC GAMING GeForce RTX 5080 SOLID OC
16 GB GDDR7 |
||
Port Royal (Raytracing)
|
|
KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
16 GB GDDR7 |
||
|
|
ZOTAC GAMING GeForce RTX 5080 SOLID OC
16 GB GDDR7 |
||
Speed Way Graphics Score (Raytracing)
|
|
KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
16 GB GDDR7 |
||
|
|
ZOTAC GAMING GeForce RTX 5080 SOLID OC
16 GB GDDR7 |
||
Solar Bay (Raytracing)
|
|
KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
16 GB GDDR7 |
||
|
|
ZOTAC GAMING GeForce RTX 5080 SOLID OC
16 GB GDDR7 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
KFA2 GeForce RTX 5080 EX Gamer 1-Click OC
16 GB GDDR7 |
||
|
|
ZOTAC GAMING GeForce RTX 5080 SOLID OC
16 GB GDDR7 |
||
