NVIDIA TITAN X Pascal
vs

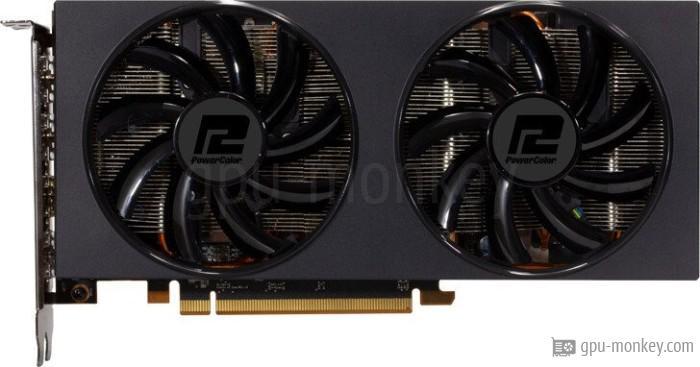

PowerColor Radeon RX 5700 OC
GPU comparison with benchmarksThe NVIDIA TITAN X Pascal is based on the NVIDIA TITAN X Pascal (Pascal) and has 12 GB GDDR5X graphics memory with a bandwidth of 480 GB/s.
The PowerColor Radeon RX 5700 OC is based on the AMD Radeon RX 5700 (RDNA 1) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s. |
||
GPUThe NVIDIA TITAN X Pascal has the GP102-400-A1 graphics chip installed, which is based on the Pascal architecture. The PowerColor Radeon RX 5700 OC is based on the graphics chip Navi 10, which comes from the RDNA 1 architecture. |
||
| NVIDIA TITAN X Pascal | GPU | PowerColor Radeon RX 5700 OC |
| NVIDIA TITAN X Pascal | Based on | AMD Radeon RX 5700 |
| GP102-400-A1 | GPU Chip | Navi 10 |
| Pascal | Architecture | RDNA 1 |
| 28 | Streaming Multiprocessors | 36 |
| 3584 | Shader | 2304 |
| 96 | Render Output Units | 64 |
| 224 | Texture Units | 144 |
| 0 | Raytracing Cores | 0 |
MemoryThe graphics memory of the NVIDIA TITAN X Pascal clocks at 1.251 GHz, which corresponds to a speed of 10.0 Gbps. The graphics memory speed of the PowerColor Radeon RX 5700 OC is 14.0 Gbps and the clock speed is 1.750 GHz. |
||
| 12 GB | Memory Size | 8 GB |
| GDDR5X | Memory Type | GDDR6 |
| 1.251 GHz | Memory Clock | 1.750 GHz |
| 10.0 Gbps | Memory Speed | 14.0 Gbps |
| 480 GB/s | Memory bandwidth | 448 GB/s |
| 384 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.417 GHz | Base Clock | 1.515 GHz |
| 1.531 GHz | Boost Clock | 1.750 GHz |
| Avg (Game) Clock | 1.68 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe NVIDIA TITAN X Pascal is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 250 W. The PowerColor Radeon RX 5700 OC has 1 x 6-Pin, 1 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 180 W. |
||
| 250 W | TDP | 180 W |
| -- | TDP (up) | 220 W |
| 94 °C | Tjunction max | 98 °C |
| 1 x 6-Pin, 1 x 8-Pin | PCIe-Power | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe NVIDIA TITAN X Pascal is equipped with a total of 1 Radial main fans. The PowerColor Radeon RX 5700 OC has 2 Axial main fans that cool the GPU and memory. |
||
| Radial | Fan-Type | Axial |
| 1 x 70 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | 43 dB |
ConnectivityUp to 4 screens can be operated with the NVIDIA TITAN X Pascal. The PowerColor Radeon RX 5700 OC supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.3 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
| 3x DP v1.4a | DP Ports | 3x DP v1.4 |
| 1 | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the NVIDIA TITAN X Pascal it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the PowerColor Radeon RX 5700 OC is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | No |
| No | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| No | AV1 | No |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode / Encode |
DimensionsThe NVIDIA TITAN X Pascal is connected to the system via PCIe 3.0 x 16 lanes and requires 2 PCIe-Slots space in the housing. The PowerColor Radeon RX 5700 OC needs the space of 2 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 267 mm | Length | 230 mm |
| 111 mm | Height | 112 mm |
| -- | Width | 41 mm |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe NVIDIA TITAN X Pascal has been manufactured with a structure width of 16 nanometers since Q3/2016. The PowerColor Radeon RX 5700 OC came on the market in Q3/2019 and will have a structure width of 7 nanometers manufactured. |
||
| 900-1G611-2500-000 | Part-no | -- |
| Q3/2016 | Release date | Q3/2019 |
| 1,199 $ (Reference) | Launch Price | 339 $ |
| 16 nm | Structure size | 7 nm |
| -- | Documents | data sheet |
1.417 GHz, 12 GB (250 W TDP)
Buy this graphic card at amazon!
1.515 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
NVIDIA TITAN X Pascal
12 GB GDDR5X |
||
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
NVIDIA TITAN X Pascal
12 GB GDDR5X |
||
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
NVIDIA TITAN X Pascal
12 GB GDDR5X |
||
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
Geekbench 6 - Metal
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
NVIDIA TITAN X Pascal
12 GB GDDR5X |
||
|
|
PowerColor Radeon RX 5700 OC
8 GB GDDR6 |
||
