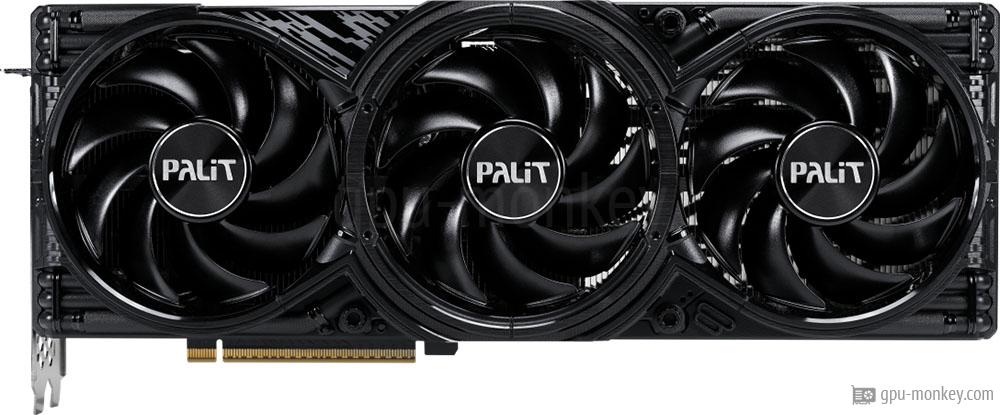

Palit GeForce RTX 5070 TI GamingPro-S
vs
Palit GeForce RTX 5070 Infinity 3 OC
GPU comparison with benchmarksThe Palit GeForce RTX 5070 TI GamingPro-S is based on the NVIDIA GeForce RTX 5070 TI (Blackwell) and has 16 GB GDDR7 graphics memory with a bandwidth of 896 GB/s.
The Palit GeForce RTX 5070 Infinity 3 OC is based on the NVIDIA GeForce RTX 5070 (Blackwell) and has 12 GB GDDR7 graphics memory with a bandwidth of 672 GB/s. |
||
GPUThe Palit GeForce RTX 5070 TI GamingPro-S has the GB203-200-A1 graphics chip installed, which is based on the Blackwell architecture. The Palit GeForce RTX 5070 Infinity 3 OC is based on the graphics chip GB205-300-A1, which comes from the Blackwell architecture. |
||
| Palit GeForce RTX 5070 TI GamingPro-S | GPU | Palit GeForce RTX 5070 Infinity 3 OC |
| NVIDIA GeForce RTX 5070 TI | Based on | NVIDIA GeForce RTX 5070 |
| GB203-200-A1 | GPU Chip | GB205-300-A1 |
| Blackwell | Architecture | Blackwell |
| 70 | Streaming Multiprocessors | 48 |
| 8960 | Shader | 6144 |
| 96 | Render Output Units | 64 |
| 280 | Texture Units | 192 |
| 70 | Raytracing Cores | 48 |
MemoryThe graphics memory of the Palit GeForce RTX 5070 TI GamingPro-S clocks at 1.750 GHz, which corresponds to a speed of 28.0 Gbps. The graphics memory speed of the Palit GeForce RTX 5070 Infinity 3 OC is 28.0 Gbps and the clock speed is 1.750 GHz. |
||
| 16 GB | Memory Size | 12 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 28.0 Gbps | Memory Speed | 28.0 Gbps |
| 896 GB/s | Memory bandwidth | 672 GB/s |
| 256 bit | Memory Interface | 192 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 2.295 GHz | Base Clock | 2.165 GHz |
| 2.452 GHz | Boost Clock | 2.542 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe Palit GeForce RTX 5070 TI GamingPro-S is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 300 W. The Palit GeForce RTX 5070 Infinity 3 OC has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 250 W. |
||
| 300 W | TDP | 250 W |
| -- | TDP (up) | -- |
| 88 °C | Tjunction max | 85 °C |
| 1 x 16-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe Palit GeForce RTX 5070 TI GamingPro-S is equipped with a total of 3 Axial main fans. The Palit GeForce RTX 5070 Infinity 3 OC has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 100 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the Palit GeForce RTX 5070 TI GamingPro-S. The Palit GeForce RTX 5070 Infinity 3 OC supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the Palit GeForce RTX 5070 TI GamingPro-S it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the Palit GeForce RTX 5070 Infinity 3 OC is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe Palit GeForce RTX 5070 TI GamingPro-S is connected to the system via PCIe 5 x 16 lanes and requires 3 PCIe-Slots space in the housing. The Palit GeForce RTX 5070 Infinity 3 OC needs the space of 2 PCIe-Slots in the case and has a PCIe 5 x 16 Lanes interface. |
||
| 332 mm | Length | 292 mm |
| 127 mm | Height | 117 mm |
| 50 mm | Width | 41 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 5 x 16 | GPU Interface | PCIe 5 x 16 |
| No | SFF-Ready | Yes |
Additional dataThe Palit GeForce RTX 5070 TI GamingPro-S has been manufactured with a structure width of 5 nanometers since Q2/2025. The Palit GeForce RTX 5070 Infinity 3 OC came on the market in Q2/2025 and will have a structure width of 5 nanometers manufactured. |
||
| NE7507T019T2-GB2031U | Part-no | NE75070S19K9-GB2050S |
| Q2/2025 | Release date | Q2/2025 |
| 749 $ (Reference) | Launch Price | 549 $ (Reference) |
| 5 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
2.295 GHz, 16 GB (300 W TDP)
Buy this graphic card at amazon!
2.165 GHz, 12 GB (250 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Palit GeForce RTX 5070 TI GamingPro-S
16 GB GDDR7 |
||
|
|
Palit GeForce RTX 5070 Infinity 3 OC
12 GB GDDR7 |
||
Steel Nomad Light Graphics score
|
|
Palit GeForce RTX 5070 TI GamingPro-S
16 GB GDDR7 |
||
|
|
Palit GeForce RTX 5070 Infinity 3 OC
12 GB GDDR7 |
||
Steel Nomad Graphics score
|
|
Palit GeForce RTX 5070 TI GamingPro-S
16 GB GDDR7 |
||
|
|
Palit GeForce RTX 5070 Infinity 3 OC
12 GB GDDR7 |
||
Port Royal (Raytracing)
|
|
Palit GeForce RTX 5070 TI GamingPro-S
16 GB GDDR7 |
||
|
|
Palit GeForce RTX 5070 Infinity 3 OC
12 GB GDDR7 |
||
Speed Way Graphics Score (Raytracing)
|
|
Palit GeForce RTX 5070 TI GamingPro-S
16 GB GDDR7 |
||
|
|
Palit GeForce RTX 5070 Infinity 3 OC
12 GB GDDR7 |
||
Solar Bay (Raytracing)
|
|
Palit GeForce RTX 5070 TI GamingPro-S
16 GB GDDR7 |
||
|
|
Palit GeForce RTX 5070 Infinity 3 OC
12 GB GDDR7 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Palit GeForce RTX 5070 TI GamingPro-S
16 GB GDDR7 |
||
|
|
Palit GeForce RTX 5070 Infinity 3 OC
12 GB GDDR7 |
||
