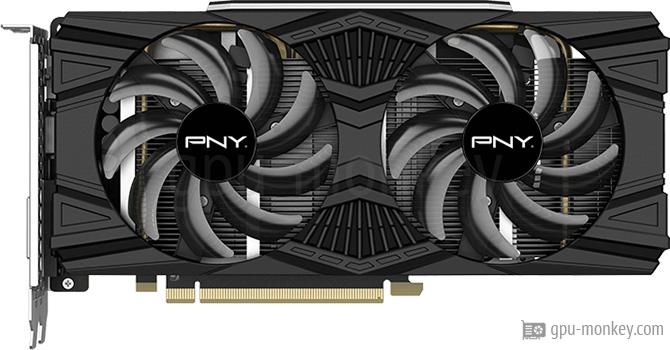

PNY GeForce GTX 1660 SUPER 6GB Dual Fan
vs
AMD Radeon RX 6700 XT
GPU comparison with benchmarksThe PNY GeForce GTX 1660 SUPER 6GB Dual Fan is based on the NVIDIA GeForce GTX 1660 SUPER (Turing) and has 6 GB GDDR6 graphics memory with a bandwidth of 336 GB/s.
The AMD Radeon RX 6700 XT is based on the AMD Radeon RX 6700 XT (RDNA 2) and has 12 GB GDDR6 graphics memory with a bandwidth of 384 GB/s. |
||
GPUThe PNY GeForce GTX 1660 SUPER 6GB Dual Fan has the TU116-300-A1 graphics chip installed, which is based on the Turing architecture. The AMD Radeon RX 6700 XT is based on the graphics chip Navi 22 XT, which comes from the RDNA 2 architecture. |
||
| PNY GeForce GTX 1660 SUPER 6GB Dual Fan | GPU | AMD Radeon RX 6700 XT |
| NVIDIA GeForce GTX 1660 SUPER | Based on | AMD Radeon RX 6700 XT |
| TU116-300-A1 | GPU Chip | Navi 22 XT |
| Turing | Architecture | RDNA 2 |
| 22 | Streaming Multiprocessors | 40 |
| 1408 | Shader | 2560 |
| 48 | Render Output Units | 64 |
| 88 | Texture Units | 160 |
| 0 | Raytracing Cores | 40 |
MemoryThe graphics memory of the PNY GeForce GTX 1660 SUPER 6GB Dual Fan clocks at 1.750 GHz, which corresponds to a speed of 14.0 Gbps. The graphics memory speed of the AMD Radeon RX 6700 XT is 16.0 Gbps and the clock speed is 2.000 GHz. |
||
| 6 GB | Memory Size | 12 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 2.000 GHz |
| 14.0 Gbps | Memory Speed | 16.0 Gbps |
| 336 GB/s | Memory bandwidth | 384 GB/s |
| 192 bit | Memory Interface | 192 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.530 GHz | Base Clock | 2.321 GHz |
| 1.785 GHz | Boost Clock | 2.581 GHz |
| Avg (Game) Clock | 2.42 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe PNY GeForce GTX 1660 SUPER 6GB Dual Fan is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 125 W. The AMD Radeon RX 6700 XT has 1 x 6-Pin, 1 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 230 W. |
||
| 125 W | TDP | 230 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 100 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe PNY GeForce GTX 1660 SUPER 6GB Dual Fan is equipped with a total of 2 Axial main fans. The AMD Radeon RX 6700 XT has 0 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 90 mm | Fan 1 | -- |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 3 screens can be operated with the PNY GeForce GTX 1660 SUPER 6GB Dual Fan. The AMD Radeon RX 6700 XT supports the operation of a maximum of 4 monitors. |
||
| 3 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.3 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.1 |
| 1x DP v1.4 | DP Ports | 3x DP v1.4a |
| 1 | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the PNY GeForce GTX 1660 SUPER 6GB Dual Fan it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the AMD Radeon RX 6700 XT is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| No | AV1 | Decode |
| Decode | VP8 | Decode / Encode |
| Decode | VP9 | Decode / Encode |
DimensionsThe PNY GeForce GTX 1660 SUPER 6GB Dual Fan is connected to the system via PCIe 3.0 x 16 lanes and requires 2 PCIe-Slots space in the housing. The AMD Radeon RX 6700 XT needs the space of 2 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 236 mm | Length | -- |
| 112 mm | Height | -- |
| 35 mm | Width | -- |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe PNY GeForce GTX 1660 SUPER 6GB Dual Fan has been manufactured with a structure width of 12 nanometers since Q2/2022. The AMD Radeon RX 6700 XT came on the market in Q1/2021 and will have a structure width of 7 nanometers manufactured. |
||
| VCG16606SDFPPB1 | Part-no | -- |
| Q2/2022 | Release date | Q1/2021 |
| 229 $ (Reference) | Launch Price | 479 $ (Reference) |
| 12 nm | Structure size | 7 nm |
| data sheet | Documents | data sheet |
1.530 GHz, 6 GB (125 W TDP)
Buy this graphic card at amazon!
2.321 GHz, 12 GB (230 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
2560x1440 (1440p)
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
2560x1440 (1440p)
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
Geekbench 6 - Metal
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
PNY GeForce GTX 1660 SUPER 6GB Dual Fan
6 GB GDDR6 |
||
|
|
AMD Radeon RX 6700 XT
12 GB GDDR6 |
||
