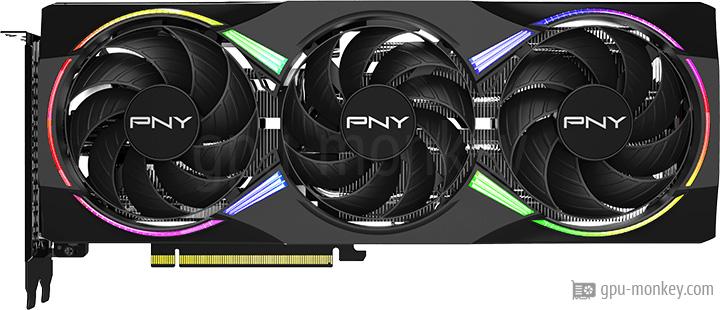

PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan
vs
ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition
GPU comparison with benchmarksThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan has 4608 shader units and these clock a maximum of 2.57 GHz which results in an FP32 computing power of 25.32 TFLOPS.
The ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition has 4608 shader units and these clock at a maximum of 2.69 GHz and achieve an FP32 computing power of 26.51 TFLOPS. |
||
GPUThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan is equipped with a graphics chip of the Blackwell architecture, which has 36 streaming multiprocessors. The graphics card ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition is based on the Blackwell architecture and is equipped with 36 execution units. |
||
| PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan | GPU | ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition |
| NVIDIA GeForce RTX 5060 TI 16GB | Based on | NVIDIA GeForce RTX 5060 TI 16GB |
| GB206 | GPU Chip | GB206 |
| Blackwell | Architecture | Blackwell |
| 36 | Streaming Multiprocessors | 36 |
| 4608 | Shader | 4608 |
| 48 | Render Output Units | 48 |
| 144 | Texture Units | 144 |
| 36 | Raytracing Cores | 36 |
MemoryThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan is equipped with a 16 GB large GDDR7 graphics memory, which is equipped with 1.750 GHz clocks. The ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition has a 16 GB large GDDR7 graphics memory and the memory clock is 1.750GHz. |
||
| 16 GB | Memory Size | 16 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 28.0 Gbps | Memory Speed | 28.0 Gbps |
| 448 GB/s | Memory bandwidth | 448 GB/s |
| 128 bit | Memory Interface | 128 bit |
Clock SpeedsThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan has a turbo clock of 2.572 GHz. The turbo frequency of the ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition is 2.692 GHz. |
||
| 2.407 GHz | Base Clock | 2.407 GHz |
| 2.572 GHz | Boost Clock | 2.692 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan has 1 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 85 °C. The ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition is equipped with a 1 x 16-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 85 °C. |
||
| 180 W | TDP | 180 W (Reference) |
| -- | TDP (up) | -- |
| 85 °C | Tjunction max | 85 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe graphics processor and graphics memory of the PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan are cooled with a Air cooling. The ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 80 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan supports the downward compatible copy protection HDCP in version 2.3. The ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | ASUS Aura Sync |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan is 40 mm wide and therefore needs the space of 4 PCIe-Slots in the case. The width of the ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition is 40 mm and thus requires the space of 4 PCIe-Slots in the PC case. |
||
| 299 mm | Length | 302 mm |
| 120 mm | Height | 134 mm |
| 40 mm | Width | 62 mm |
| 2 PCIe-Slots | Width (Slots) | 4 PCIe-Slots |
| -- | Weight | -- |
| PCIe 5 x 8 | GPU Interface | PCIe 5 x 8 |
| No | SFF-Ready | No |
Additional dataManufactured using the 4 nanometer process, PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan was released in Q2/2025. The ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition published in Q2/2025 is manufactured with a structure width of 4 nanometers. |
||
| VCG5060T16TFXXPB1 | Part-no | TUF-RTX5060TI-O16G-GAMING |
| Q2/2025 | Release date | Q2/2025 |
| 429 $ (Reference) | Launch Price | 429 $ (Reference) |
| 4 nm | Structure size | 4 nm |
| data sheet | Documents | data sheet |
2.407 GHz, 16 GB (180 W TDP)
Buy this graphic card at amazon!
2.407 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
PNY GeForce RTX 5060 Ti 16GB ARGB Triple Fan
16 GB GDDR7 |
||
|
ASUS TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition
16 GB GDDR7 |
||
