ZOTAC GAMING GeForce RTX 5070 SOLID
vs

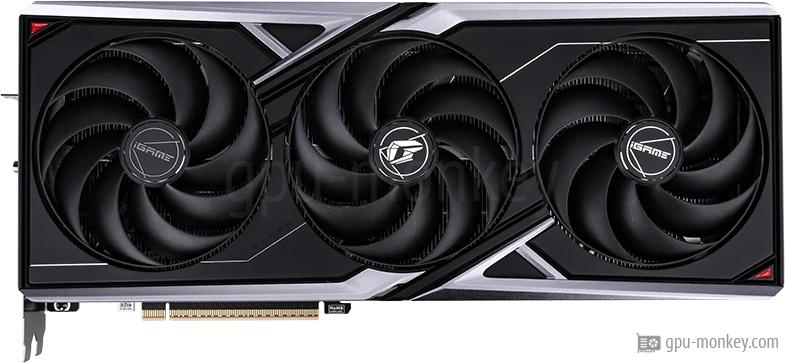

Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
GPU comparison with benchmarksIn the gpu comparison between the ZOTAC GAMING GeForce RTX 5070 SOLID and the Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe ZOTAC GAMING GeForce RTX 5070 SOLID is based on the NVIDIA GeForce RTX 5070 and has 6144 texture shaders and 48 execution units. Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V is based on NVIDIA GeForce RTX 5070, which has 6144 shaders and 48 execution units. |
||
| ZOTAC GAMING GeForce RTX 5070 SOLID | GPU | Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V |
| NVIDIA GeForce RTX 5070 | Based on | NVIDIA GeForce RTX 5070 |
| GB205-300-A1 | GPU Chip | GB205-300-A1 |
| Blackwell | Architecture | Blackwell |
| 48 | Streaming Multiprocessors | 48 |
| 6144 | Shader | 6144 |
| 64 | Render Output Units | 64 |
| 192 | Texture Units | 192 |
| 48 | Raytracing Cores | 48 |
MemoryThe ZOTAC GAMING GeForce RTX 5070 SOLID has 12 GB of graphics memory of the type GDDR7 and achieves a memory bandwidth of 672 GB/s. The Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V can access 12 GB GDDR7 graphics memory and thus achieves a memory bandwidth of 672 GB/s. |
||
| 12 GB | Memory Size | 12 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 28.0 Gbps | Memory Speed | 28.0 Gbps |
| 672 GB/s | Memory bandwidth | 672 GB/s |
| 192 bit | Memory Interface | 192 bit |
Clock SpeedsThe ZOTAC GAMING GeForce RTX 5070 SOLID clocks in the base with up to 2.165 GHz. The base frequency of the Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V is 2.325 GHz  + 7 %. |
||
| 2.165 GHz | Base Clock | 2.325 GHz+ 7 % |
| 2.512 GHz | Boost Clock | 2.587 GHz+ 3 % |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ZOTAC GAMING GeForce RTX 5070 SOLID is 250 W. The graphics card is supplied with energy via the 1 x 16-Pin connector. The Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V has a TDP of 270 W + 8 % and is supplied with the required energy via 1 x 16-Pin PCIe power connectors. |
||
| 250 W | TDP | 270 W+ 8 % |
| -- | TDP (up) | -- |
| 85 °C | Tjunction max | 85 °C |
| 1 x 16-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe ZOTAC GAMING GeForce RTX 5070 SOLID has a total of 3 Axial fans. The Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 3 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the ZOTAC GAMING GeForce RTX 5070 SOLID. The Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ZOTAC GAMING GeForce RTX 5070 SOLID supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ZOTAC SPECTRA | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe ZOTAC GAMING GeForce RTX 5070 SOLID is 304 mm long, 116 mm high and 42 mm wide. The Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V is 336 mm long, 145 mm high and 63 mm wide. |
||
| 304 mm | Length | 336 mm |
| 116 mm | Height | 145 mm |
| 42 mm | Width | 63 mm |
| 2 PCIe-Slots | Width (Slots) | 4 PCIe-Slots |
| -- | Weight | 2100 g |
| PCIe 5 x 16 | GPU Interface | PCIe 5 x 16 |
| Yes | SFF-Ready | No |
Additional dataThe ZOTAC GAMING GeForce RTX 5070 SOLID was released in Q2/2025 at a price of 549 $ (Reference). The Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V was introduced in Q2/2025 at a price of 549 $ (Reference). |
||
| ZT-B50700D-10P | Part-no | -- |
| Q2/2025 | Release date | Q2/2025 |
| 549 $ (Reference) | Launch Price | 549 $ (Reference) |
| 5 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
2.165 GHz, 12 GB (250 W TDP)
Buy this graphic card at amazon!
2.325 GHz, 12 GB (270 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ZOTAC GAMING GeForce RTX 5070 SOLID
12 GB GDDR7 |
||
|
Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
12 GB GDDR7 |
||
Steel Nomad Light Graphics score
|
|
ZOTAC GAMING GeForce RTX 5070 SOLID
12 GB GDDR7 |
||
|
|
Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
12 GB GDDR7 |
||
Steel Nomad Graphics score
|
|
ZOTAC GAMING GeForce RTX 5070 SOLID
12 GB GDDR7 |
||
|
|
Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
12 GB GDDR7 |
||
Port Royal (Raytracing)
|
|
ZOTAC GAMING GeForce RTX 5070 SOLID
12 GB GDDR7 |
||
|
|
Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
12 GB GDDR7 |
||
Speed Way Graphics Score (Raytracing)
|
|
ZOTAC GAMING GeForce RTX 5070 SOLID
12 GB GDDR7 |
||
|
|
Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
12 GB GDDR7 |
||
Solar Bay (Raytracing)
|
|
ZOTAC GAMING GeForce RTX 5070 SOLID
12 GB GDDR7 |
||
|
|
Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
12 GB GDDR7 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ZOTAC GAMING GeForce RTX 5070 SOLID
12 GB GDDR7 |
||
|
|
Colorful iGame GeForce RTX 5070 Vulcan OC 12GB-V
12 GB GDDR7 |
||
