ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA)
vs

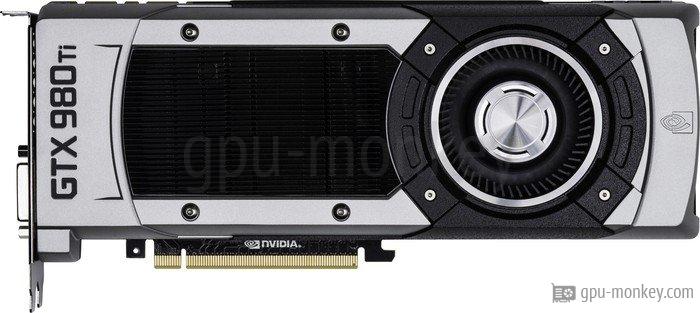

Gainward GeForce GTX 980 Ti
GPU comparison with benchmarksThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) has 384 shader units and these clock a maximum of 1.47 GHz which results in an FP32 computing power of 1.13 TFLOPS.
The Gainward GeForce GTX 980 Ti has 2816 shader units and these clock at a maximum of 1.08 GHz and achieve an FP32 computing power of 6.06 TFLOPS. |
||
GPUThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) is equipped with a graphics chip of the Pascal architecture, which has 3 streaming multiprocessors. The graphics card Gainward GeForce GTX 980 Ti is based on the Maxwell 2.0 architecture and is equipped with 22 execution units. |
||
| ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) | GPU | Gainward GeForce GTX 980 Ti |
| NVIDIA GeForce GT 1030 | Based on | NVIDIA GeForce GTX 980 Ti |
| GP108-300-A1 | GPU Chip | GM200-310-A1 |
| Pascal | Architecture | Maxwell 2.0 |
| 3 | Streaming Multiprocessors | 22 |
| 384 | Shader | 2816 |
| 16 | Render Output Units | 96 |
| 24 | Texture Units | 176 |
| 0 | Raytracing Cores | 0 |
MemoryThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) is equipped with a 2 GB large GDDR5 graphics memory, which is equipped with 1.502 GHz clocks. The Gainward GeForce GTX 980 Ti has a 6 GB large GDDR5 graphics memory and the memory clock is 1.753GHz. |
||
| 2 GB | Memory Size | 6 GB |
| GDDR5 | Memory Type | GDDR5 |
| 1.502 GHz | Memory Clock | 1.753 GHz |
| 6.0 Gbps | Memory Speed | 7.0 Gbps |
| 48 GB/s | Memory bandwidth | 337 GB/s |
| 64 bit | Memory Interface | 384 bit |
Clock SpeedsThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) has a turbo clock of 1.468 GHz. The turbo frequency of the Gainward GeForce GTX 980 Ti is 1.076 GHz. |
||
| 1.227 GHz | Base Clock | 1.000 GHz |
| 1.468 GHz | Boost Clock | 1.076 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) has connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 97 °C. The Gainward GeForce GTX 980 Ti is equipped with a 1 x 6-Pin, 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 91 °C. |
||
| 30 W | TDP | 250 W |
| -- | TDP (up) | -- |
| 97 °C | Tjunction max | 91 °C |
| PCIe-Power | 1 x 6-Pin, 1 x 8-Pin | |
Cooler & FansThe graphics processor and graphics memory of the ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) are cooled with a Air cooling. The Gainward GeForce GTX 980 Ti is cooled by a Air cooling. |
||
| Axial | Fan-Type | Radial |
| 1 x 40 mm | Fan 1 | 1 x 65 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 0 dB | Noise (Load) | -- |
ConnectivityThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) supports the downward compatible copy protection HDCP in version 2.2. The Gainward GeForce GTX 980 Ti supports HDCP in version 2.2 and all previous versions. |
||
| 2 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.2 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0 |
| -- | DP Ports | 3x DP v1.2 |
| -- | DVI Ports | 1 |
| 1 | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) supports the DirectX standard from Microsoft in version 12_1. The Gainward GeForce GTX 980 Ti supports Microsoft's DirectX version 12_1. |
||
| 7680x4320 | Max. resolution | 4096x2160 |
| 12_1 | DirectX | 12_1 |
| No | Raytracing | No |
| Yes | DLSS / FSR | No |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode | h264 | Decode / Encode |
| Decode | h265 / HEVC | No |
| No | AV1 | No |
| No | VP8 | Decode |
| Decode | VP9 | No |
DimensionsThe ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) is 16 mm wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the Gainward GeForce GTX 980 Ti is 16 mm and thus requires the space of 2 PCIe-Slots in the PC case. |
||
| 173 mm | Length | 267 mm |
| 111 mm | Height | 112 mm |
| 16 mm | Width | -- |
| 1 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 4 | GPU Interface | PCIe 3 x 16 |
| No | SFF-Ready | No |
Additional dataManufactured using the 14 nanometer process, ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA) was released in Q3/2017. The Gainward GeForce GTX 980 Ti published in Q2/2015 is manufactured with a structure width of 28 nanometers. |
||
| ZT-P10300E-10L | Part-no | 426018336-3446 |
| Q3/2017 | Release date | Q2/2015 |
| 79 $ (Reference) | Launch Price | 649 $ (Reference) |
| 14 nm | Structure size | 28 nm |
| data sheet | Documents | data sheet |
1.227 GHz, 2 GB (30 W TDP)
Buy this graphic card at amazon!
1.000 GHz, 6 GB (250 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA)
2 GB GDDR5 |
||
|
Gainward GeForce GTX 980 Ti
6 GB GDDR5 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA)
2 GB GDDR5 |
||
2560x1440 (1440p)
|
|
ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA)
2 GB GDDR5 |
||
1920x1080 (1080p)
|
|
ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA)
2 GB GDDR5 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Gainward GeForce GTX 980 Ti
6 GB GDDR5 |
||
Geekbench 6 - Vulkan
|
|
Gainward GeForce GTX 980 Ti
6 GB GDDR5 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ZOTAC GeForce GT 1030 Low Profile (HDMI/VGA)
2 GB GDDR5 |
||
|
|
Gainward GeForce GTX 980 Ti
6 GB GDDR5 |
||
