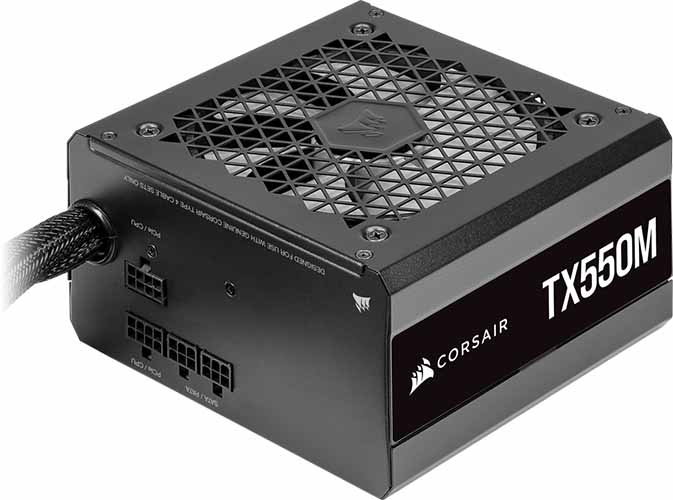

Corsair TX-M Series TX550M 2021 - 550 W
Power |
|
| Output Power: | 550 W |
| 80 Plus Certification: | 80 PLUS Gold |
| Efficiency @ 115V/50%: | ≥ 90 % |
| Efficiency @ 230V/50%: | ≥ 92 % |
| Input Voltage: | 100-240 Vac |
| Input Frequency: | 50/60 Hz |
Connectors |
|
| Cable Management: | Yes |
| ATX 24-Pin: | 1 x |
| EPS CPU (P4/P8): | 2 x |
| PCIe 8 Pin (6+2): | 2 x |
| SATA: | 3 x |
| PATA (4-Pin IDE): | 4 x |
Dimensions |
|
| Form Factor: | ATX |
| Length: | 140 mm |
| Height: | 86 mm |
| Width: | 150 mm |
Device |
|
| Manufacturer: | Corsair |
| Series: | TX-M |
| Part-no: | CP-9020228 |
| Launch Price: | 82 $ |
Additional data |
|
| Fan: | 140 mm |
| RGB Fan: | No |
| Warranty: | 7 Years |
| Release date: | Q3/2021 |
| Documents: | data sheet |
Power Supply recommended for this Graphics Cards
| GPU | TDP | ||
|
AMD Radeon RX 7700 XT | 200 W | |
|
NVIDIA GeForce RTX 3060 Ti | 200 W | |
|
|
NVIDIA GeForce RTX 3060 Ti LHR | 200 W | |
|
|
NVIDIA GeForce RTX 4070 | 200 W | |
|
|
NVIDIA RTX A4500 | 200 W | |
|
|
AMD Radeon RX 580 (36 CU) | 185 W | |
|
|
NVIDIA GeForce RTX 2060 12GB | 185 W | |
|
|
AMD Radeon RX 5700 | 180 W | |
|
|
NVIDIA GeForce GTX 1070 Ti | 180 W | |
|
|
NVIDIA GeForce GTX 1080 | 180 W | |
|
|
AMD Radeon RX 6650 XT | 176 W | |
|
|
AMD Radeon R9 Nano | 175 W | |
|
|
AMD Radeon RX 6700 | 175 W | |
|
Intel Arc A580 Graphics | 175 W | |
|
|
NVIDIA GeForce RTX 2060 SUPER | 175 W | |
|
|
NVIDIA GeForce RTX 2070 | 175 W | |
|
|
NVIDIA GeForce RTX 3060 | 170 W | |
|
|
NVIDIA GeForce RTX 3060 8GB | 170 W | |
|
|
NVIDIA GeForce RTX 3060 LHR | 170 W | |
|
|
NVIDIA GeForce GTX 980 | 165 W | |
|
|
AMD Radeon RX 5600 XT | 160 W | |
|
|
AMD Radeon RX 6600 XT | 160 W | |
|
|
NVIDIA GeForce RTX 2060 | 160 W | |
|
|
NVIDIA GeForce RTX 4060 TI (16GB) | 160 W | |
|
|
NVIDIA GeForce RTX 4060 TI (8GB) | 160 W |
Power Supply Series: Corsair TX-M
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
Corsair TX-M Series TX550M 2021 - 550 W | 2 x | 82 $ | |
|
|
Corsair TX-M Series TX550M 2017 - 550 W | 2 x | 99 $ | |
|
|
Corsair TX-M Series TX650M 2021 - 650 W | 4 x | 94 $ | |
|
|
Corsair TX-M Series TX650M 2017 - 650 W | 4 x | 102 $ | |
|
|
Corsair TX-M Series TX750M 2021 - 750 W | 4 x | 105 $ | |
|
|
Corsair TX-M Series TX750M 2017 - 750 W | 4 x | 121 $ | |
|
|
Corsair TX-M Series TX850M 2017 - 850 W | 4 x | 121 $ |
