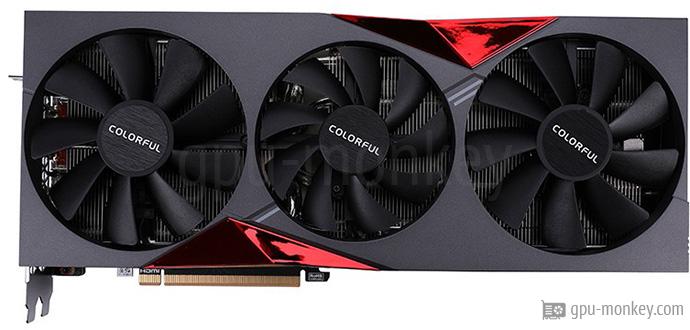

Colorful GeForce RTX 3090 Ti NB EX-V
vs
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
GPU comparison with benchmarksThe Colorful GeForce RTX 3090 Ti NB EX-V is based on the NVIDIA GeForce RTX 3090 Ti (Ampere) and has 24 GB GDDR6X graphics memory with a bandwidth of 1008 GB/s.
The Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V is based on the NVIDIA GeForce RTX 3090 Ti (Ampere) and has 24 GB GDDR6X graphics memory with a bandwidth of 1008 GB/s. |
||
GPUThe Colorful GeForce RTX 3090 Ti NB EX-V has the GA102-350-A1 graphics chip installed, which is based on the Ampere architecture. The Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V is based on the graphics chip GA102-350-A1, which comes from the Ampere architecture. |
||
| Colorful GeForce RTX 3090 Ti NB EX-V | GPU | Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V |
| NVIDIA GeForce RTX 3090 Ti | Based on | NVIDIA GeForce RTX 3090 Ti |
| GA102-350-A1 | GPU Chip | GA102-350-A1 |
| Ampere | Architecture | Ampere |
| 84 | Streaming Multiprocessors | 84 |
| 10752 | Shader | 10752 |
| 112 | Render Output Units | 112 |
| 336 | Texture Units | 336 |
| 84 | Raytracing Cores | 84 |
MemoryThe graphics memory of the Colorful GeForce RTX 3090 Ti NB EX-V clocks at 1.313 GHz, which corresponds to a speed of 21.0 Gbps. The graphics memory speed of the Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V is 21.0 Gbps and the clock speed is 1.313 GHz. |
||
| 24 GB | Memory Size | 24 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.313 GHz | Memory Clock | 1.313 GHz |
| 21.0 Gbps | Memory Speed | 21.0 Gbps |
| 1008 GB/s | Memory bandwidth | 1008 GB/s |
| 384 bit | Memory Interface | 384 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
1.560 GHz -7 % |
Base Clock | 1.560 GHz-7 % |
| 1.860 GHz | Boost Clock | 1.920 GHz + 3 % |
| Avg (Game) Clock | 1.86 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe Colorful GeForce RTX 3090 Ti NB EX-V is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 450 W. The Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 450 W. |
||
| 450 W | TDP | 450 W |
| -- | TDP (up) | -- |
| 92 °C | Tjunction max | 92 °C |
| 1 x 16-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe Colorful GeForce RTX 3090 Ti NB EX-V is equipped with a total of 3 Axial main fans. The Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 100 mm | Fan 1 | 3 x 100 mm |
| 1 x 90 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the Colorful GeForce RTX 3090 Ti NB EX-V. The Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the Colorful GeForce RTX 3090 Ti NB EX-V it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe Colorful GeForce RTX 3090 Ti NB EX-V is connected to the system via PCIe 4.0 x 16 lanes and requires 3 PCIe-Slots space in the housing. The Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V needs the space of 4 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 327 mm | Length | 323 mm |
| 139 mm | Height | 159 mm |
| 60 mm | Width | 71 mm |
| 3 PCIe-Slots | Width (Slots) | 4 PCIe-Slots |
| 1700 g | Weight | 2100 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe Colorful GeForce RTX 3090 Ti NB EX-V has been manufactured with a structure width of 8 nanometers since Q1/2022. The Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V came on the market in Q1/2022 and will have a structure width of 8 nanometers manufactured. |
||
| -- | Part-no | -- |
| Q1/2022 | Release date | Q1/2022 |
| 1,999 $ (Reference) | Launch Price | 1,999 $ (Reference) |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.560 GHz, 24 GB (450 W TDP)
Buy this graphic card at amazon!
1.560 GHz, 24 GB (450 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
Geekbench 6 - Vulkan
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Colorful GeForce RTX 3090 Ti NB EX-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3090 Ti Vulcan OC-V
24 GB GDDR6X |
||
