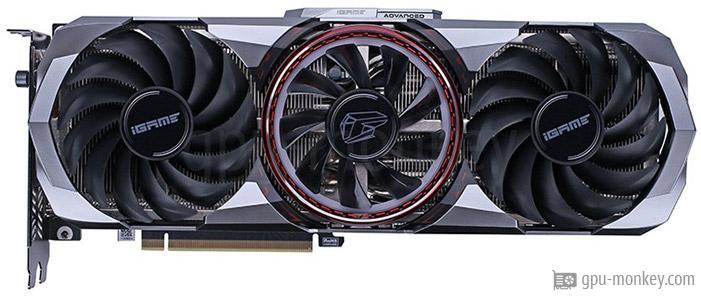

Colorful iGame GeForce RTX 3090 Advanced OC-V
vs
Colorful iGame GeForce RTX 3070 Advanced OC-V
GPU comparison with benchmarksIn the gpu comparison between the Colorful iGame GeForce RTX 3090 Advanced OC-V and the Colorful iGame GeForce RTX 3070 Advanced OC-V, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe Colorful iGame GeForce RTX 3090 Advanced OC-V is based on the NVIDIA GeForce RTX 3090 and has 10496 texture shaders and 82 execution units. Colorful iGame GeForce RTX 3070 Advanced OC-V is based on NVIDIA GeForce RTX 3070, which has 5888 shaders and 46 execution units. |
||
| Colorful iGame GeForce RTX 3090 Advanced OC-V | GPU | Colorful iGame GeForce RTX 3070 Advanced OC-V |
| NVIDIA GeForce RTX 3090 | Based on | NVIDIA GeForce RTX 3070 |
| GA102-300-A1 | GPU Chip | GA104-300-A1 |
| Ampere | Architecture | Ampere |
| 82 | Streaming Multiprocessors | 46 |
| 10496 | Shader | 5888 |
| 112 | Render Output Units | 96 |
| 328 | Texture Units | 184 |
| 82 | Raytracing Cores | 46 |
MemoryThe Colorful iGame GeForce RTX 3090 Advanced OC-V has 24 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 936 GB/s. The Colorful iGame GeForce RTX 3070 Advanced OC-V can access 8 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 448 GB/s. |
||
| 24 GB | Memory Size | 8 GB |
| GDDR6X | Memory Type | GDDR6 |
| 1.219 GHz | Memory Clock | 1.750 GHz |
| 19.5 Gbps | Memory Speed | 14.0 Gbps |
| 936 GB/s | Memory bandwidth | 448 GB/s |
| 384 bit | Memory Interface | 256 bit |
Clock SpeedsThe Colorful iGame GeForce RTX 3090 Advanced OC-V clocks in the base with up to 1.395 GHz. The base frequency of the Colorful iGame GeForce RTX 3070 Advanced OC-V is 1.500 GHz. |
||
| 1.395 GHz | Base Clock | 1.500 GHz |
| 1.755 GHz | Boost Clock | 1.815 GHz |
| Avg (Game) Clock | 1.73 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the Colorful iGame GeForce RTX 3090 Advanced OC-V is 370 W. The graphics card is supplied with energy via the 3 x 8-Pin connector. The Colorful iGame GeForce RTX 3070 Advanced OC-V has a TDP of 270 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 370 W | TDP | 270 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 3 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe Colorful iGame GeForce RTX 3090 Advanced OC-V has a total of 3 Axial fans. The Colorful iGame GeForce RTX 3070 Advanced OC-V has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 100 mm | Fan 1 | 2 x 90 mm |
| 1 x 80 mm | Fan 2 | 1 x 80 mm |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the Colorful iGame GeForce RTX 3090 Advanced OC-V. The Colorful iGame GeForce RTX 3070 Advanced OC-V supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe Colorful iGame GeForce RTX 3090 Advanced OC-V supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the Colorful iGame GeForce RTX 3070 Advanced OC-V is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| iGame Energy Core | LED | iGame Energy Core |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe Colorful iGame GeForce RTX 3090 Advanced OC-V is 316 mm long, 131 mm high and 60 mm wide. The Colorful iGame GeForce RTX 3070 Advanced OC-V is 316 mm long, 131 mm high and 53 mm wide. |
||
| 316 mm | Length | 316 mm |
| 131 mm | Height | 131 mm |
| 60 mm | Width | 53 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | 1400 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe Colorful iGame GeForce RTX 3090 Advanced OC-V was released in Q4/2020 at a price of 1,499 $ (Reference). The Colorful iGame GeForce RTX 3070 Advanced OC-V was introduced in Q4/2020 at a price of 499 $ (Reference). |
||
| -- | Part-no | -- |
| Q4/2020 | Release date | Q4/2020 |
| 1,499 $ (Reference) | Launch Price | 499 $ (Reference) |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.395 GHz, 24 GB (370 W TDP)
Buy this graphic card at amazon!
1.500 GHz, 8 GB (270 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Colorful iGame GeForce RTX 3090 Advanced OC-V
24 GB GDDR6X |
||
|
|
Colorful iGame GeForce RTX 3070 Advanced OC-V
8 GB GDDR6 |
||
