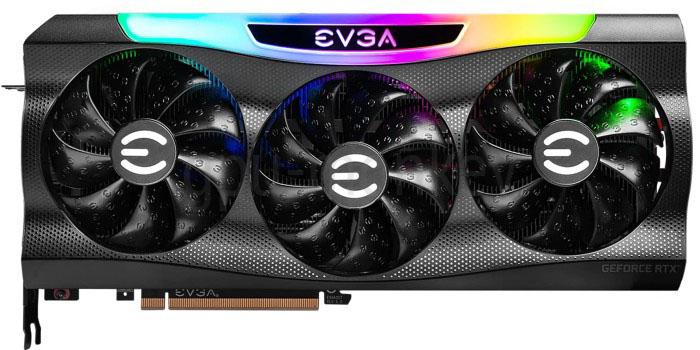

EVGA GeForce RTX 3080 FTW3 Ultra Gaming
vs
ASUS Radeon RX 6800
GPU comparison with benchmarksIn the gpu comparison between the EVGA GeForce RTX 3080 FTW3 Ultra Gaming and the ASUS Radeon RX 6800, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe EVGA GeForce RTX 3080 FTW3 Ultra Gaming is based on the NVIDIA GeForce RTX 3080 and has 8704 texture shaders and 68 execution units. ASUS Radeon RX 6800 is based on AMD Radeon RX 6800, which has 3840 shaders and 60 execution units. |
||
| EVGA GeForce RTX 3080 FTW3 Ultra Gaming | GPU | ASUS Radeon RX 6800 |
| NVIDIA GeForce RTX 3080 | Based on | AMD Radeon RX 6800 |
| GA102-200-K1-A1 | GPU Chip | Navi 21 |
| Ampere | Architecture | RDNA 2 |
| 68 | Streaming Multiprocessors | 60 |
| 8704 | Shader | 3840 |
| 96 | Render Output Units | 96 |
| 272 | Texture Units | 240 |
| 68 | Raytracing Cores | 60 |
MemoryThe EVGA GeForce RTX 3080 FTW3 Ultra Gaming has 10 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 760 GB/s. The ASUS Radeon RX 6800 can access 16 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 512 GB/s. |
||
| 10 GB | Memory Size | 16 GB |
| GDDR6X | Memory Type | GDDR6 |
| 1.188 GHz | Memory Clock | 2.000 GHz |
| 19.0 Gbps | Memory Speed | 16.0 Gbps |
| 760 GB/s | Memory bandwidth | 512 GB/s |
| 320 bit | Memory Interface | 256 bit |
Clock SpeedsThe EVGA GeForce RTX 3080 FTW3 Ultra Gaming clocks in the base with up to 1.440 GHz. The base frequency of the ASUS Radeon RX 6800 is 1.700 GHz. |
||
| 1.440 GHz | Base Clock | 1.700 GHz |
| 1.800 GHz | Boost Clock | 2.105 GHz |
| Avg (Game) Clock | 1.82 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the EVGA GeForce RTX 3080 FTW3 Ultra Gaming is 320 W. The graphics card is supplied with energy via the 3 x 8-Pin connector. The ASUS Radeon RX 6800 has a TDP of 250 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 320 W | TDP | 250 W |
| 370 W | TDP (up) | 285 W |
| 93 °C | Tjunction max | 100 °C |
| 3 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe EVGA GeForce RTX 3080 FTW3 Ultra Gaming has a total of 3 Axial fans. The ASUS Radeon RX 6800 has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 3 x 85 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 42-45 dB | Noise (Load) | 35 dB |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the EVGA GeForce RTX 3080 FTW3 Ultra Gaming. The ASUS Radeon RX 6800 supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 2x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | 1 |
FeaturesetThe EVGA GeForce RTX 3080 FTW3 Ultra Gaming supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the ASUS Radeon RX 6800 is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | Non addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode / Encode |
| Decode | VP9 | Decode / Encode |
DimensionsThe EVGA GeForce RTX 3080 FTW3 Ultra Gaming is 300 mm long, 137 mm high and -- wide. The ASUS Radeon RX 6800 is 267 mm long, 120 mm high and 40 mm wide. |
||
| 300 mm | Length | 267 mm |
| 137 mm | Height | 120 mm |
| -- | Width | 40 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe EVGA GeForce RTX 3080 FTW3 Ultra Gaming was released in Q4/2020 at a price of 879 $. The ASUS Radeon RX 6800 was introduced in Q4/2020 at a price of 579 $ (Reference). |
||
| 10G-P5-3897-KR | Part-no | RX6800-16G |
| Q4/2020 | Release date | Q4/2020 |
| 879 $ | Launch Price | 579 $ (Reference) |
| 8 nm | Structure size | 7 nm |
| data sheet | Documents | data sheet |
1.440 GHz, 10 GB (320 W TDP)
Buy this graphic card at amazon!
1.700 GHz, 16 GB (250 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Geekbench 6 - Metal
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
EVGA GeForce RTX 3080 FTW3 Ultra Gaming
10 GB GDDR6X |
||
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
