Gainward GeForce RTX 2080
vs
GALAX GeForce RTX 2070 SUPER
GPU comparison with benchmarksThe Gainward GeForce RTX 2080 is based on the NVIDIA GeForce RTX 2080 (Turing) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s.

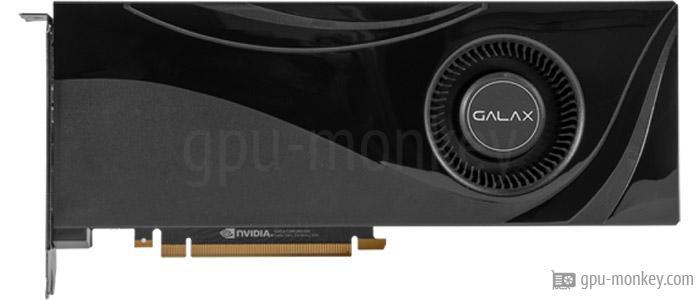

The GALAX GeForce RTX 2070 SUPER is based on the NVIDIA GeForce RTX 2070 SUPER (Turing) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s. |
||
GPUThe Gainward GeForce RTX 2080 has the TU104 graphics chip installed, which is based on the Turing architecture. The GALAX GeForce RTX 2070 SUPER is based on the graphics chip TU104, which comes from the Turing architecture. |
||
| Gainward GeForce RTX 2080 | GPU | GALAX GeForce RTX 2070 SUPER |
| NVIDIA GeForce RTX 2080 | Based on | NVIDIA GeForce RTX 2070 SUPER |
| TU104 | GPU Chip | TU104 |
| Turing | Architecture | Turing |
| 46 | Streaming Multiprocessors | 40 |
| 2944 | Shader | 2560 |
| 64 | Render Output Units | 64 |
| 184 | Texture Units | 160 |
| 46 | Raytracing Cores | 40 |
MemoryThe graphics memory of the Gainward GeForce RTX 2080 clocks at 1.750 GHz, which corresponds to a speed of 14.0 Gbps. The graphics memory speed of the GALAX GeForce RTX 2070 SUPER is 14.0 Gbps and the clock speed is 1.750 GHz. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 14.0 Gbps | Memory Speed | 14.0 Gbps |
| 448 GB/s | Memory bandwidth | 448 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.515 GHz | Base Clock | 1.605 GHz |
| 1.710 GHz | Boost Clock | 1.770 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe Gainward GeForce RTX 2080 is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 215 W. The GALAX GeForce RTX 2070 SUPER has 1 x 6-Pin, 1 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 215 W. |
||
| 215 W | TDP | 215 W |
| -- | TDP (up) | -- |
| 88 °C | Tjunction max | 88 °C |
| 1 x 6-Pin, 1 x 8-Pin | PCIe-Power | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe Gainward GeForce RTX 2080 is equipped with a total of 3 Axial main fans. The GALAX GeForce RTX 2070 SUPER has 1 Radial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Radial |
| 2 x 90 mm | Fan 1 | 1 x 65 mm |
| 1 x 80 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the Gainward GeForce RTX 2080. The GALAX GeForce RTX 2070 SUPER supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.2 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| 1 | USB-C Ports | -- |
FeaturesetWith the Gainward GeForce RTX 2080 it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the GALAX GeForce RTX 2070 SUPER is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| No | AV1 | No |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe Gainward GeForce RTX 2080 is connected to the system via PCIe 3.0 x 16 lanes and requires 2 PCIe-Slots space in the housing. The GALAX GeForce RTX 2070 SUPER needs the space of 2 PCIe-Slots in the case and has a PCIe 3.0 x 16 Lanes interface. |
||
| 292 mm | Length | 283 mm |
| 112 mm | Height | 139 mm |
| -- | Width | 41 mm |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataThe Gainward GeForce RTX 2080 has been manufactured with a structure width of 12 nanometers since Q3/2018. The GALAX GeForce RTX 2070 SUPER came on the market in Q3/2019 and will have a structure width of 12 nanometers manufactured. |
||
| 426018336-4207 | Part-no | 27ISL6MD32BS |
| Q3/2018 | Release date | Q3/2019 |
| 699 $ (Reference) | Launch Price | 499 $ (Reference) |
| 12 nm | Structure size | 12 nm |
| data sheet | Documents | data sheet |
1.515 GHz, 8 GB (215 W TDP)
Buy this graphic card at amazon!
1.605 GHz, 8 GB (215 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Gainward GeForce RTX 2080
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2070 SUPER
8 GB GDDR6 |
||
