GALAX GeForce GTX 980
vs

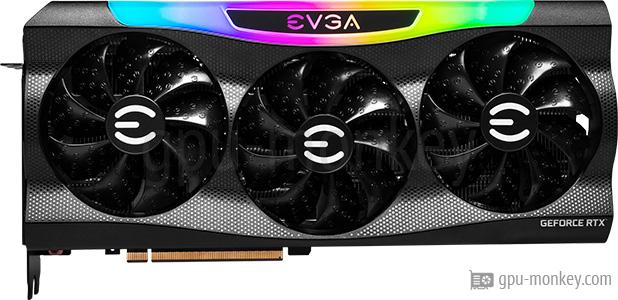

EVGA GeForce RTX 3090 Ti FTW3 GAMING
GPU comparison with benchmarksThe GALAX GeForce GTX 980 is based on the NVIDIA GeForce GTX 980 (Maxwell 2.0) and has 4 GB GDDR5 graphics memory with a bandwidth of 224 GB/s.
The EVGA GeForce RTX 3090 Ti FTW3 GAMING is based on the NVIDIA GeForce RTX 3090 Ti (Ampere) and has 24 GB GDDR6X graphics memory with a bandwidth of 1008 GB/s. |
||
GPUThe GALAX GeForce GTX 980 has the GM204-400-A1 graphics chip installed, which is based on the Maxwell 2.0 architecture. The EVGA GeForce RTX 3090 Ti FTW3 GAMING is based on the graphics chip GA102-350-A1, which comes from the Ampere architecture. |
||
| GALAX GeForce GTX 980 | GPU | EVGA GeForce RTX 3090 Ti FTW3 GAMING |
| NVIDIA GeForce GTX 980 | Based on | NVIDIA GeForce RTX 3090 Ti |
| GM204-400-A1 | GPU Chip | GA102-350-A1 |
| Maxwell 2.0 | Architecture | Ampere |
| 16 | Streaming Multiprocessors | 84 |
| 2048 | Shader | 10752 |
| 64 | Render Output Units | 112 |
| 128 | Texture Units | 336 |
| 0 | Raytracing Cores | 84 |
MemoryThe graphics memory of the GALAX GeForce GTX 980 clocks at 1.753 GHz, which corresponds to a speed of 7.0 Gbps. The graphics memory speed of the EVGA GeForce RTX 3090 Ti FTW3 GAMING is 21.0 Gbps and the clock speed is 1.313 GHz. |
||
| 4 GB | Memory Size | 24 GB |
| GDDR5 | Memory Type | GDDR6X |
| 1.753 GHz | Memory Clock | 1.313 GHz |
| 7.0 Gbps | Memory Speed | 21.0 Gbps |
| 224 GB/s | Memory bandwidth | 1008 GB/s |
| 256 bit | Memory Interface | 384 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.126 GHz | Base Clock | 1.560 GHz |
| 1.216 GHz | Boost Clock | 1.890 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe GALAX GeForce GTX 980 is powered by 2 x 6-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 165 W. The EVGA GeForce RTX 3090 Ti FTW3 GAMING has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 450 W. |
||
| 165 W | TDP | 450 W |
| -- | TDP (up) | -- |
| 98 °C | Tjunction max | 92 °C |
| 2 x 6-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe GALAX GeForce GTX 980 is equipped with a total of 1 Radial main fans. The EVGA GeForce RTX 3090 Ti FTW3 GAMING has 3 Axial main fans that cool the GPU and memory. |
||
| Radial | Fan-Type | Axial |
| 1 x 65 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the GALAX GeForce GTX 980. The EVGA GeForce RTX 3090 Ti FTW3 GAMING supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.3 |
| 1x HDMI v2.0 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.2 | DP Ports | 3x DP v1.4a |
| 1 | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the GALAX GeForce GTX 980 it is possible to operate a screen with a maximum resolution of up to 4096x2160 pixels. The maximum supported resolution of the EVGA GeForce RTX 3090 Ti FTW3 GAMING is 7680x4320 pixels. |
||
| 4096x2160 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | Yes |
| No | DLSS / FSR | Yes |
| No LED lighting | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| No | h265 / HEVC | Decode / Encode |
| No | AV1 | Decode |
| Decode | VP8 | Decode |
| No | VP9 | Decode |
DimensionsThe GALAX GeForce GTX 980 is connected to the system via PCIe 3 x 16 lanes and requires 2 PCIe-Slots space in the housing. The EVGA GeForce RTX 3090 Ti FTW3 GAMING needs the space of 4 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 281 mm | Length | 300 mm |
| 124 mm | Height | 137 mm |
| 41 mm | Width | -- |
| 2 PCIe-Slots | Width (Slots) | 4 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe GALAX GeForce GTX 980 has been manufactured with a structure width of 28 nanometers since Q4/2014. The EVGA GeForce RTX 3090 Ti FTW3 GAMING came on the market in Q1/2022 and will have a structure width of 8 nanometers manufactured. |
||
| 98NQH6DHC8XX | Part-no | 24G-P5-4983-KR |
| Q4/2014 | Release date | Q1/2022 |
| 499 $ | Launch Price | 1,999 $ (Reference) |
| 28 nm | Structure size | 8 nm |
| -- | Documents | data sheet |
1.126 GHz, 4 GB (165 W TDP)
Buy this graphic card at amazon!
1.560 GHz, 24 GB (450 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce GTX 980
4 GB GDDR5 |
||
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce GTX 980
4 GB GDDR5 |
||
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce GTX 980
4 GB GDDR5 |
||
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce GTX 980
4 GB GDDR5 |
||
|
|
EVGA GeForce RTX 3090 Ti FTW3 GAMING
24 GB GDDR6X |
||
