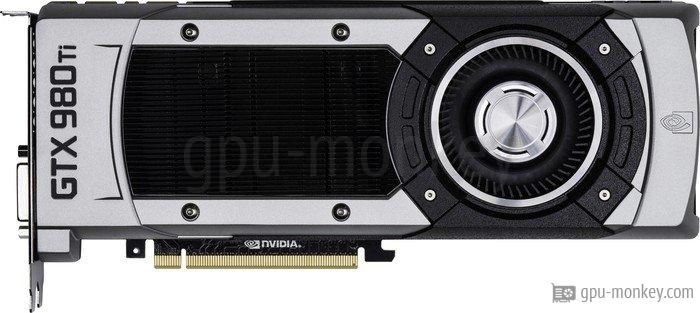

INNO3D GeForce GTX 980 Ti
vs
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
GPU comparison with benchmarksThe INNO3D GeForce GTX 980 Ti is based on the NVIDIA GeForce GTX 980 Ti (Maxwell 2.0) and has 6 GB GDDR5 graphics memory with a bandwidth of 337 GB/s.
The INNO3D GeForce RTX 5080 ICHILL FROSTBITE is based on the NVIDIA GeForce RTX 5080 (Blackwell) and has 16 GB GDDR7 graphics memory with a bandwidth of 960 GB/s. |
||
GPUThe INNO3D GeForce GTX 980 Ti has the GM200-310-A1 graphics chip installed, which is based on the Maxwell 2.0 architecture. The INNO3D GeForce RTX 5080 ICHILL FROSTBITE is based on the graphics chip GB203-400-A1, which comes from the Blackwell architecture. |
||
| INNO3D GeForce GTX 980 Ti | GPU | INNO3D GeForce RTX 5080 ICHILL FROSTBITE |
| NVIDIA GeForce GTX 980 Ti | Based on | NVIDIA GeForce RTX 5080 |
| GM200-310-A1 | GPU Chip | GB203-400-A1 |
| Maxwell 2.0 | Architecture | Blackwell |
| 22 | Streaming Multiprocessors | 84 |
| 2816 | Shader | 10752 |
| 96 | Render Output Units | 128 |
| 176 | Texture Units | 336 |
| 0 | Raytracing Cores | 84 |
MemoryThe graphics memory of the INNO3D GeForce GTX 980 Ti clocks at 1.753 GHz, which corresponds to a speed of 7.0 Gbps. The graphics memory speed of the INNO3D GeForce RTX 5080 ICHILL FROSTBITE is 30.0 Gbps and the clock speed is 1.875 GHz. |
||
| 6 GB | Memory Size | 16 GB |
| GDDR5 | Memory Type | GDDR7 |
| 1.753 GHz | Memory Clock | 1.875 GHz |
| 7.0 Gbps | Memory Speed | 30.0 Gbps |
| 337 GB/s | Memory bandwidth | 960 GB/s |
| 384 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.000 GHz | Base Clock | 2.295 GHz |
| 1.076 GHz | Boost Clock | 2.670 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe INNO3D GeForce GTX 980 Ti is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 250 W. The INNO3D GeForce RTX 5080 ICHILL FROSTBITE has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 360 W (Reference). |
||
| 250 W | TDP | 360 W (Reference) |
| -- | TDP (up) | -- |
| 91 °C | Tjunction max | 88 °C |
| 1 x 6-Pin, 1 x 8-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe INNO3D GeForce GTX 980 Ti is equipped with a total of 1 Radial main fans. The INNO3D GeForce RTX 5080 ICHILL FROSTBITE has 0 -- main fans that cool the GPU and memory. |
||
| Radial | Fan-Type | -- |
| 1 x 65 mm | Fan 1 | -- |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Water cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the INNO3D GeForce GTX 980 Ti. The INNO3D GeForce RTX 5080 ICHILL FROSTBITE supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.3 |
| 1x HDMI v2.0 | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v1.2 | DP Ports | 3x DP v2.1b |
| 1 | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the INNO3D GeForce GTX 980 Ti it is possible to operate a screen with a maximum resolution of up to 4096x2160 pixels. The maximum supported resolution of the INNO3D GeForce RTX 5080 ICHILL FROSTBITE is 7680x4320 pixels. |
||
| 4096x2160 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | Yes |
| No | DLSS / FSR | Yes |
| No LED lighting | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| No | h265 / HEVC | Decode / Encode |
| No | AV1 | Decode / Encode |
| Decode | VP8 | Decode / Encode |
| No | VP9 | Decode / Encode |
DimensionsThe INNO3D GeForce GTX 980 Ti is connected to the system via PCIe 3 x 16 lanes and requires 2 PCIe-Slots space in the housing. The INNO3D GeForce RTX 5080 ICHILL FROSTBITE needs the space of 2 PCIe-Slots in the case and has a PCIe 5 x 16 Lanes interface. |
||
| 267 mm | Length | 160 mm |
| 111 mm | Height | 140 mm |
| 38 mm | Width | 31 mm |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3 x 16 | GPU Interface | PCIe 5 x 16 |
| No | SFF-Ready | No |
Additional dataThe INNO3D GeForce GTX 980 Ti has been manufactured with a structure width of 28 nanometers since Q2/2015. The INNO3D GeForce RTX 5080 ICHILL FROSTBITE came on the market in Q1/2025 and will have a structure width of 5 nanometers manufactured. |
||
| N98T-1DDN-N5HN | Part-no | C50803-16D7X-1760FB |
| Q2/2015 | Release date | Q1/2025 |
| 649 $ (Reference) | Launch Price | 1,169 $ (Reference) |
| 28 nm | Structure size | 5 nm |
| -- | Documents | data sheet |
1.000 GHz, 6 GB (250 W TDP)
Buy this graphic card at amazon!
2.295 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 980 Ti
6 GB GDDR5 |
||
|
|
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
16 GB GDDR7 |
||
Steel Nomad Light Graphics score
|
|
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
16 GB GDDR7 |
||
Steel Nomad Graphics score
|
|
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
16 GB GDDR7 |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
16 GB GDDR7 |
||
Speed Way Graphics Score (Raytracing)
|
|
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
16 GB GDDR7 |
||
Solar Bay (Raytracing)
|
|
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
16 GB GDDR7 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 980 Ti
6 GB GDDR5 |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 980 Ti
6 GB GDDR5 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 980 Ti
6 GB GDDR5 |
||
|
|
INNO3D GeForce RTX 5080 ICHILL FROSTBITE
16 GB GDDR7 |
||
