In the gpu comparison between the INNO3D GeForce RTX 3080 iCHILL Frostbite and the KFA2 GeForce RTX 2060, we compare both the technical data and the benchmark results of the two graphics cards.
Quick comparison
In FP32 performance, the INNO3D GeForce RTX 3080 iCHILL Frostbite is 378 % faster than the KFA2 GeForce RTX 2060.

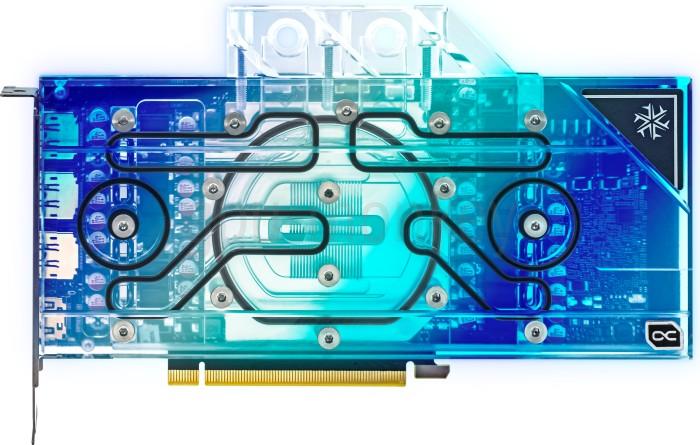

The INNO3D GeForce RTX 3080 iCHILL Frostbite is based on the NVIDIA GeForce RTX 3080 and has 8704 texture shaders and 68 execution units.
KFA2 GeForce RTX 2060 is based on NVIDIA GeForce RTX 2060, which has 1920 shaders and 30 execution units.
Memory
Memory
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
Memory Size
10 GB
6 GB
Memory Type
GDDR6X
GDDR6
Memory Clock
1.188 GHz
1.750 GHz
Memory Speed
19.0 Gbps
14.0 Gbps
Memory bandwidth
760 GB/s
336 GB/s
Memory Interface
320 bit
192 bit
More information
The INNO3D GeForce RTX 3080 iCHILL Frostbite has 10 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 760 GB/s.
The KFA2 GeForce RTX 2060 can access 6 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 336 GB/s.
Clock Speeds
Clock Speeds
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
Base Clock
1.440 GHz
1.365 GHz
Boost Clock
1.770 GHz
1.680 GHz
Overclocking
Yes
Yes
More information
The INNO3D GeForce RTX 3080 iCHILL Frostbite clocks in the base with up to 1.440 GHz. The base frequency of the KFA2 GeForce RTX 2060 is 1.365 GHz.
Thermal Design
Thermal Design
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
TDP
340 W
160 W
TDP (up)
370 W
--
Tjunction max
93 °C
88 °C
PCIe-Power
2 x 8-Pin
1 x 8-Pin
More information
The TDP (Thermal Design Power) of the INNO3D GeForce RTX 3080 iCHILL Frostbite is 340 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.
The KFA2 GeForce RTX 2060 has a TDP of 160 W and is supplied with the required energy via 1 x 8-Pin PCIe power connectors.
Cooler & Fans
Cooler & Fans
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
Fan-Type
--
Radial
Fan 1
--
2 x 65 mm
Cooler-Type
Water cooling
Air cooling
Noise (Idle)
0 dB
0 dB
Noise (Load)
0 dB
--
More information
The INNO3D GeForce RTX 3080 iCHILL Frostbite has a total of 0 -- fans.
The KFA2 GeForce RTX 2060 has 2 Radial fans to cool the GPU and memory.
Connectivity
Connectivity
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
Max. Displays
4
4
HDCP
2.3
2.2
HDMI
1x HDMI 2.1
1x HDMI 2.0b
DisplayPort
3x DP 1.4a
1x DP 1.4a
DVI
--
1
More information
In the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the INNO3D GeForce RTX 3080 iCHILL Frostbite.
The KFA2 GeForce RTX 2060 supports a maximum of 4 screens.
Featureset
Featureset
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
Max. resolution
7680x4320
7680x4320
DirectX
12_2 (Ultimate)
12_2 (Ultimate)
Raytracing
Yes
Yes
DLSS / FSR
Yes
Yes
LED
ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light
No LED lighting
More information
The INNO3D GeForce RTX 3080 iCHILL Frostbite supports a maximum resolution of 7680x4320 pixels.
The maximum resolution of the KFA2 GeForce RTX 2060 is 7680x4320 pixels.
Supported Video Codecs
Supported Video Codecs
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
h264
Decode / Encode
Decode / Encode
h265 / HEVC
Decode / Encode
Decode / Encode
VP8
Decode
Decode
VP9
Decode
Decode
AV1
Decode
No
More information
The support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos.
Dimensions
Dimensions
INNO3D GeForce RTX 3080 iCHILL Frostbite
KFA2 GeForce RTX 2060
Length
226 mm
281 mm
Height
135 mm
124 mm
Width
--
41 mm
Width (Slots)
2 Slots
2 Slots
SFF-Ready
No
No
More information
The INNO3D GeForce RTX 3080 iCHILL Frostbite is 226 mm long, 135 mm high and -- wide.
The KFA2 GeForce RTX 2060 is 281 mm long, 124 mm high and 41 mm wide.
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
