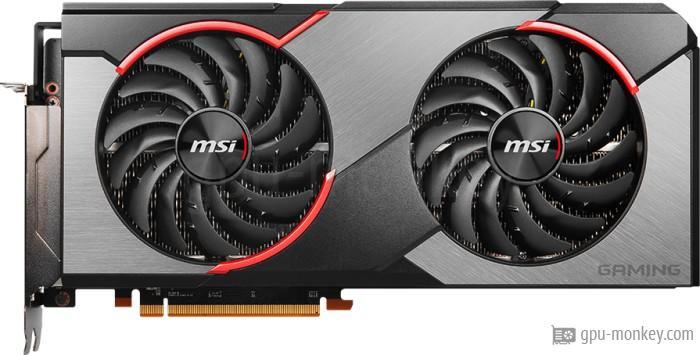

MSI Radeon RX 5600 XT Gaming
vs
EVGA GeForce GTX 950 SC GAMING
GPU comparison with benchmarksIn the gpu comparison between the MSI Radeon RX 5600 XT Gaming and the EVGA GeForce GTX 950 SC GAMING, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe MSI Radeon RX 5600 XT Gaming is based on the AMD Radeon RX 5600 XT and has 2304 texture shaders and 36 execution units. EVGA GeForce GTX 950 SC GAMING is based on NVIDIA GeForce GTX 950, which has 768 shaders and 6 execution units. |
||
| MSI Radeon RX 5600 XT Gaming | GPU | EVGA GeForce GTX 950 SC GAMING |
| AMD Radeon RX 5600 XT | Based on | NVIDIA GeForce GTX 950 |
| Navi 10 XLE | GPU Chip | GM206-250-A1 |
| RDNA 1 | Architecture | Maxwell 2.0 |
| 36 | Streaming Multiprocessors | 6 |
| 2304 | Shader | 768 |
| 64 | Render Output Units | 32 |
| 144 | Texture Units | 48 |
| 0 | Raytracing Cores | 0 |
MemoryThe MSI Radeon RX 5600 XT Gaming has 6 GB of graphics memory of the type GDDR6 and achieves a memory bandwidth of 336 GB/s. The EVGA GeForce GTX 950 SC GAMING can access 2 GB GDDR5 graphics memory and thus achieves a memory bandwidth of 106 GB/s. |
||
| 6 GB | Memory Size | 2 GB |
| GDDR6 | Memory Type | GDDR5 |
| 1.750 GHz | Memory Clock | 1.653 GHz |
| 14.0 Gbps | Memory Speed | 6.6 Gbps |
| 336 GB/s | Memory bandwidth | 106 GB/s |
| 192 bit | Memory Interface | 128 bit |
Clock SpeedsThe MSI Radeon RX 5600 XT Gaming clocks in the base with up to 1.185 GHz. The base frequency of the EVGA GeForce GTX 950 SC GAMING is 1.152 GHz. |
||
| 1.185 GHz | Base Clock | 1.152 GHz |
| 1.600 GHz | Boost Clock | 1.342 GHz |
| 1.42 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI Radeon RX 5600 XT Gaming is 160 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The EVGA GeForce GTX 950 SC GAMING has a TDP of 90 W and is supplied with the required energy via 1 x 6-Pin PCIe power connectors. |
||
| 160 W | TDP | 90 W |
| 195 W | TDP (up) | -- |
| 100 °C | Tjunction max | 95 °C |
| 2 x 8-Pin | PCIe-Power | 1 x 6-Pin |
Cooler & FansThe MSI Radeon RX 5600 XT Gaming has a total of 2 Axial fans. The EVGA GeForce GTX 950 SC GAMING has 1 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 100 mm | Fan 1 | 1 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 28 dB | Noise (Idle) | 0 dB |
| 33 dB | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the MSI Radeon RX 5600 XT Gaming. The EVGA GeForce GTX 950 SC GAMING supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.2 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0 |
| 3x DP v1.4 | DP Ports | 3x DP v1.2 |
| -- | DVI Ports | 1 |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe MSI Radeon RX 5600 XT Gaming supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the EVGA GeForce GTX 950 SC GAMING is 4096x2160 pixels. |
||
| 7680x4320 | Max. resolution | 4096x2160 |
| 12_2 (Ultimate) | DirectX | 12_1 |
| No | Raytracing | No |
| Yes | DLSS / FSR | No |
| MSI Mystic Light | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | No |
| No | AV1 | No |
| Decode | VP8 | Decode |
| Decode / Encode | VP9 | No |
DimensionsThe MSI Radeon RX 5600 XT Gaming is 297 mm long, 140 mm high and 58 mm wide. The EVGA GeForce GTX 950 SC GAMING is 173 mm long, 111 mm high and 38 mm wide. |
||
| 297 mm | Length | 173 mm |
| 140 mm | Height | 111 mm |
| 58 mm | Width | 38 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| 1401 g | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 3 x 16 |
| No | SFF-Ready | No |
Additional dataThe MSI Radeon RX 5600 XT Gaming was released in Q1/2020 at a price of 279 $ (Reference). The EVGA GeForce GTX 950 SC GAMING was introduced in Q3/2015 at a price of 149 $. |
||
| -- | Part-no | 02G-P4-2951-KR |
| Q1/2020 | Release date | Q3/2015 |
| 279 $ (Reference) | Launch Price | 149 $ |
| 7 nm | Structure size | 28 nm |
| data sheet | Documents | data sheet |
1.185 GHz, 6 GB (160 W TDP)
Buy this graphic card at amazon!
1.152 GHz, 2 GB (90 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
|
EVGA GeForce GTX 950 SC GAMING
2 GB GDDR5 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
|
|
EVGA GeForce GTX 950 SC GAMING
2 GB GDDR5 |
||
Geekbench 6 - Vulkan
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
|
|
EVGA GeForce GTX 950 SC GAMING
2 GB GDDR5 |
||
Geekbench 6 - Metal
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI Radeon RX 5600 XT Gaming
6 GB GDDR6 |
||
|
|
EVGA GeForce GTX 950 SC GAMING
2 GB GDDR5 |
||
