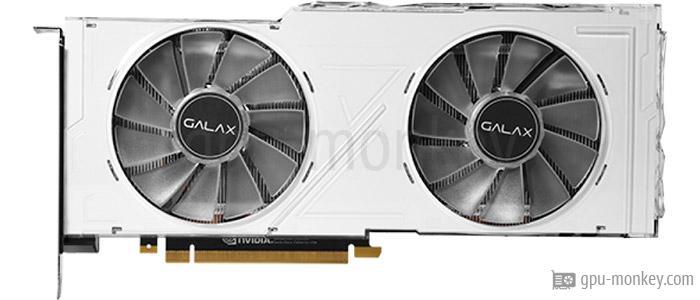

GPU comparison with benchmarksIn the gpu comparison between the MSI Radeon RX Vega 56 8G and the GALAX GeForce RTX 2070 OC White, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe MSI Radeon RX Vega 56 8G is based on the AMD RX Vega 56 and has 3584 texture shaders and 56 execution units. GALAX GeForce RTX 2070 OC White is based on NVIDIA GeForce RTX 2070, which has 2304 shaders and 36 execution units. |
||
MSI Radeon RX Vega 56 8G | GPU | GALAX GeForce RTX 2070 OC White |
AMD RX Vega 56 | Based on | NVIDIA GeForce RTX 2070 |
Vega 10 XL | GPU Chip | TU106 |
GCN 5 | Architecture | Turing |
56 | Streaming Multiprocessors | 36 |
3584 | Shader | 2304 |
64 | Render Output Units | 64 |
256 | Texture Units | 144 |
0 | Raytracing Cores | 36 |
MemoryThe MSI Radeon RX Vega 56 8G has 8 GB of graphics memory of the type HBM2 and achieves a memory bandwidth of 410 GB/s. The GALAX GeForce RTX 2070 OC White can access 8 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 448 GB/s. |
||
8 GB | Memory Size | 8 GB |
HBM2 | Memory Type | GDDR6 |
0.800 GHz | Memory Clock | 1.750 GHz |
1.6 Gbps | Memory Speed | 14.0 Gbps |
410 GB/s | Memory bandwidth | 448 GB/s |
2048 bit | Memory Interface | 256 bit |
Clock SpeedsThe MSI Radeon RX Vega 56 8G clocks in the base with up to 1.156 GHz. The base frequency of the GALAX GeForce RTX 2070 OC White is 1.410 GHz. |
||
1.156 GHz | Base Clock | 1.410 GHz |
1.471 GHz | Boost Clock | 1.815 GHz |
Avg (Game) Clock | ||
Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI Radeon RX Vega 56 8G is 210 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The GALAX GeForce RTX 2070 OC White has a TDP of 175 W and is supplied with the required energy via 1 x 6-Pin, 1 x 8-Pin PCIe power connectors. |
||
210 W | TDP | 175 W |
-- | TDP (up) | -- |
100 °C | Tjunction max | 89 °C |
2 x 8-Pin | PCIe-Power | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe MSI Radeon RX Vega 56 8G has a total of 1 Radial fans. The GALAX GeForce RTX 2070 OC White has 2 Axial fans to cool the GPU and memory. |
||
Radial | Fan-Type | Axial |
1 x 70 mm | Fan 1 | 2 x 90 mm |
-- | Fan 2 | -- |
Air cooling | Cooler-Type | Air cooling |
37 dB | Noise (Idle) | 0 dB |
49 dB | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the MSI Radeon RX Vega 56 8G. The GALAX GeForce RTX 2070 OC White supports a maximum of 4 screens. |
||
4 | Max. Displays | 4 |
-- | HDCP-Version | 2.2 |
1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
3x DP v1.4 | DP Ports | 3x DP v1.4a |
-- | DVI Ports | -- |
-- | VGA Ports | -- |
-- | USB-C Ports | 1 |
FeaturesetThe MSI Radeon RX Vega 56 8G supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the GALAX GeForce RTX 2070 OC White is 7680x4320 pixels. |
||
7680x4320 | Max. resolution | 7680x4320 |
12_1 | DirectX | 12_2 (Ultimate) |
No | Raytracing | Yes |
Yes | DLSS / FSR | Yes |
No LED lighting | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
Decode / Encode | h264 | Decode / Encode |
Decode / Encode | h265 / HEVC | Decode / Encode |
No | AV1 | No |
Decode | VP8 | Decode |
Decode / Encode | VP9 | Decode |
DimensionsThe MSI Radeon RX Vega 56 8G is 280 mm long, 127 mm high and 40 mm wide. The GALAX GeForce RTX 2070 OC White is 283 mm long, 139 mm high and 41 mm wide. |
||
280 mm | Length | 283 mm |
127 mm | Height | 139 mm |
40 mm | Width | 41 mm |
2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
1090 g | Weight | -- |
PCIe 3.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataThe MSI Radeon RX Vega 56 8G was released in Q3/2017 at a price of 399 $ (Reference). The GALAX GeForce RTX 2070 OC White was introduced in Q4/2018 at a price of 499 $ (Reference). |
||
-- | Part-no | 27NSL6UCV3WO |
Q3/2017 | Release date | Q4/2018 |
399 $ (Reference) | Launch Price | 499 $ (Reference) |
14 nm | Structure size | 12 nm |
data sheet | Documents | data sheet |
