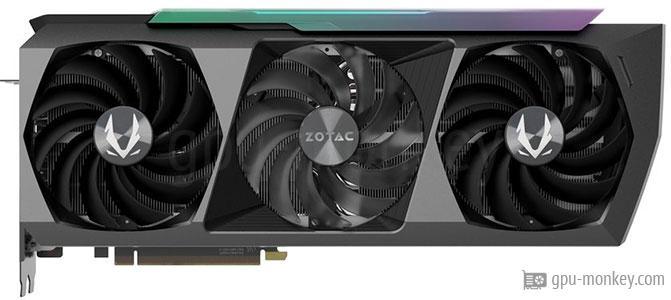

ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
vs
Colorful GeForce GTX 1060 NB 3G-V
GPU comparison with benchmarksIn the gpu comparison between the ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo and the Colorful GeForce GTX 1060 NB 3G-V, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo is based on the NVIDIA GeForce RTX 3080 Ti and has 10240 texture shaders and 80 execution units. Colorful GeForce GTX 1060 NB 3G-V is based on NVIDIA GeForce GTX 1060 3GB, which has 1152 shaders and 9 execution units. |
||
| ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo | GPU | Colorful GeForce GTX 1060 NB 3G-V |
| NVIDIA GeForce RTX 3080 Ti | Based on | NVIDIA GeForce GTX 1060 3GB |
| GA102-225-A1 | GPU Chip | GP106-300-A1 |
| Ampere | Architecture | Pascal |
| 80 | Streaming Multiprocessors | 9 |
| 10240 | Shader | 1152 |
| 112 | Render Output Units | 48 |
| 320 | Texture Units | 72 |
| 80 | Raytracing Cores | 0 |
MemoryThe ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo has 12 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 912 GB/s. The Colorful GeForce GTX 1060 NB 3G-V can access 3 GB GDDR5 graphics memory and thus achieves a memory bandwidth of 192 GB/s. |
||
| 12 GB | Memory Size | 3 GB |
| GDDR6X | Memory Type | GDDR5 |
| 1.188 GHz | Memory Clock | 2.002 GHz |
| 19.0 Gbps | Memory Speed | 8.0 Gbps |
| 912 GB/s | Memory bandwidth | 192 GB/s |
| 384 bit | Memory Interface | 192 bit |
Clock SpeedsThe ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo clocks in the base with up to 1.365 GHz. The base frequency of the Colorful GeForce GTX 1060 NB 3G-V is 1.544 GHz. |
||
| 1.365 GHz | Base Clock | 1.544 GHz |
| 1.785 GHz | Boost Clock | 1.759 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo is 400 W. The graphics card is supplied with energy via the 3 x 8-Pin connector. The Colorful GeForce GTX 1060 NB 3G-V has a TDP of 120 W and is supplied with the required energy via 1 x 6-Pin PCIe power connectors. |
||
| 400 W | TDP | 120 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 94 °C |
| 3 x 8-Pin | PCIe-Power | 1 x 6-Pin |
Cooler & FansThe ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo has a total of 3 Axial fans. The Colorful GeForce GTX 1060 NB 3G-V has 2 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 100 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | dB |
| -- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo. The Colorful GeForce GTX 1060 NB 3G-V supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.2 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.0b |
| 3x DP v1.4a | DP Ports | 1x DP v1.4 |
| -- | DVI Ports | 2 |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the Colorful GeForce GTX 1060 NB 3G-V is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_1 |
| Yes | Raytracing | No |
| Yes | DLSS / FSR | Yes |
| ZOTAC SPECTRA | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | No |
| Decode | VP8 | No |
| Decode | VP9 | Decode |
DimensionsThe ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo is 353 mm long, 145 mm high and 60 mm wide. The Colorful GeForce GTX 1060 NB 3G-V is -- long, -- high and -- wide. |
||
| 353 mm | Length | -- |
| 145 mm | Height | -- |
| 60 mm | Width | -- |
| 3 PCIe-Slots | Width (Slots) | -- |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo was released in Q3/2021 at a price of 1,199 $ (Reference). The Colorful GeForce GTX 1060 NB 3G-V was introduced in Q3/2016 at a price of 199 $ (Reference). |
||
| ZT-A30810B-10P | Part-no | -- |
| Q3/2021 | Release date | Q3/2016 |
| 1,199 $ (Reference) | Launch Price | 199 $ (Reference) |
| 8 nm | Structure size | 16 nm |
| data sheet | Documents | data sheet |
1.365 GHz, 12 GB (400 W TDP)
Buy this graphic card at amazon!
1.544 GHz, 3 GB (120 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
|
Colorful GeForce GTX 1060 NB 3G-V
3 GB GDDR5 |
||
Port Royal (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
|
|
Colorful GeForce GTX 1060 NB 3G-V
3 GB GDDR5 |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
|
|
Colorful GeForce GTX 1060 NB 3G-V
3 GB GDDR5 |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
|
|
Colorful GeForce GTX 1060 NB 3G-V
3 GB GDDR5 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
|
|
Colorful GeForce GTX 1060 NB 3G-V
3 GB GDDR5 |
||
Geekbench 6 - Vulkan
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
|
|
Colorful GeForce GTX 1060 NB 3G-V
3 GB GDDR5 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti AMP Extreme Holo
12 GB GDDR6X |
||
|
|
Colorful GeForce GTX 1060 NB 3G-V
3 GB GDDR5 |
||
