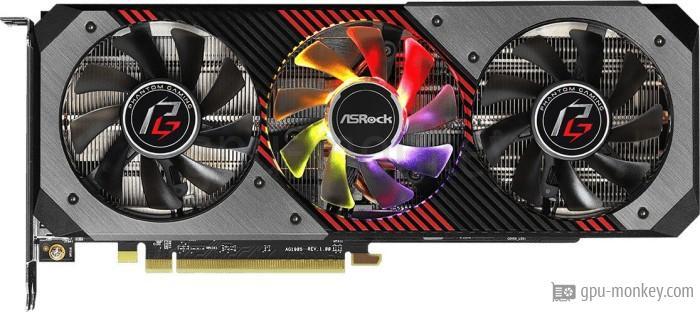

ASRock Radeon RX 5700 Phantom Gaming D 8G OC Benchmark and Specs

The ASRock Radeon RX 5700 Phantom Gaming D 8G OC has 36 execution units with 2304 shaders. This gives the graphics card a theoretical FP32 computing power of 8.07 TFLOPS.

Based on

AMD Radeon RX 5700

GPU Chip

Navi 10 (RDNA 1)

Streaming Multiprocessors

36

Shader

2304

Render Output Units

64

Texture Units

144

The ASRock Radeon RX 5700 Phantom Gaming D 8G OC is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps.

Memory Size

8 GB

Memory Type

GDDR6

Memory Clock

1.750 GHz

Memory Speed

14.0 Gbps

Memory bandwidth

448 GB/s

Memory Interface

256 bit

The base frequency of this graphics card is 1.610 GHz and the manufacturer specifies the maximum turbo clock as 1.750 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock

1.610 GHz+10 %

Boost Clock

1.750 GHz+1 %

Avg (Game) Clock

1.725 GHz+6 %

Overclocking

Yes

The ASRock Radeon RX 5700 Phantom Gaming D 8G OC is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 180 W.

TDP

180 W

TDP (up)

220 W

Tjunction max

98 °C

PCIe-Power

2 x 8-Pin

Graphics processor and graphics memory of the ASRock Radeon RX 5700 Phantom Gaming D 8G OC are cooled by a Air cooling.

Fan-Type

Axial

Fan 1

2 x 90 mm

Fan 2

1 x 80 mm

Cooler-Type

Air cooling

Noise (Idle)

0 dB / Silent

Noise (Load)

42 dB

Up to 4 monitors can be operated with the ASRock Radeon RX 5700 Phantom Gaming D 8G OC.

Max. Displays

4

HDCP

2.3

HDMI

1x HDMI 2.0b

DisplayPort

3x DP 1.4

With the ASRock Radeon RX 5700 Phantom Gaming D 8G OC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution

7680x4320

DirectX

12_2 (Ultimate)

Raytracing

No

DLSS / FSR

Yes

LED

Addressable LED

This area lists the video codecs that the ASRock Radeon RX 5700 Phantom Gaming D 8G OC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264

Decode / Encode

h265 / HEVC

Decode / Encode

VP8

Decode

VP9

Decode / Encode

AV1

No

The ASRock Radeon RX 5700 Phantom Gaming D 8G OC needs the space of 3 PCIe-Slots in a case. It is 287 mm long, 127 mm high and 53 mm wide.

Length

287 mm

Height

127 mm

Width

53 mm

Width (Slots)

3 PCIe-Slots

SFF-Ready

No

The ASRock Radeon RX 5700 Phantom Gaming D 8G OC was released in Q3/2019 at a price of 449 $. The graphics card manufactured in 7 nm is connected to the system via PCIe 4.0 x 16 lanes.

GPU Interface

PCIe 4.0 x 16

Release date

Q3/2019

Launch Price

449 $

Structure size

7 nm
