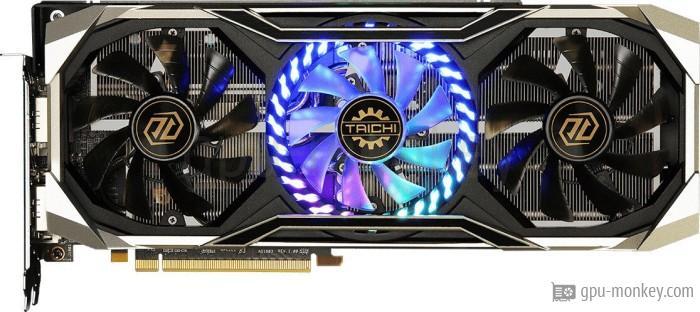

ASRock Radeon RX 5700 XT Taichi X 8G OC+
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the ASRock Radeon RX 5700 XT Taichi X 8G OC+. The graphics card is based on the AMD Radeon RX 5700 XT (RDNA 1) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 448 GB/s. The ASRock Radeon RX 5700 XT Taichi X 8G OC+ has 40 execution units with 2560 shaders.
GPUThe ASRock Radeon RX 5700 XT Taichi X 8G OC+ has 2560 shaders and 40 execution units. The graphics card thus achieves a theoretical FP32 computing power of 10.45 TFLOPS. |
|
| Based on: | AMD Radeon RX 5700 XT |
| GPU Chip: | Navi 10 XT (RDNA 1) |
| Streaming Multiprocessors: | 40 |
| Shader: | 2560 |
| Render Output Units: | 64 |
| Texture Units: | 160 |
| Raytracing Cores: | 0 |
MemoryThe ASRock Radeon RX 5700 XT Taichi X 8G OC+ can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 448 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 448 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the ASRock Radeon RX 5700 XT Taichi X 8G OC+ is 1.885 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.885 GHz + 17 % |
| Boost Clock: | 2.040 GHz+ 7 % |
| Avg (Game) Clock: | 2.000 GHz+ 14 % |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASRock Radeon RX 5700 XT Taichi X 8G OC+ is 245 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. |
|
| TDP: | 245 W+ 9 % |
| TDP (up): | 335 W |
| Tjunction max: | 99 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe ASRock Radeon RX 5700 XT Taichi X 8G OC+ has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | 1 x 80 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 44 dB |
ConnectivityUp to 4 screens can be connected to the ASRock Radeon RX 5700 XT Taichi X 8G OC+. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 2x HDMI v2.0b |
| DP Ports: | 4x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe ASRock Radeon RX 5700 XT Taichi X 8G OC+ has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsThe video codecs accelerated in hardware by the ASRock Radeon RX 5700 XT Taichi X 8G OC+ reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode / Encode |
| AV1: | No |
DimensionsThe ASRock Radeon RX 5700 XT Taichi X 8G OC+ is 325 mm long and 146 mm high. With a width of 54 mm, the graphics card requires 3 PCIe-Slots in the case. |
|
| Length: | 325 mm |
| Height: | 146 mm |
| Width: | 54 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe ASRock Radeon RX 5700 XT Taichi X 8G OC+ made in 7 nm was published in Q3/2019 for 469 $. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q3/2019 |
| Launch Price: | 469 $ |
| Structure size: | 7 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.885 GHz, 8 GB (245 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
|
AMD Radeon RX 5700 XT
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700 XT
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700 XT
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASRock Radeon RX 5700 XT Taichi X 8G OC+
8 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,638 entries
4,638 entries
Cyberpunk 2077
2,453 entries
2,453 entries
Shadow of the Tomb Raider
4,559 entries
4,559 entries
Battlefield 5
3,937 entries
3,937 entries
GTA 5 Benchmark
2,499 entries
2,499 entries
Crypto-Mining Ethereum Hashrate
3,447 entries
3,447 entries
Crypto-Mining Ergo Hashrate
3,673 entries
3,673 entries
Crypto-Mining Ravencoin Hashrate
3,600 entries
3,600 entries
Crypto-Mining Vertcoin Hashrate
2,445 entries
2,445 entries
FP32 Performance
5,094 entries
5,094 entries
Recommended power supplies for this graphics card
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
EVGA SuperNOVA 650 P2 - 650 W | 4 x | 180 $ | |
|
|
EVGA SuperNOVA 650 G+ - 650 W | 4 x | 130 $ | |
|
Corsair TX-M Series TX650M 2017 - 650 W | 4 x | 102 $ | |
|
|
EVGA SuperNOVA 650 G3 - 650 W | 4 x | 130 $ | |
|
be quiet! Straight Power 11 - 650 W | 4 x | 125 $ | |
|
|
EVGA SuperNOVA 650 G5 - 650 W | 3 x | 140 $ | |
|
|
be quiet! Straight Power 11 Platinum - 650 W | 4 x | 139 $ | |
|
|
EVGA SuperNOVA 650 GT - 650 W | 3 x | 75 $ | |
|
|
EVGA SuperNOVA 650 GA - 650 W | 3 x | 130 $ | |
|
|
be quiet! Pure Power 11 FM - 650 W | 4 x | 99 $ |
