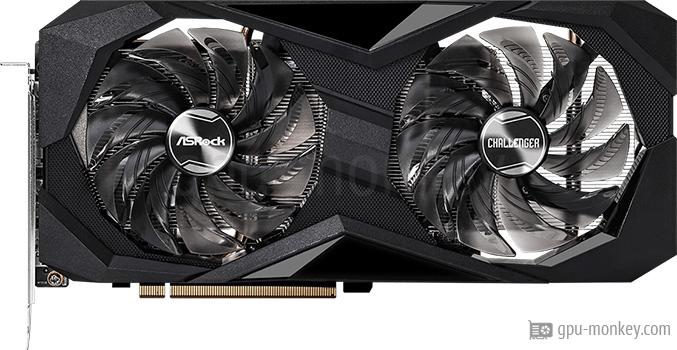

ASRock Radeon RX 6650 XT Challenger D 8GB OC
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the ASRock Radeon RX 6650 XT Challenger D 8GB OC. The graphics card is based on the AMD Radeon RX 6650 XT (RDNA 2) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 280 GB/s. The ASRock Radeon RX 6650 XT Challenger D 8GB OC has 32 execution units with 2048 shaders.
GPUThe ASRock Radeon RX 6650 XT Challenger D 8GB OC has 2048 shaders and 32 execution units. The graphics card thus achieves a theoretical FP32 computing power of 10.93 TFLOPS. |
|
| Based on: | AMD Radeon RX 6650 XT |
| GPU Chip: | Navi 23 KXT (RDNA 2) |
| Streaming Multiprocessors: | 32 |
| Shader: | 2048 |
| Render Output Units: | 64 |
| Texture Units: | 128 |
| Raytracing Cores: | 32 |
MemoryThe ASRock Radeon RX 6650 XT Challenger D 8GB OC can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 280 GB/s on a 128 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 2.190 GHz |
| Memory Speed: | 17.5 Gbps |
| Memory bandwidth: | 280 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base clock frequency of the ASRock Radeon RX 6650 XT Challenger D 8GB OC is 2.106 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 2.106 GHz + 2 % |
| Boost Clock: | 2.669 GHz+ 1 % |
| Avg (Game) Clock: | 2.447 GHz+ 2 % |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASRock Radeon RX 6650 XT Challenger D 8GB OC is 180 W. The graphics card is supplied with energy via the 1 x 8-Pin connector. |
|
| TDP: | 180 W+ 2 % |
| TDP (up): | -- |
| Tjunction max: | 100 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe ASRock Radeon RX 6650 XT Challenger D 8GB OC has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the ASRock Radeon RX 6650 XT Challenger D 8GB OC. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe ASRock Radeon RX 6650 XT Challenger D 8GB OC has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the ASRock Radeon RX 6650 XT Challenger D 8GB OC reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode |
DimensionsThe ASRock Radeon RX 6650 XT Challenger D 8GB OC is 269 mm long and 132 mm high. With a width of 41 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 269 mm |
| Height: | 132 mm |
| Width: | 41 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 640 g |
Additional dataThe ASRock Radeon RX 6650 XT Challenger D 8GB OC made in 7 nm was published in Q2/2022 for 399 $ (Reference). |
|
| GPU Interface: | PCIe 4.0 x 8 |
| Release date: | Q2/2022 |
| Launch Price: | 399 $ (Reference) |
| Structure size: | 7 nm |
| Part-no: | RX6650XT CLD 8GO |
| Documents: | data sheet |
2.106 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
Geekbench 6 - Metal
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
|
|
AMD Radeon RX 6650 XT
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASRock Radeon RX 6650 XT Challenger D 8GB OC
8 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,148 entries
5,148 entries
Cyberpunk 2077
2,942 entries
2,942 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ethereum Hashrate
3,506 entries
3,506 entries
FP32 Performance
5,522 entries
5,522 entries
