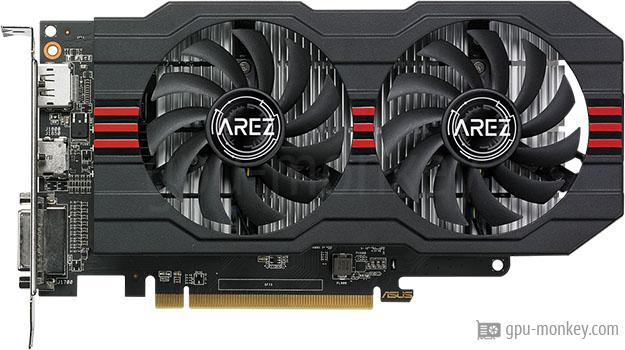

ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5. The graphics card is based on the AMD Radeon RX 560 (14 CU) (GCN 4) and has 4 GB GDDR5 graphics memory with a memory bandwidth of 96 GB/s. The ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 has 14 execution units with 896 shaders.
GPUThe ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 has 896 shaders and 14 execution units. The graphics card thus achieves a theoretical FP32 computing power of 2.15 TFLOPS. |
|
| Based on: | AMD Radeon RX 560 (14 CU) |
| GPU Chip: | Polaris 21 XL (GCN 4) |
| Streaming Multiprocessors: | 14 |
| Shader: | 896 |
| Render Output Units: | 16 |
| Texture Units: | 56 |
| Raytracing Cores: | 0 |
MemoryThe ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 can use 4 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 96 GB/s on a 128 bit wide memory interface. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.500 GHz |
| Memory Speed: | 6.0 Gbps |
| Memory bandwidth: | 96 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base clock frequency of the ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 is 1.149 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.149 GHz + 5 % |
| Boost Clock: | 1.197 GHz+ 2 % |
| Avg (Game) Clock: | 1.187 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 is 45 W. The graphics card is supplied with energy via the connector. |
|
| TDP: | 45 W |
| TDP (up): | -- |
| Tjunction max: | 97 °C |
| PCIe-Power: | |
Cooler & FansThe ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 75 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 1x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 has a maximum resolution of 5120x2880 pixels. The graphics card supports the DirectX 12 standard. |
|
| Max. resolution: | 5120x2880 |
| DirectX: | 12 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 is 220 mm long and 115 mm high. With a width of 39 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 220 mm |
| Height: | 115 mm |
| Width: | 39 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5 made in 14 nm was published in Q3/2017 for 99 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 8 |
| Release date: | Q3/2017 |
| Launch Price: | 99 $ (Reference) |
| Structure size: | 14 nm |
| Part-no: | AREZ-RX560-O4G-EVO |
| Documents: | data sheet |
1.149 GHz, 4 GB (45 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
4 GB GDDR5 |
||
|
AMD Radeon RX 560 (14 CU)
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
4 GB GDDR5 |
||
|
|
AMD Radeon RX 560 (14 CU)
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
4 GB GDDR5 |
||
|
|
AMD Radeon RX 560 (14 CU)
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
4 GB GDDR5 |
||
|
|
AMD Radeon RX 560 (14 CU)
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
4 GB GDDR5 |
||
|
|
AMD Radeon RX 560 (14 CU)
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
4 GB GDDR5 |
||
|
|
AMD Radeon RX 560 (14 CU)
Average of gpu group |
||
Geekbench 6 - Metal
|
|
ASUS AREZ Radeon RX 560 Evo OC Edition 4GB GDDR5
4 GB GDDR5 |
||
|
|
AMD Radeon RX 560 (14 CU)
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
