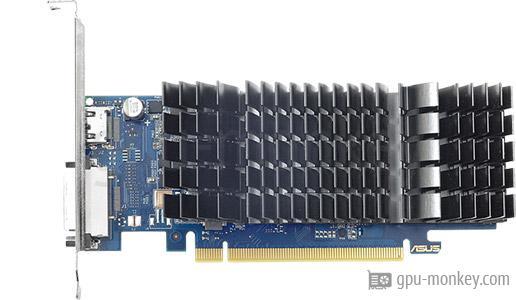

ASUS GeForce GT 1030 silent DDR4
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the ASUS GeForce GT 1030 silent DDR4. The graphics card is based on the NVIDIA GeForce GT 1030 (DDR4) (Pascal) and has 2 GB DDR4 graphics memory with a memory bandwidth of 17 GB/s. The ASUS GeForce GT 1030 silent DDR4 has 3 execution units with 384 shaders.
GPUThe ASUS GeForce GT 1030 silent DDR4 has 384 shaders and 3 execution units. The graphics card thus achieves a theoretical FP32 computing power of 1.09 TFLOPS. |
|
| Based on: | NVIDIA GeForce GT 1030 (DDR4) |
| GPU Chip: | GP108-310-A1 (Pascal) |
| Streaming Multiprocessors: | 3 |
| Shader: | 384 |
| Render Output Units: | 16 |
| Texture Units: | 24 |
| Raytracing Cores: | 0 |
MemoryThe ASUS GeForce GT 1030 silent DDR4 can use 2 GB graphics memory of the type DDR4. The graphics card thus achieves a memory bandwidth of 17 GB/s on a 64 bit wide memory interface. |
|
| Memory Size: | 2 GB |
| Memory Type: | DDR4 |
| Memory Clock: | 1.050 GHz |
| Memory Speed: | 2.1 Gbps |
| Memory bandwidth: | 17 GB/s |
| Memory Interface: | 64 bit |
Clock SpeedsThe base clock frequency of the ASUS GeForce GT 1030 silent DDR4 is 1.151 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.151 GHz |
| Boost Clock: | 1.417 GHz + 3 % |
| Avg (Game) Clock: | 1.379 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASUS GeForce GT 1030 silent DDR4 is 30 W. The graphics card is supplied with energy via the connector. |
|
| TDP: | 30 W+ 50 % |
| TDP (up): | -- |
| Tjunction max: | 97 °C |
| PCIe-Power: | |
Cooler & FansThe ASUS GeForce GT 1030 silent DDR4 has a total of 0 -- fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | -- |
| Fan 1: | -- |
| Fan 2: | -- |
| Cooler-Type: | Passive cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 0 dB |
ConnectivityUp to 3 screens can be connected to the ASUS GeForce GT 1030 silent DDR4. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | -- |
| DP Ports: | -- |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe ASUS GeForce GT 1030 silent DDR4 has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the ASUS GeForce GT 1030 silent DDR4 reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode |
| h265 / HEVC: | Decode |
| VP8: | No |
| VP9: | Decode |
| AV1: | No |
DimensionsThe ASUS GeForce GT 1030 silent DDR4 is 173 mm long and 69 mm high. With a width of 40 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 173 mm |
| Height: | 69 mm |
| Width: | 40 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe ASUS GeForce GT 1030 silent DDR4 made in 14 nm was published in Q1/2018 for 79 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 4 |
| Release date: | Q1/2018 |
| Launch Price: | 79 $ (Reference) |
| Structure size: | 14 nm |
| Part-no: | GT1030-SL-2GD4-BRK |
| Documents: | data sheet |
1.151 GHz, 2 GB (30 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS GeForce GT 1030 silent DDR4
2 GB DDR4 |
||
|
NVIDIA GeForce GT 1030 (DDR4)
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS GeForce GT 1030 silent DDR4
2 GB DDR4 |
||
|
|
NVIDIA GeForce GT 1030 (DDR4)
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS GeForce GT 1030 silent DDR4
2 GB DDR4 |
||
|
|
NVIDIA GeForce GT 1030 (DDR4)
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS GeForce GT 1030 silent DDR4
2 GB DDR4 |
||
|
|
NVIDIA GeForce GT 1030 (DDR4)
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS GeForce GT 1030 silent DDR4
2 GB DDR4 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,148 entries
5,148 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
FP32 Performance
5,522 entries
5,522 entries
