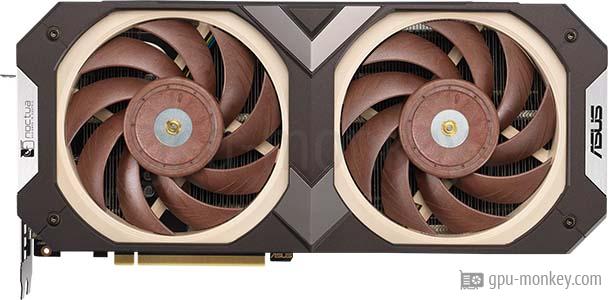

ASUS GeForce RTX 3070 Noctua OC Edition LHR


Last updated:

Benchmark and Specs

Here you will find all technical data as well as various benchmarks of the ASUS GeForce RTX 3070 Noctua OC Edition LHR. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the ASUS GeForce RTX 3070 Noctua OC Edition LHR is 1.845 GHz, so the graphics card achieves an FP32 computing power of 21.72 TFLOPS.

GPU

The ASUS GeForce RTX 3070 Noctua OC Edition LHR is equipped with 46 execution and 5888 shader units. With single precision, a theoretical FP32 computing power of 21.72 TFLOPS is achieved.

Based on: NVIDIA GeForce RTX 3070 LHR
GPU Chip: GA104-302-A1 (Ampere)
Streaming Multiprocessors: 46
Shader: 5888
Render Output Units: 96
Texture Units: 184
Raytracing Cores: 46

Memory

The ASUS GeForce RTX 3070 Noctua OC Edition LHR has a 256 bit wide memory interface, with which a memory bandwidth of 448 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card.

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 448 GB/s
Memory Interface: 256 bit

Clock Speeds

The manufacturer specifies the memory clock of the ASUS GeForce RTX 3070 Noctua OC Edition LHR with 1.500 GHz (base clock) or with 1.845 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.

Base Clock: 1.500 GHz
Boost Clock: 1.845 GHzDeviation vs GPU group+ 7 %
Avg (Game) Clock: 1.815 GHz
Overclocking: Yes

Thermal Design

The ASUS GeForce RTX 3070 Noctua OC Edition LHR has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 93 °C.

TDP: 220 W
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The ASUS GeForce RTX 3070 Noctua OC Edition LHR is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 2 x 120 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the ASUS GeForce RTX 3070 Noctua OC Edition LHR, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 2x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The ASUS GeForce RTX 3070 Noctua OC Edition LHR supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

Here is a list of which video codecs can be decoded / encoded by the ASUS GeForce RTX 3070 Noctua OC Edition LHR in hardware in order to minimize the processor load.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The dimensions of the ASUS GeForce RTX 3070 Noctua OC Edition LHR are 310 mm in length, 147 mm in height and 88 mm in width. Thus 5 PCIe-Slots are needed in a case.

Length: 310 mm
Height: 147 mm
Width: 88 mm
Width (Slots): 5 PCIe-Slots
Weight: --

Additional data

The ASUS GeForce RTX 3070 Noctua OC Edition LHR is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q4/2021.

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2021
Launch Price: 499 $ (Reference)
Structure size: 8 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
48 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
46 fps (avg)

2560x1440 (1440p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
58 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
55 fps (avg)

1920x1080 (1080p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
87 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
82 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
24 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
22 fps (avg)

2560x1440 (1440p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
53 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
50 fps (avg)

1920x1080 (1080p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
105 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
98 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
83 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
81 fps (avg)

2560x1440 (1440p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
150 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
141 fps (avg)

1920x1080 (1080p)

ASUS GeForce RTX 3070 Noctua OC Edition LHR ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6
199 fps (avg)
NVIDIA GeForce RTX 3070 LHR NVIDIA GeForce RTX 3070 LHR
Average of gpu group
188 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
