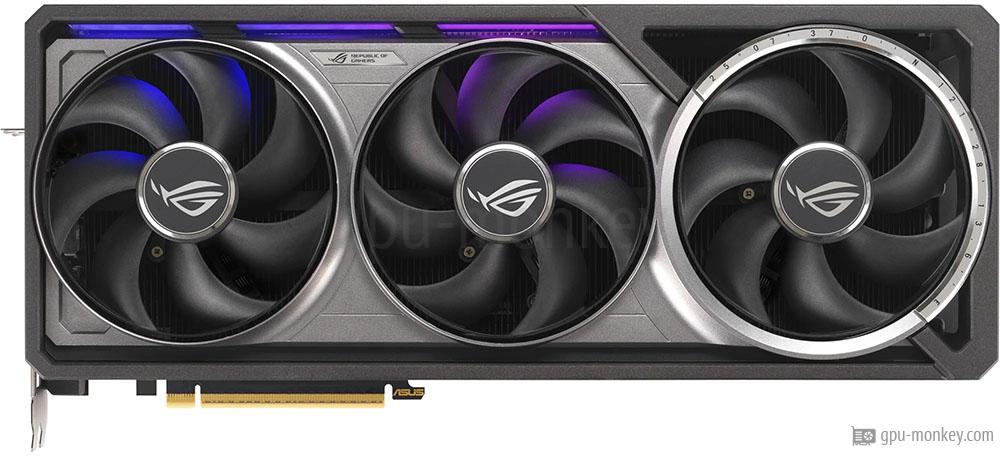

All technical data and various benchmarks of the ASUS ROG Astral GeForce RTX 5090 OC Edition are listed on this page. The graphics card is based on the GB202-300-A1 (Blackwell) graphics chip, which is manufactured with a structure width of 5 nm. The ASUS ROG Astral GeForce RTX 5090 OC Edition can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPU
The ASUS ROG Astral GeForce RTX 5090 OC Edition has 170 execution units with 21760 shaders. This gives the graphics card a theoretical FP32 computing power of 113.64 TFLOPS.
The ASUS ROG Astral GeForce RTX 5090 OC Edition is equipped with 32 GB graphics memory of the type GDDR7. The memory clock of the graphics card is 1.750 GHz and the speed is 28 Gbps.
Memory Size:
32 GB
Memory Type:
GDDR7
Memory Clock:
1.750 GHz
Memory Speed:
28.0 Gbps
Memory bandwidth:
1792 GB/s
Memory Interface:
512 bit
Clock Speeds
The base frequency of this graphics card is 2.017 GHz and the manufacturer specifies the maximum turbo clock as 2.610 GHz. If supported (see below), the performance can be further increased by overclocking.
Base Clock:
2.017 GHz
Boost Clock:
2.610 GHz+ 8 %
Avg (Game) Clock:
Overclocking:
Yes
Thermal Design
The ASUS ROG Astral GeForce RTX 5090 OC Edition is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is --.
TDP:
575 W (Reference)
TDP (up):
--
Tjunction max:
90 °C
PCIe-Power:
1 x 16-Pin
Cooler & Fans
Graphics processor and graphics memory of the ASUS ROG Astral GeForce RTX 5090 OC Edition are cooled by a Air cooling.
Fan-Type:
Axial
Fan 1:
3 x 110 mm
Fan 2:
--
Cooler-Type:
Air cooling
Noise (Idle):
0 dB / Silent
Noise (Load):
--
Connectivity
Up to 4 monitors can be operated with the ASUS ROG Astral GeForce RTX 5090 OC Edition.
Max. Displays:
4
HDCP-Version:
2.3
HDMI Ports:
2x HDMI v2.1b
DP Ports:
3x DP v2.1b
DVI Ports:
--
VGA Ports:
--
USB-C Ports:
--
Featureset
With the ASUS ROG Astral GeForce RTX 5090 OC Edition it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
Max. resolution:
7680x4320
DirectX:
12_2 (Ultimate)
Raytracing:
Yes
DLSS / FSR:
Yes
LED:
ASUS Aura Sync
Supported Video Codecs
This area lists the video codecs that the ASUS ROG Astral GeForce RTX 5090 OC Edition can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
h264:
Decode / Encode
h265 / HEVC:
Decode / Encode
VP8:
Decode / Encode
VP9:
Decode / Encode
AV1:
Decode / Encode
Dimensions
The ASUS ROG Astral GeForce RTX 5090 OC Edition needs the space of 4 PCIe-Slots in a case. It is 358 mm long, 149 mm high and 76 mm wide.
Length:
358 mm
Height:
149 mm
Width:
76 mm
Width (Slots):
4 PCIe-Slots
Weight:
--
SFF-Ready:
No
Additional data
The ASUS ROG Astral GeForce RTX 5090 OC Edition was released in Q1/2025 at a price of 2,329 $ (Reference). The graphics card manufactured in 5 nm is connected to the system via PCIe 5 x 16 lanes.
Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 3.5 stars (4 ratings). Rate it now:
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.
We use the following benchmarks to measure the performance of a graphics card:
