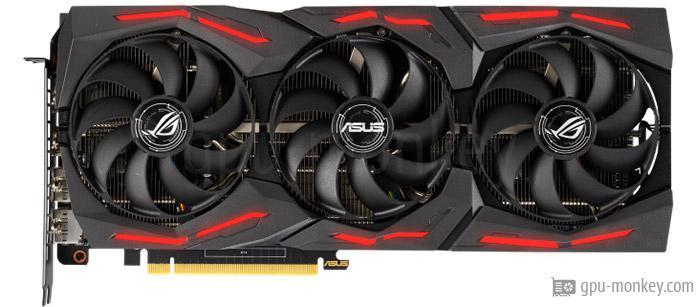

ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition
Benchmark and Specs


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition. The graphics card is based on the NVIDIA GeForce RTX 2060 (Turing) and has 6 GB GDDR6 graphics memory with a memory bandwidth of 336 GB/s. The ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition has 30 execution units with 1920 shaders.

GPU

The ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition has 1920 shaders and 30 execution units. The graphics card thus achieves a theoretical FP32 computing power of 6.68 TFLOPS.

Based on: NVIDIA GeForce RTX 2060
GPU Chip: TU106 (Turing)
Streaming Multiprocessors: 30
Shader: 1920
Render Output Units: 48
Texture Units: 120
Raytracing Cores: 30

Memory

The ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition can use 6 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 336 GB/s on a 192 bit wide memory interface.

Memory Size: 6 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 336 GB/s
Memory Interface: 192 bit

Clock Speeds

The base clock frequency of the ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition is 1.365 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.365 GHz
Boost Clock: 1.740 GHzDeviation vs GPU group+ 4 %
Avg (Game) Clock: 1.710 GHz
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition is 160 W. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector.

TDP: 160 W
TDP (up): --
Tjunction max: 88 °C
PCIe-Power: 1 x 6-Pin, 1 x 8-Pin

Cooler & Fans

The ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 90 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 2x HDMI v2.0b
DP Ports: 2x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: ASUS Aura Sync

Supported Video Codecs

The video codecs accelerated in hardware by the ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: No

Dimensions

The ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition is 300 mm long and 132 mm high. With a width of 50 mm, the graphics card requires 3 PCIe-Slots in the case.

Length: 300 mm
Height: 132 mm
Width: 50 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition made in 12 nm was published in Q1/2020 for 349 $ (Reference).

GPU Interface: PCIe 3.0 x 16
Release date: Q1/2020
Launch Price: 349 $ (Reference)
Structure size: 12 nm
Part-no: ROG-STRIX-RTX2060-A6G-EVO-GAMING
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition
6 GB GDDR6
26 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
26 fps (avg)

2560x1440 (1440p)

ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition
6 GB GDDR6
32 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
32 fps (avg)

1920x1080 (1080p)

ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition
6 GB GDDR6
48 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
47 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition
6 GB GDDR6
46 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
43 fps (avg)

2560x1440 (1440p)

ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition
6 GB GDDR6
86 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
76 fps (avg)

1920x1080 (1080p)

ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition ASUS ROG Strix GeForce RTX 2060 EVO Advanced Edition
6 GB GDDR6
122 fps (avg)
NVIDIA GeForce RTX 2060 NVIDIA GeForce RTX 2060
Average of gpu group
110 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:

Recommended power supplies for this graphics card

Power Supply PCIe 8 Pin (6+2) Launch Price
Corsair TX-M Series TX550M 2017 Corsair TX-M Series TX550M 2017 - 550 W 2 x 99 $
EVGA SuperNOVA 550 G3 EVGA SuperNOVA 550 G3 - 550 W 3 x 100 $
be quiet! Straight Power 11 be quiet! Straight Power 11 - 550 W 2 x 115 $
be quiet! Straight Power 11 Platinum be quiet! Straight Power 11 Platinum - 550 W 2 x 125 $
EVGA SuperNOVA 550 GA EVGA SuperNOVA 550 GA - 550 W 3 x 120 $
be quiet! Pure Power 11 FM be quiet! Pure Power 11 FM - 550 W 2 x 89 $
Corsair RMx Series RM550x 2021 Corsair RMx Series RM550x 2021 - 550 W 2 x 119 $
Corsair TX-M Series TX550M 2021 Corsair TX-M Series TX550M 2021 - 550 W 2 x 82 $
Seasonic G12 GC-550 Seasonic G12 GC-550 - 550 W 2 x 62 $
Seasonic PRIME FANLESS TX-600 Seasonic PRIME FANLESS TX-600 - 600 W 4 x 275 $
