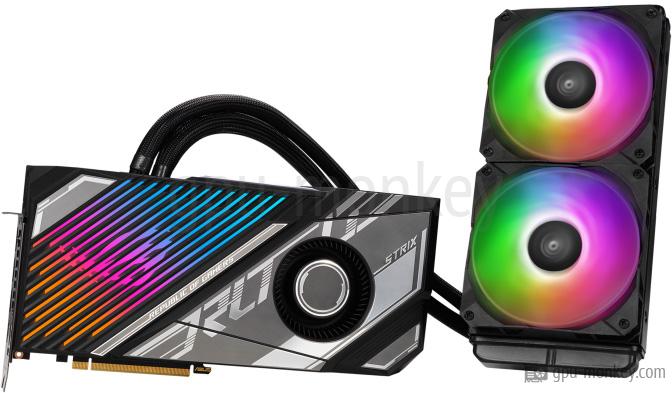

ASUS ROG Strix LC GeForce RTX 4090
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the ASUS ROG Strix LC GeForce RTX 4090 are listed on this page. The graphics card is based on the AD102-300-A1 (Ada Lovelace) graphics chip, which is manufactured with a structure width of 5 nm. The ASUS ROG Strix LC GeForce RTX 4090 can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe ASUS ROG Strix LC GeForce RTX 4090 has 128 execution units with 16384 shaders. This gives the graphics card a theoretical FP32 computing power of 83.56 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 4090 |
| GPU Chip: | AD102-300-A1 (Ada Lovelace) |
| Streaming Multiprocessors: | 128 |
| Shader: | 16384 |
| Render Output Units: | 176 |
| Texture Units: | 512 |
| Raytracing Cores: | 128 |
MemoryThe ASUS ROG Strix LC GeForce RTX 4090 is equipped with 24 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.313 GHz and the speed is 21 Gbps. |
|
| Memory Size: | 24 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.313 GHz |
| Memory Speed: | 21.0 Gbps |
| Memory bandwidth: | 1008 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe base frequency of this graphics card is 2.235 GHz and the manufacturer specifies the maximum turbo clock as 2.550 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 2.235 GHz |
| Boost Clock: | 2.550 GHz + 1 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe ASUS ROG Strix LC GeForce RTX 4090 is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is --. |
|
| TDP: | 450 W (Reference) |
| TDP (up): | -- |
| Tjunction max: | 90 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansGraphics processor and graphics memory of the ASUS ROG Strix LC GeForce RTX 4090 are cooled by a Air cooling. |
|
| Fan-Type: | Radial / Axial (Radiator) |
| Fan 1: | 1 x 75 mm |
| Fan 2: | 2 x 120 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the ASUS ROG Strix LC GeForce RTX 4090. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 2x HDMI v2.1a |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the ASUS ROG Strix LC GeForce RTX 4090 it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | ASUS Aura Sync |
Supported Video CodecsThis area lists the video codecs that the ASUS ROG Strix LC GeForce RTX 4090 can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe ASUS ROG Strix LC GeForce RTX 4090 needs the space of 3 PCIe-Slots in a case. It is 293 mm long, 133 mm high and 52 mm wide. |
|
| Length: | 293 mm |
| Height: | 133 mm |
| Width: | 52 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe ASUS ROG Strix LC GeForce RTX 4090 was released in Q2/2023 at a price of 1,599 $ (Reference). The graphics card manufactured in 5 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q2/2023 |
| Launch Price: | 1,599 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | -- |
| Documents: | data sheet |
2.235 GHz, 24 GB (-- TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS ROG Strix LC GeForce RTX 4090
24 GB GDDR6X |
||
