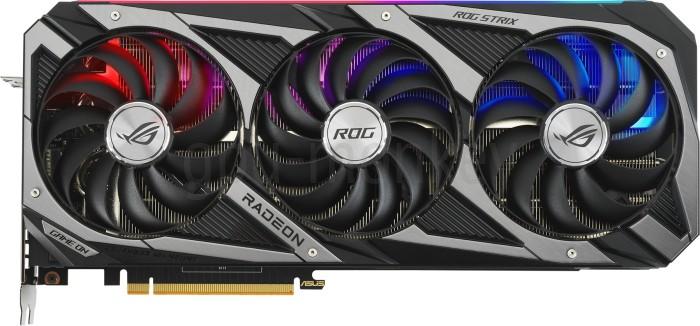

ASUS ROG Strix Radeon RX 6800 OC


Last updated:

Benchmark and Specs

Here you will find all technical data as well as various benchmarks of the ASUS ROG Strix Radeon RX 6800 OC. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the ASUS ROG Strix Radeon RX 6800 OC is 2.190 GHz, so the graphics card achieves an FP32 computing power of 16.82 TFLOPS.

GPU

The ASUS ROG Strix Radeon RX 6800 OC is equipped with 60 execution and 3840 shader units. With single precision, a theoretical FP32 computing power of 16.82 TFLOPS is achieved.

Based on: AMD Radeon RX 6800
GPU Chip: Navi 21 (RDNA 2)
Streaming Multiprocessors: 60
Shader: 3840
Render Output Units: 96
Texture Units: 240
Raytracing Cores: 60

Memory

The ASUS ROG Strix Radeon RX 6800 OC has a 256 bit wide memory interface, with which a memory bandwidth of 512 GB/s is achieved. In total, 16 GB GDDR6 graphics memory is available for the graphics card.

Memory Size: 16 GB
Memory Type: GDDR6
Memory Clock: 2.000 GHz
Memory Speed: 16.0 Gbps
Memory bandwidth: 512 GB/s
Memory Interface: 256 bit

Clock Speeds

The manufacturer specifies the memory clock of the ASUS ROG Strix Radeon RX 6800 OC with 1.850 GHz (base clock) or with 2.190 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.

Base Clock: 1.850 GHzDeviation vs GPU group+ 9 %
Boost Clock: 2.190 GHzDeviation vs GPU group+ 4 %
Avg (Game) Clock: 1.980 GHzDeviation vs GPU group+ 9 %
Overclocking: Yes

Thermal Design

The ASUS ROG Strix Radeon RX 6800 OC has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 100 °C.

TDP: 250 W
TDP (up): 285 W
Tjunction max: 100 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The ASUS ROG Strix Radeon RX 6800 OC is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): 35 dB

Connectivity

Up to 4 screens can be connected to the ASUS ROG Strix Radeon RX 6800 OC, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The ASUS ROG Strix Radeon RX 6800 OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: ASUS Aura Sync

Supported Video Codecs

Here is a list of which video codecs can be decoded / encoded by the ASUS ROG Strix Radeon RX 6800 OC in hardware in order to minimize the processor load.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode / Encode
VP9: Decode / Encode
AV1: Decode

Dimensions

The dimensions of the ASUS ROG Strix Radeon RX 6800 OC are 320 mm in length, 129 mm in height and 57 mm in width. Thus 3 PCIe-Slots are needed in a case.

Length: 320 mm
Height: 129 mm
Width: 57 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The ASUS ROG Strix Radeon RX 6800 OC is manufactured in a structure width of 7 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q4/2020.

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 799 $
Structure size: 7 nm
Part-no: ROG-STRIX-RX6800-O16G-GAMING
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
7825
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
7756

Port Royal (Raytracing)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
8025
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
7954

Speed Way Graphics Score (Raytracing)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
2990
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
2963

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
53 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
51 fps (avg)

2560x1440 (1440p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
61 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
60 fps (avg)

1920x1080 (1080p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
90 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
87 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
31 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
30 fps (avg)

2560x1440 (1440p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
62 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
60 fps (avg)

1920x1080 (1080p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
108 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
104 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
95 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
91 fps (avg)

2560x1440 (1440p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
185 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
178 fps (avg)

1920x1080 (1080p)

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
203 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
194 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
131444
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
129992

Geekbench 6 - Vulkan

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
133644
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
100719

Geekbench 6 - Metal

ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC
16 GB GDDR6
172098
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
137332

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
