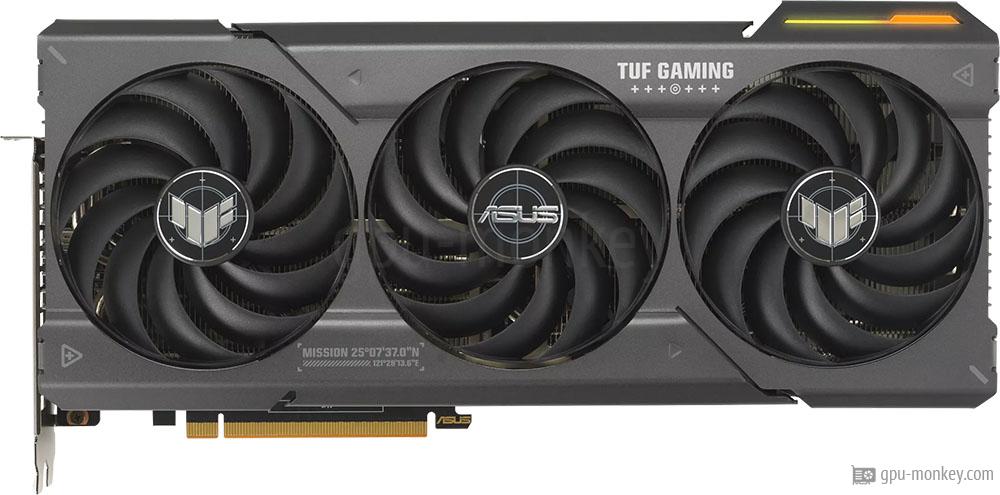

ASUS TUF Gaming Radeon RX 7800 XT OC Edition
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the ASUS TUF Gaming Radeon RX 7800 XT OC Edition are listed on this page. The graphics card is based on the Navi 32 XT (RDNA 3) graphics chip, which is manufactured with a structure width of 5 nm. The ASUS TUF Gaming Radeon RX 7800 XT OC Edition can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe ASUS TUF Gaming Radeon RX 7800 XT OC Edition has 60 execution units with 3840 shaders. This gives the graphics card a theoretical FP32 computing power of 39.39 TFLOPS. |
|
| Based on: | AMD Radeon RX 7800 XT |
| GPU Chip: | Navi 32 XT (RDNA 3) |
| Streaming Multiprocessors: | 60 |
| Shader: | 3840 |
| Render Output Units: | 96 |
| Texture Units: | 240 |
| Raytracing Cores: | 60 |
MemoryThe ASUS TUF Gaming Radeon RX 7800 XT OC Edition is equipped with 16 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 2.438 GHz and the speed is 19.5 Gbps. |
|
| Memory Size: | 16 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 2.438 GHz |
| Memory Speed: | 19.5 Gbps |
| Memory bandwidth: | 624 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.800 GHz and the manufacturer specifies the maximum turbo clock as 2.565 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.800 GHz |
| Boost Clock: | 2.565 GHz + 6 % |
| Avg (Game) Clock: | 2.254 GHz+ 6 % |
| Overclocking: | Yes |
Thermal DesignThe ASUS TUF Gaming Radeon RX 7800 XT OC Edition is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is --. |
|
| TDP: | 263 W (Reference) |
| TDP (up): | -- |
| Tjunction max: | 96 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the ASUS TUF Gaming Radeon RX 7800 XT OC Edition are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the ASUS TUF Gaming Radeon RX 7800 XT OC Edition. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v2.1 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the ASUS TUF Gaming Radeon RX 7800 XT OC Edition it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | ASUS Aura Sync |
Supported Video CodecsThis area lists the video codecs that the ASUS TUF Gaming Radeon RX 7800 XT OC Edition can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode / Encode |
DimensionsThe ASUS TUF Gaming Radeon RX 7800 XT OC Edition needs the space of 3 PCIe-Slots in a case. It is 320 mm long, 151 mm high and 59 mm wide. |
|
| Length: | 320 mm |
| Height: | 151 mm |
| Width: | 59 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe ASUS TUF Gaming Radeon RX 7800 XT OC Edition was released in Q3/2023 at a price of 499 $ (Reference). The graphics card manufactured in 5 nm is connected to the system via PCIe 4 x 16 lanes. |
|
| GPU Interface: | PCIe 4 x 16 |
| Release date: | Q3/2023 |
| Launch Price: | 499 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | TUF-RX7800XT-O16G-GAMING |
| Documents: | data sheet |
1.800 GHz, 16 GB (-- TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
|
|
AMD Radeon RX 7800 XT
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS TUF Gaming Radeon RX 7800 XT OC Edition
16 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,702 entries
5,702 entries
Cyberpunk 2077
3,197 entries
3,197 entries
The Last of Us Part 1
2,204 entries
2,204 entries
GTA 5 Benchmark
4,768 entries
4,768 entries
Shadow of the Tomb Raider
5,312 entries
5,312 entries
Geekbench 6
5,311 entries
5,311 entries
FP32 Performance
6,511 entries
6,511 entries
