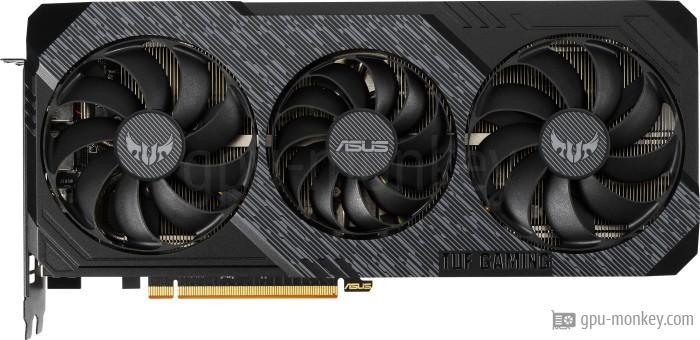

ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo are listed on this page. The graphics card is based on the Navi 10 XLE (RDNA 1) graphics chip, which is manufactured with a structure width of 7 nm. The ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo has 36 execution units with 2304 shaders. This gives the graphics card a theoretical FP32 computing power of 8.17 TFLOPS. |
|
| Based on: | AMD Radeon RX 5600 XT |
| GPU Chip: | Navi 10 XLE (RDNA 1) |
| Streaming Multiprocessors: | 36 |
| Shader: | 2304 |
| Render Output Units: | 64 |
| Texture Units: | 144 |
| Raytracing Cores: | 0 |
MemoryThe ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo is equipped with 6 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps. |
|
| Memory Size: | 6 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 336 GB/s |
| Memory Interface: | 192 bit |
Clock SpeedsThe base frequency of this graphics card is 1.400 GHz and the manufacturer specifies the maximum turbo clock as 1.770 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.400 GHz + 24 % |
| Boost Clock: | 1.770 GHz+ 13 % |
| Avg (Game) Clock: | 1.660 GHz+ 21 % |
| Overclocking: | Yes |
Thermal DesignThe ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 160 W. |
|
| TDP: | 160 W |
| TDP (up): | 195 W |
| Tjunction max: | 100 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 95 mm |
| Fan 2: | 1 x 80 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 28 dB |
| Noise (Load): | 31 dB |
ConnectivityUp to 4 monitors can be operated with the ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode / Encode |
| AV1: | No |
DimensionsThe ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo needs the space of 3 PCIe-Slots in a case. It is 283 mm long, 123 mm high and 54 mm wide. |
|
| Length: | 283 mm |
| Height: | 123 mm |
| Width: | 54 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo was released in Q1/2020 at a price of 279 $ (Reference). The graphics card manufactured in 7 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q1/2020 |
| Launch Price: | 279 $ (Reference) |
| Structure size: | 7 nm |
| Part-no: | ROG-STRIX-RX5600XT-T6G-GAMING |
| Documents: | data sheet |
1.400 GHz, 6 GB (160 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
Geekbench 6 - Metal
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
|
|
AMD Radeon RX 5600 XT
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS TUF Gaming X3 Radeon RX 5600 XT Top Evo
6 GB GDDR6 |
||
