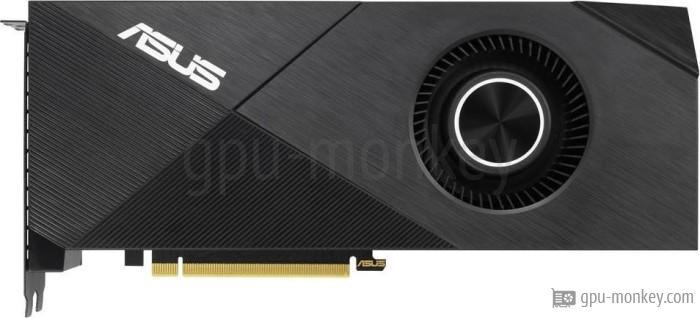

ASUS Turbo GeForce RTX 2080 Evo
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the ASUS Turbo GeForce RTX 2080 Evo are listed on this page. The graphics card is based on the TU104 (Turing) graphics chip, which is manufactured with a structure width of 12 nm. The ASUS Turbo GeForce RTX 2080 Evo can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe ASUS Turbo GeForce RTX 2080 Evo has 46 execution units with 2944 shaders. This gives the graphics card a theoretical FP32 computing power of 10.24 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 2080 |
| GPU Chip: | TU104 (Turing) |
| Streaming Multiprocessors: | 46 |
| Shader: | 2944 |
| Render Output Units: | 64 |
| Texture Units: | 184 |
| Raytracing Cores: | 46 |
MemoryThe ASUS Turbo GeForce RTX 2080 Evo is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 448 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.515 GHz and the manufacturer specifies the maximum turbo clock as 1.740 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.515 GHz |
| Boost Clock: | 1.740 GHz + 2 % |
| Avg (Game) Clock: | 1.710 GHz |
| Overclocking: | Yes |
Thermal DesignThe ASUS Turbo GeForce RTX 2080 Evo is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 215 W. |
|
| TDP: | 215 W |
| TDP (up): | 250 W+ 5 % |
| Tjunction max: | 88 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the ASUS Turbo GeForce RTX 2080 Evo are cooled by a Air cooling. |
|
| Fan-Type: | Radial |
| Fan 1: | 1 x 80 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 36 dB |
| Noise (Load): | 45 dB |
ConnectivityUp to 4 monitors can be operated with the ASUS Turbo GeForce RTX 2080 Evo. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the ASUS Turbo GeForce RTX 2080 Evo it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the ASUS Turbo GeForce RTX 2080 Evo can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe ASUS Turbo GeForce RTX 2080 Evo needs the space of 2 PCIe-Slots in a case. It is 268 mm long, 113 mm high and 40 mm wide. |
|
| Length: | 268 mm |
| Height: | 113 mm |
| Width: | 40 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe ASUS Turbo GeForce RTX 2080 Evo was released in Q3/2018 at a price of 729 $. The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2018 |
| Launch Price: | 729 $ |
| Structure size: | 12 nm |
| Part-no: | TURBO-RTX2080-8G-EVO |
| Documents: | data sheet |
1.515 GHz, 8 GB (215 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASUS Turbo GeForce RTX 2080 Evo
8 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,842 entries
4,842 entries
Cyberpunk 2077
2,676 entries
2,676 entries
GTA 5 Benchmark
4,318 entries
4,318 entries
Shadow of the Tomb Raider
4,871 entries
4,871 entries
Battlefield 5
3,963 entries
3,963 entries
Geekbench 5
3,762 entries
3,762 entries
Crypto-Mining Ethereum Hashrate
3,478 entries
3,478 entries
Crypto-Mining Ergo Hashrate
3,704 entries
3,704 entries
Crypto-Mining Ravencoin Hashrate
3,631 entries
3,631 entries
Crypto-Mining Vertcoin Hashrate
2,452 entries
2,452 entries
FP32 Performance
5,171 entries
5,171 entries
Recommended power supplies for this graphics card
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
EVGA SuperNOVA 650 P2 - 650 W | 4 x | 180 $ | |
|
|
EVGA SuperNOVA 650 G+ - 650 W | 4 x | 130 $ | |
|
Corsair TX-M Series TX650M 2017 - 650 W | 4 x | 102 $ | |
|
|
EVGA SuperNOVA 650 G3 - 650 W | 4 x | 130 $ | |
|
be quiet! Straight Power 11 - 650 W | 4 x | 125 $ | |
|
|
EVGA SuperNOVA 650 G5 - 650 W | 3 x | 140 $ | |
|
|
be quiet! Straight Power 11 Platinum - 650 W | 4 x | 139 $ | |
|
|
EVGA SuperNOVA 650 GT - 650 W | 3 x | 75 $ | |
|
|
EVGA SuperNOVA 650 GA - 650 W | 3 x | 130 $ | |
|
|
be quiet! Pure Power 11 FM - 650 W | 4 x | 99 $ |
