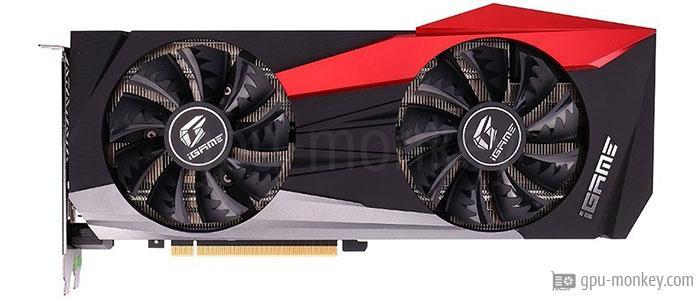

The Colorful GeForce RTX 2080 CH-V has 46 execution units with 2944 shaders. This gives the graphics card a theoretical FP32 computing power of 10.07 TFLOPS.
- GPU Chip
- TU104 (Turing)
- Streaming Multiprocessors
- 46
- Shader
- 2944
- Render Output Units
- 64
- Texture Units
- 184
- Raytracing Cores
- 46
The Colorful GeForce RTX 2080 CH-V is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 448 GB/s
- Memory Interface
- 256 bit
The base frequency of this graphics card is 1.515 GHz and the manufacturer specifies the maximum turbo clock as 1.710 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 1.515 GHz
- Boost Clock
- 1.710 GHz
- Overclocking
- Yes
The Colorful GeForce RTX 2080 CH-V is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 215 W.
- TDP
- 215 W
- Tjunction max
- 88 °C
- PCIe-Power
- 1 x 6-Pin, 1 x 8-Pin
Graphics processor and graphics memory of the Colorful GeForce RTX 2080 CH-V are cooled by a Air cooling.
- Fan-Type
- Axial
- Fan 1
- 2 x 90 mm
- Cooler-Type
- Air cooling
Up to 4 monitors can be operated with the Colorful GeForce RTX 2080 CH-V.
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 3x DP 1.4a
- USB-C
- 1
With the Colorful GeForce RTX 2080 CH-V it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
This area lists the video codecs that the Colorful GeForce RTX 2080 CH-V can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The Colorful GeForce RTX 2080 CH-V needs the space of 3 PCIe-Slots in a case. It is 296 mm long, 140 mm high and 46 mm wide.
- Length
- 296 mm
- Height
- 140 mm
- Width
- 46 mm
- Width (Slots)
- 3 PCIe-Slots
- Weight
- 1110 g
- SFF-Ready
- No
The Colorful GeForce RTX 2080 CH-V was released in Q3/2018 at a price of 699 $. The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q3/2018
- Launch Price
- 699 $ (Reference)
- Structure size
- 12 nm
