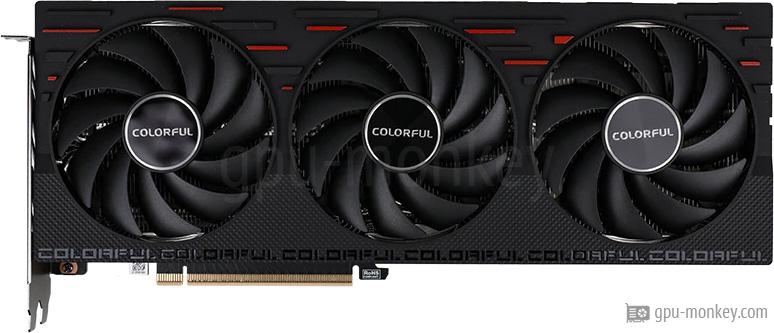

Colorful GeForce RTX 5070 Gaming 12GB-V
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the Colorful GeForce RTX 5070 Gaming 12GB-V. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the Colorful GeForce RTX 5070 Gaming 12GB-V is 2.512 GHz, so the graphics card achieves an FP32 computing power of 30.86 TFLOPS.
GPUThe Colorful GeForce RTX 5070 Gaming 12GB-V is equipped with 48 execution and 6144 shader units. With single precision, a theoretical FP32 computing power of 30.86 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 5070 |
| GPU Chip: | GB205-300-A1 (Blackwell) |
| Streaming Multiprocessors: | 48 |
| Shader: | 6144 |
| Render Output Units: | 64 |
| Texture Units: | 192 |
| Raytracing Cores: | 48 |
MemoryThe Colorful GeForce RTX 5070 Gaming 12GB-V has a 192 bit wide memory interface, with which a memory bandwidth of 672 GB/s is achieved. In total, 12 GB GDDR7 graphics memory is available for the graphics card. |
|
| Memory Size: | 12 GB |
| Memory Type: | GDDR7 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 28.0 Gbps |
| Memory bandwidth: | 672 GB/s |
| Memory Interface: | 192 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the Colorful GeForce RTX 5070 Gaming 12GB-V with 2.325 GHz (base clock) or with 2.512 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 2.325 GHz + 7 % |
| Boost Clock: | 2.512 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe Colorful GeForce RTX 5070 Gaming 12GB-V has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 85 °C. |
|
| TDP: | 250 W |
| TDP (up): | -- |
| Tjunction max: | 85 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansThe Colorful GeForce RTX 5070 Gaming 12GB-V is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the Colorful GeForce RTX 5070 Gaming 12GB-V, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1b |
| DP Ports: | 3x DP v2.1b |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe Colorful GeForce RTX 5070 Gaming 12GB-V supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the Colorful GeForce RTX 5070 Gaming 12GB-V in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode / Encode |
DimensionsThe dimensions of the Colorful GeForce RTX 5070 Gaming 12GB-V are 300 mm in length, 120 mm in height and 41 mm in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 300 mm |
| Height: | 120 mm |
| Width: | 41 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 900 g |
| SFF-Ready: | Yes |
Additional dataThe Colorful GeForce RTX 5070 Gaming 12GB-V is manufactured in a structure width of 5 nm and has a PCIe 5 x 16 lanes interface. The graphics card was released in Q4/2025. |
|
| GPU Interface: | PCIe 5 x 16 |
| Release date: | Q4/2025 |
| Launch Price: | 549 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | -- |
| Documents: | data sheet |
2.325 GHz, 12 GB (250 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Colorful GeForce RTX 5070 Gaming 12GB-V
12 GB GDDR7 |
||
|
NVIDIA GeForce RTX 5070
Average of gpu group |
||
Steel Nomad Light Graphics score
|
|
Colorful GeForce RTX 5070 Gaming 12GB-V
12 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070
Average of gpu group |
||
Steel Nomad Graphics score
|
|
Colorful GeForce RTX 5070 Gaming 12GB-V
12 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070
Average of gpu group |
||
Port Royal (Raytracing)
|
|
Colorful GeForce RTX 5070 Gaming 12GB-V
12 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
Colorful GeForce RTX 5070 Gaming 12GB-V
12 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070
Average of gpu group |
||
Solar Bay (Raytracing)
|
|
Colorful GeForce RTX 5070 Gaming 12GB-V
12 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Colorful GeForce RTX 5070 Gaming 12GB-V
12 GB GDDR7 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
