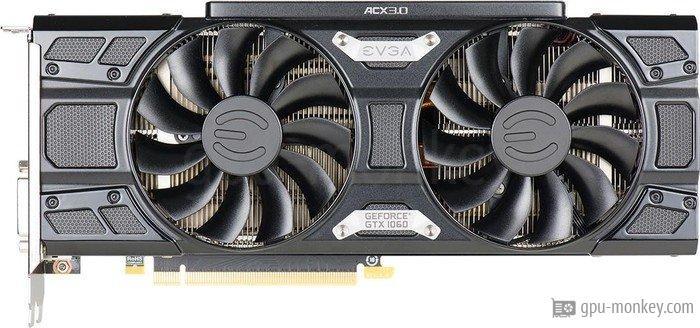

EVGA GeForce GTX 1060 SSC DT GAMING 3GB


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the EVGA GeForce GTX 1060 SSC DT GAMING 3GB are listed on this page. The graphics card is based on the GP106-300-A1 (Pascal) graphics chip, which is manufactured with a structure width of 16 nm. The EVGA GeForce GTX 1060 SSC DT GAMING 3GB can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The EVGA GeForce GTX 1060 SSC DT GAMING 3GB has 9 execution units with 1152 shaders. This gives the graphics card a theoretical FP32 computing power of 3.94 TFLOPS.

Based on: NVIDIA GeForce GTX 1060 3GB
GPU Chip: GP106-300-A1 (Pascal)
Streaming Multiprocessors: 9
Shader: 1152
Render Output Units: 48
Texture Units: 72
Raytracing Cores: 0

Memory

The EVGA GeForce GTX 1060 SSC DT GAMING 3GB is equipped with 3 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 2.002 GHz and the speed is 8 Gbps.

Memory Size: 3 GB
Memory Type: GDDR5
Memory Clock: 2.002 GHz
Memory Speed: 8.0 Gbps
Memory bandwidth: 192 GB/s
Memory Interface: 192 bit

Clock Speeds

The base frequency of this graphics card is 1.506 GHz and the manufacturer specifies the maximum turbo clock as 1.708 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 1.506 GHz
Boost Clock: 1.708 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The EVGA GeForce GTX 1060 SSC DT GAMING 3GB is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 120 W.

TDP: 120 W
TDP (up): --
Tjunction max: 94 °C
PCIe-Power: 1 x 8-Pin

Cooler & Fans

Graphics processor and graphics memory of the EVGA GeForce GTX 1060 SSC DT GAMING 3GB are cooled by a Air cooling.

Fan-Type: Axial
Fan 1: 2 x 90 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): --
Noise (Load): --

Connectivity

Up to 4 monitors can be operated with the EVGA GeForce GTX 1060 SSC DT GAMING 3GB.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0b
DP Ports: 3x DP v1.4
DVI Ports: 1
VGA Ports: --
USB-C Ports: --

Featureset

With the EVGA GeForce GTX 1060 SSC DT GAMING 3GB it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported.

Max. resolution: 7680x4320
DirectX: 12_1
Raytracing: No
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

This area lists the video codecs that the EVGA GeForce GTX 1060 SSC DT GAMING 3GB can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: No
VP9: Decode
AV1: No

Dimensions

The EVGA GeForce GTX 1060 SSC DT GAMING 3GB needs the space of 2 PCIe-Slots in a case. It is 267 mm long, 111 mm high and -- wide.

Length: 267 mm
Height: 111 mm
Width: --
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The EVGA GeForce GTX 1060 SSC DT GAMING 3GB was released in Q3/2016 at a price of 199 $ (Reference). The graphics card manufactured in 16 nm is connected to the system via PCIe 3.0 x 16 lanes.

GPU Interface: PCIe 3.0 x 16
Release date: Q3/2016
Launch Price: 199 $ (Reference)
Structure size: 16 nm
Part-no: 03G-P4-6165-KR
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

EVGA GeForce GTX 1060 SSC DT GAMING 3GB EVGA GeForce GTX 1060 SSC DT GAMING 3GB
3 GB GDDR5
28 fps (avg)
NVIDIA GeForce GTX 1060 3GB NVIDIA GeForce GTX 1060 3GB
Average of gpu group
25 fps (avg)

2560x1440 (1440p)

EVGA GeForce GTX 1060 SSC DT GAMING 3GB EVGA GeForce GTX 1060 SSC DT GAMING 3GB
3 GB GDDR5
45 fps (avg)
NVIDIA GeForce GTX 1060 3GB NVIDIA GeForce GTX 1060 3GB
Average of gpu group
46 fps (avg)

1920x1080 (1080p)

EVGA GeForce GTX 1060 SSC DT GAMING 3GB EVGA GeForce GTX 1060 SSC DT GAMING 3GB
3 GB GDDR5
65 fps (avg)
NVIDIA GeForce GTX 1060 3GB NVIDIA GeForce GTX 1060 3GB
Average of gpu group
67 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
