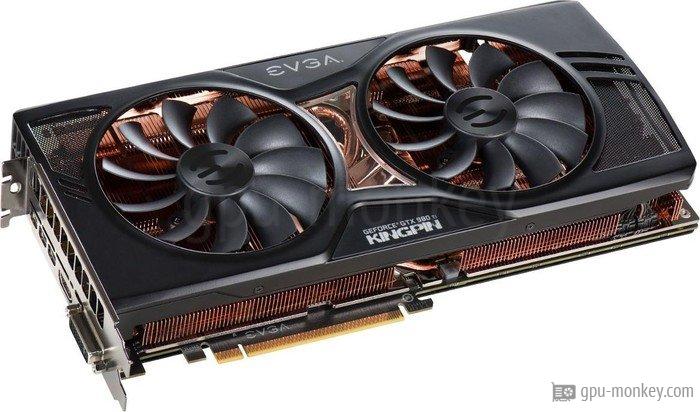

EVGA GeForce GTX 980 Ti Classified KINGPIN


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the EVGA GeForce GTX 980 Ti Classified KINGPIN. The graphics card is based on the NVIDIA GeForce GTX 980 Ti (Maxwell 2.0) and has 6 GB GDDR5 graphics memory with a memory bandwidth of 337 GB/s. The EVGA GeForce GTX 980 Ti Classified KINGPIN has 22 execution units with 2816 shaders.

GPU

The EVGA GeForce GTX 980 Ti Classified KINGPIN has 2816 shaders and 22 execution units. The graphics card thus achieves a theoretical FP32 computing power of 7.34 TFLOPS.

Based on: NVIDIA GeForce GTX 980 Ti
GPU Chip: GM200-310-A1 (Maxwell 2.0)
Streaming Multiprocessors: 22
Shader: 2816
Render Output Units: 96
Texture Units: 176
Raytracing Cores: 0

Memory

The EVGA GeForce GTX 980 Ti Classified KINGPIN can use 6 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 337 GB/s on a 384 bit wide memory interface.

Memory Size: 6 GB
Memory Type: GDDR5
Memory Clock: 1.753 GHz
Memory Speed: 7.0 Gbps
Memory bandwidth: 337 GB/s
Memory Interface: 384 bit

Clock Speeds

The base clock frequency of the EVGA GeForce GTX 980 Ti Classified KINGPIN is 1.203 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.203 GHzDeviation vs GPU group+ 20 %
Boost Clock: 1.304 GHzDeviation vs GPU group+ 21 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the EVGA GeForce GTX 980 Ti Classified KINGPIN is 250 W. The graphics card is supplied with energy via the 1 x 6-Pin, 2 x 8-Pin connector.

TDP: 250 W
TDP (up): --
Tjunction max: 91 °C
PCIe-Power: 1 x 6-Pin, 2 x 8-Pin

Cooler & Fans

The EVGA GeForce GTX 980 Ti Classified KINGPIN has a total of 2 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 2 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the EVGA GeForce GTX 980 Ti Classified KINGPIN.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0
DP Ports: 3x DP v1.2
DVI Ports: 1
VGA Ports: --
USB-C Ports: --

Featureset

The EVGA GeForce GTX 980 Ti Classified KINGPIN has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard.

Max. resolution: 4096x2160
DirectX: 12_1
Raytracing: No
DLSS / FSR: No
LED: No LED lighting

Supported Video Codecs

The video codecs accelerated in hardware by the EVGA GeForce GTX 980 Ti Classified KINGPIN reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: No
VP8: Decode
VP9: No
AV1: No

Dimensions

The EVGA GeForce GTX 980 Ti Classified KINGPIN is 279 mm long and 151 mm high. With a width of --, the graphics card requires 2 PCIe-Slots in the case.

Length: 279 mm
Height: 151 mm
Width: --
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The EVGA GeForce GTX 980 Ti Classified KINGPIN made in 28 nm was published in Q3/2016 for 649 $ (Reference).

GPU Interface: PCIe 3 x 16
Release date: Q3/2016
Launch Price: 649 $ (Reference)
Structure size: 28 nm
Part-no: 06G-P4-5998-KR
Documents: --

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
