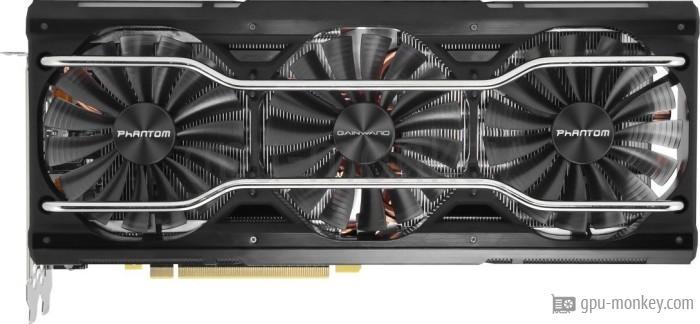

The Gainward GeForce RTX 2080 SUPER Phantom has 3072 shaders and 48 execution units. The graphics card thus achieves a theoretical FP32 computing power of 11.15 TFLOPS.
- GPU Chip
- TU104 (Turing)
- Streaming Multiprocessors
- 48
- Shader
- 3072
- Render Output Units
- 64
- Texture Units
- 192
- Raytracing Cores
- 48
The Gainward GeForce RTX 2080 SUPER Phantom can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 496 GB/s on a 256 bit wide memory interface.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.938 GHz
- Memory Speed
- 15.5 Gbps
- Memory bandwidth
- 496 GB/s
- Memory Interface
- 256 bit
The base clock frequency of the Gainward GeForce RTX 2080 SUPER Phantom is 1.650 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
- Base Clock
- 1.650 GHz
- Boost Clock
- 1.815 GHz
- Overclocking
- Yes
The TDP (Thermal Design Power) of the Gainward GeForce RTX 2080 SUPER Phantom is 250 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.
- TDP
- 250 W
- TDP (up)
- 285 W+2 %
- Tjunction max
- 89 °C
- PCIe-Power
- 2 x 8-Pin
The Gainward GeForce RTX 2080 SUPER Phantom has a total of 3 Axial fans to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 3 x 90 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
- Noise (Load)
- 42 dB
Up to 4 screens can be connected to the Gainward GeForce RTX 2080 SUPER Phantom.
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 3x DP 1.4
- USB-C
- 1
The Gainward GeForce RTX 2080 SUPER Phantom has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- Addressable LED
The video codecs accelerated in hardware by the Gainward GeForce RTX 2080 SUPER Phantom reduce the processor load and ensure lower energy consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The Gainward GeForce RTX 2080 SUPER Phantom is 292 mm long and 130 mm high. With a width of --, the graphics card requires 3 PCIe-Slots in the case.
- Length
- 292 mm
- Height
- 130 mm
- Width (Slots)
- 3 PCIe-Slots
- SFF-Ready
- No
The Gainward GeForce RTX 2080 SUPER Phantom made in 12 nm was published in Q3/2019 for 799 $.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q3/2019
- Launch Price
- 799 $
- Structure size
- 12 nm
- Part-no
- 471056224-0962
