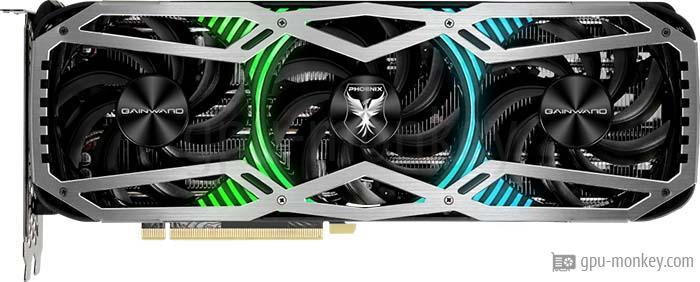

Gainward GeForce RTX 3080 12GB Phoenix GS


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the Gainward GeForce RTX 3080 12GB Phoenix GS. The graphics card is based on the NVIDIA GeForce RTX 3080 12GB (Ampere) and has 12 GB GDDR6X graphics memory with a memory bandwidth of 912 GB/s. The Gainward GeForce RTX 3080 12GB Phoenix GS has 70 execution units with 8960 shaders.

GPU

The Gainward GeForce RTX 3080 12GB Phoenix GS has 8960 shaders and 70 execution units. The graphics card thus achieves a theoretical FP32 computing power of 31.18 TFLOPS.

Based on: NVIDIA GeForce RTX 3080 12GB
GPU Chip: GA102 (Ampere)
Streaming Multiprocessors: 70
Shader: 8960
Render Output Units: 112
Texture Units: 280
Raytracing Cores: 70

Memory

The Gainward GeForce RTX 3080 12GB Phoenix GS can use 12 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 912 GB/s on a 384 bit wide memory interface.

Memory Size: 12 GB
Memory Type: GDDR6X
Memory Clock: 1.188 GHz
Memory Speed: 19.0 Gbps
Memory bandwidth: 912 GB/s
Memory Interface: 384 bit

Clock Speeds

The base clock frequency of the Gainward GeForce RTX 3080 12GB Phoenix GS is 1.260 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.260 GHz
Boost Clock: 1.740 GHzDeviation vs GPU group+ 2 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the Gainward GeForce RTX 3080 12GB Phoenix GS is 350 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.

TDP: 350 W
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The Gainward GeForce RTX 3080 12GB Phoenix GS has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 90 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the Gainward GeForce RTX 3080 12GB Phoenix GS.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The Gainward GeForce RTX 3080 12GB Phoenix GS has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

The video codecs accelerated in hardware by the Gainward GeForce RTX 3080 12GB Phoenix GS reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The Gainward GeForce RTX 3080 12GB Phoenix GS is 294 mm long and 112 mm high. With a width of --, the graphics card requires 3 PCIe-Slots in the case.

Length: 294 mm
Height: 112 mm
Width: --
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The Gainward GeForce RTX 3080 12GB Phoenix GS made in 8 nm was published in Q1/2022 for 699 $ (Reference).

GPU Interface: PCIe 4.0 x 16
Release date: Q1/2022
Launch Price: 699 $ (Reference)
Structure size: 8 nm
Part-no: NED3080S19KB-132AX
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
61 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
61 fps (avg)

2560x1440 (1440p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
71 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
72 fps (avg)

1920x1080 (1080p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
106 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
106 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
39 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
38 fps (avg)

2560x1440 (1440p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
77 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
76 fps (avg)

1920x1080 (1080p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
128 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
126 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
109 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
109 fps (avg)

2560x1440 (1440p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
188 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
184 fps (avg)

1920x1080 (1080p)

Gainward GeForce RTX 3080 12GB Phoenix GS Gainward GeForce RTX 3080 12GB Phoenix GS
12 GB GDDR6X
204 fps (avg)
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB
Average of gpu group
198 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
