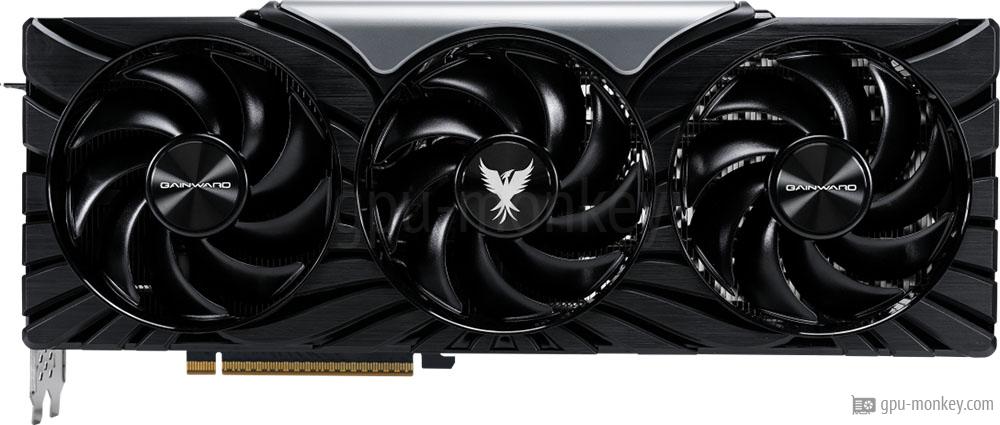

Gainward GeForce RTX 5070 TI Phoenix GS
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the Gainward GeForce RTX 5070 TI Phoenix GS are listed on this page. The graphics card is based on the GB203-200-A1 (Blackwell) graphics chip, which is manufactured with a structure width of 5 nm. The Gainward GeForce RTX 5070 TI Phoenix GS can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe Gainward GeForce RTX 5070 TI Phoenix GS has 70 execution units with 8960 shaders. This gives the graphics card a theoretical FP32 computing power of 44.48 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 5070 TI |
| GPU Chip: | GB203-200-A1 (Blackwell) |
| Streaming Multiprocessors: | 70 |
| Shader: | 8960 |
| Render Output Units: | 96 |
| Texture Units: | 280 |
| Raytracing Cores: | 70 |
MemoryThe Gainward GeForce RTX 5070 TI Phoenix GS is equipped with 16 GB graphics memory of the type GDDR7. The memory clock of the graphics card is 1.750 GHz and the speed is 28 Gbps. |
|
| Memory Size: | 16 GB |
| Memory Type: | GDDR7 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 28.0 Gbps |
| Memory bandwidth: | 896 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 2.295 GHz and the manufacturer specifies the maximum turbo clock as 2.482 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 2.295 GHz |
| Boost Clock: | 2.482 GHz + 1 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe Gainward GeForce RTX 5070 TI Phoenix GS is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 300 W. |
|
| TDP: | 300 W |
| TDP (up): | -- |
| Tjunction max: | 88 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansGraphics processor and graphics memory of the Gainward GeForce RTX 5070 TI Phoenix GS are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the Gainward GeForce RTX 5070 TI Phoenix GS. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1b |
| DP Ports: | 3x DP v2.1b |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the Gainward GeForce RTX 5070 TI Phoenix GS it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsThis area lists the video codecs that the Gainward GeForce RTX 5070 TI Phoenix GS can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode / Encode |
DimensionsThe Gainward GeForce RTX 5070 TI Phoenix GS needs the space of 3 PCIe-Slots in a case. It is 332 mm long, 133 mm high and 60 mm wide. |
|
| Length: | 332 mm |
| Height: | 133 mm |
| Width: | 60 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe Gainward GeForce RTX 5070 TI Phoenix GS was released in Q1/2025 at a price of 749 $ (Reference). The graphics card manufactured in 5 nm is connected to the system via PCIe 5 x 16 lanes. |
|
| GPU Interface: | PCIe 5 x 16 |
| Release date: | Q1/2025 |
| Launch Price: | 749 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | NE7507TS19T2-GB2031X |
| Documents: | data sheet |
2.295 GHz, 16 GB (300 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Gainward GeForce RTX 5070 TI Phoenix GS
16 GB GDDR7 |
||
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Steel Nomad Light Graphics score
|
|
Gainward GeForce RTX 5070 TI Phoenix GS
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Steel Nomad Graphics score
|
|
Gainward GeForce RTX 5070 TI Phoenix GS
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Port Royal (Raytracing)
|
|
Gainward GeForce RTX 5070 TI Phoenix GS
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
Gainward GeForce RTX 5070 TI Phoenix GS
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Solar Bay (Raytracing)
|
|
Gainward GeForce RTX 5070 TI Phoenix GS
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Gainward GeForce RTX 5070 TI Phoenix GS
16 GB GDDR7 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
