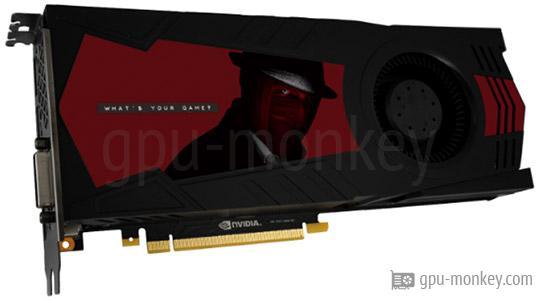

GALAX GeForce GTX 1070 Ti Virtual Edition
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the GALAX GeForce GTX 1070 Ti Virtual Edition are listed on this page. The graphics card is based on the GP104-300-A1 (Pascal) graphics chip, which is manufactured with a structure width of 16 nm. The GALAX GeForce GTX 1070 Ti Virtual Edition can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe GALAX GeForce GTX 1070 Ti Virtual Edition has 199 execution units with 2432 shaders. This gives the graphics card a theoretical FP32 computing power of 8.19 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1070 Ti |
| GPU Chip: | GP104-300-A1 (Pascal) |
| Streaming Multiprocessors: | 199 |
| Shader: | 2432 |
| Render Output Units: | 64 |
| Texture Units: | 152 |
| Raytracing Cores: | 0 |
MemoryThe GALAX GeForce GTX 1070 Ti Virtual Edition is equipped with 8 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 2.002 GHz and the speed is 8 Gbps. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 2.002 GHz |
| Memory Speed: | 8.0 Gbps |
| Memory bandwidth: | 256 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.607 GHz and the manufacturer specifies the maximum turbo clock as 1.683 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.607 GHz |
| Boost Clock: | 1.683 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe GALAX GeForce GTX 1070 Ti Virtual Edition is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 180 W. |
|
| TDP: | 180 W |
| TDP (up): | -- |
| Tjunction max: | 94 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the GALAX GeForce GTX 1070 Ti Virtual Edition are cooled by a Air cooling. |
|
| Fan-Type: | Radial |
| Fan 1: | 1 x 70 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the GALAX GeForce GTX 1070 Ti Virtual Edition. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the GALAX GeForce GTX 1070 Ti Virtual Edition it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the GALAX GeForce GTX 1070 Ti Virtual Edition can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe GALAX GeForce GTX 1070 Ti Virtual Edition needs the space of 2 PCIe-Slots in a case. It is 281 mm long, 124 mm high and 42 mm wide. |
|
| Length: | 281 mm |
| Height: | 124 mm |
| Width: | 42 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe GALAX GeForce GTX 1070 Ti Virtual Edition was released in Q4/2017 at a price of 449 $ (Reference). The graphics card manufactured in 16 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q4/2017 |
| Launch Price: | 449 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | 70ISH6DHN1WS |
| Documents: | data sheet |
1.607 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1070 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1070 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce GTX 1070 Ti Virtual Edition
8 GB GDDR5 |
||
