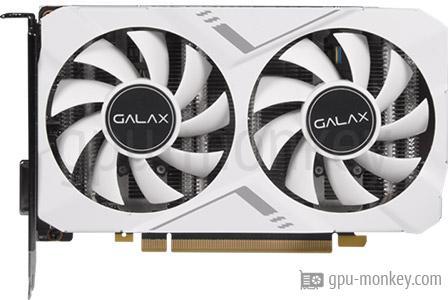

The GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) has 1408 shaders and 22 execution units. The graphics card thus achieves a theoretical FP32 computing power of 5.11 TFLOPS.
- GPU Chip
- TU116-300-A1 (Turing)
- Streaming Multiprocessors
- 22
- Shader
- 1408
- Render Output Units
- 48
- Texture Units
- 88
The GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) can use 6 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 336 GB/s on a 192 bit wide memory interface.
- Memory Size
- 6 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 336 GB/s
- Memory Interface
- 192 bit
The base clock frequency of the GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) is 1.530 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
- Base Clock
- 1.530 GHz
- Boost Clock
- 1.815 GHz+2 %
- Avg (Game) Clock
- 1.800 GHz
- Overclocking
- Yes
The TDP (Thermal Design Power) of the GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) is 125 W. The graphics card is supplied with energy via the 1 x 8-Pin connector.
- TDP
- 125 W
- Tjunction max
- 93 °C
- PCIe-Power
- 1 x 8-Pin
The GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) has a total of 2 Axial fans to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 2 x 80 mm
- Cooler-Type
- Air cooling
Up to 3 screens can be connected to the GALAX GeForce GTX 1660 Super ELITE White (1-Click OC).
- Max. Displays
- 3
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 1x DP 1.4
- DVI
- 1
The GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard.
- Max. resolution
- 7680x4320
- DirectX
- 12_1
- Raytracing
- No
- DLSS / FSR
- Yes
- LED
- No LED lighting
The video codecs accelerated in hardware by the GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) reduce the processor load and ensure lower energy consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) is 190 mm long and 126 mm high. With a width of 41 mm, the graphics card requires 2 PCIe-Slots in the case.
- Length
- 190 mm
- Height
- 126 mm
- Width
- 41 mm
- Width (Slots)
- 2 PCIe-Slots
- SFF-Ready
- No
The GALAX GeForce GTX 1660 Super ELITE White (1-Click OC) made in 12 nm was published in Q4/2019 for 229 $.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q4/2019
- Launch Price
- 229 $ (Reference)
- Structure size
- 12 nm
- Part-no
- 60SRL7DSZ9MS
