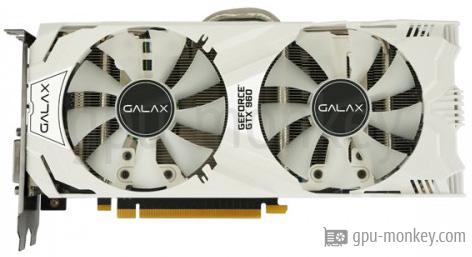

GALAX GeForce GTX 960 EXOC White
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the GALAX GeForce GTX 960 EXOC White. Up to 4 screens with a maximum resolution of up to 4096x2160 can be operated with this graphics card. The maximum turbo clock of the GALAX GeForce GTX 960 EXOC White is 1.342 GHz, so the graphics card achieves an FP32 computing power of 2.75 TFLOPS.
GPUThe GALAX GeForce GTX 960 EXOC White is equipped with 8 execution and 1024 shader units. With single precision, a theoretical FP32 computing power of 2.75 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GTX 960 |
| GPU Chip: | GM206-300-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 8 |
| Shader: | 1024 |
| Render Output Units: | 32 |
| Texture Units: | 64 |
| Raytracing Cores: | 0 |
MemoryThe GALAX GeForce GTX 960 EXOC White has a 128 bit wide memory interface, with which a memory bandwidth of 112 GB/s is achieved. In total, 2 GB GDDR5 graphics memory is available for the graphics card. |
|
| Memory Size: | 2 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.753 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 112 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the GALAX GeForce GTX 960 EXOC White with 1.279 GHz (base clock) or with 1.342 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.279 GHz + 13 % |
| Boost Clock: | 1.342 GHz+ 14 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe GALAX GeForce GTX 960 EXOC White has 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 98 °C. |
|
| TDP: | 120 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe GALAX GeForce GTX 960 EXOC White is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the GALAX GeForce GTX 960 EXOC White, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 1x DP v1.2 |
| DVI Ports: | 2 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe GALAX GeForce GTX 960 EXOC White supports a maximum resolution of 4096x2160 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the GALAX GeForce GTX 960 EXOC White in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe dimensions of the GALAX GeForce GTX 960 EXOC White are 271 mm in length, 124 mm in height and 41 mm in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 271 mm |
| Height: | 124 mm |
| Width: | 41 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe GALAX GeForce GTX 960 EXOC White is manufactured in a structure width of 28 nm and has a PCIe 3 x 16 lanes interface. The graphics card was released in Q1/2015. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q1/2015 |
| Launch Price: | 229 $ |
| Structure size: | 28 nm |
| Part-no: | 96NPH8DVE8DC |
| Documents: | -- |
1.279 GHz, 2 GB (120 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce GTX 960 EXOC White
2 GB GDDR5 |
||
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce GTX 960 EXOC White
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce GTX 960 EXOC White
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce GTX 960 EXOC White
2 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,702 entries
5,702 entries
Shadow of the Tomb Raider
5,312 entries
5,312 entries
Geekbench 6
5,311 entries
5,311 entries
FP32 Performance
6,511 entries
6,511 entries
