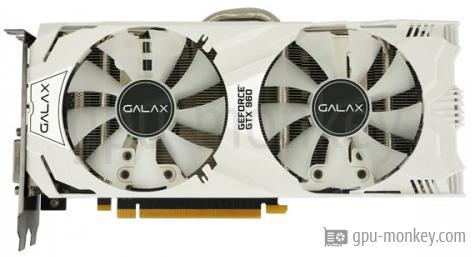

GALAX GeForce GTX 960 EXOC White 4GB
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the GALAX GeForce GTX 960 EXOC White 4GB. The graphics card is based on the NVIDIA GeForce GTX 960 (Maxwell 2.0) and has 4 GB GDDR5 graphics memory with a memory bandwidth of 112 GB/s. The GALAX GeForce GTX 960 EXOC White 4GB has 8 execution units with 1024 shaders.
GPUThe GALAX GeForce GTX 960 EXOC White 4GB has 1024 shaders and 8 execution units. The graphics card thus achieves a theoretical FP32 computing power of 2.75 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 960 |
| GPU Chip: | GM206-300-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 8 |
| Shader: | 1024 |
| Render Output Units: | 32 |
| Texture Units: | 64 |
| Raytracing Cores: | 0 |
MemoryThe GALAX GeForce GTX 960 EXOC White 4GB can use 4 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 112 GB/s on a 128 bit wide memory interface. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.753 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 112 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base clock frequency of the GALAX GeForce GTX 960 EXOC White 4GB is 1.279 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.279 GHz + 13 % |
| Boost Clock: | 1.342 GHz+ 14 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GALAX GeForce GTX 960 EXOC White 4GB is 120 W. The graphics card is supplied with energy via the 1 x 8-Pin connector. |
|
| TDP: | 120 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe GALAX GeForce GTX 960 EXOC White 4GB has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the GALAX GeForce GTX 960 EXOC White 4GB. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 1x DP v1.2 |
| DVI Ports: | 2 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe GALAX GeForce GTX 960 EXOC White 4GB has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the GALAX GeForce GTX 960 EXOC White 4GB reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe GALAX GeForce GTX 960 EXOC White 4GB is 271 mm long and 124 mm high. With a width of 41 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 271 mm |
| Height: | 124 mm |
| Width: | 41 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe GALAX GeForce GTX 960 EXOC White 4GB made in 28 nm was published in Q1/2015 for 229 $. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q1/2015 |
| Launch Price: | 229 $ |
| Structure size: | 28 nm |
| Part-no: | 96NPH8DVE8DK |
| Documents: | -- |
1.279 GHz, 4 GB (120 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce GTX 960 EXOC White 4GB
4 GB GDDR5 |
||
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce GTX 960 EXOC White 4GB
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce GTX 960 EXOC White 4GB
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce GTX 960 EXOC White 4GB
4 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,702 entries
5,702 entries
Shadow of the Tomb Raider
5,312 entries
5,312 entries
Geekbench 6
5,311 entries
5,311 entries
FP32 Performance
6,511 entries
6,511 entries
