The GALAX GeForce GTX 980 HOF is equipped with 16 execution and 2048 shader units. With single precision, a theoretical FP32 computing power of 5.81 TFLOPS is achieved.
The GALAX GeForce GTX 980 HOF has a 256 bit wide memory interface, with which a memory bandwidth of 224 GB/s is achieved. In total, 4 GB GDDR5 graphics memory is available for the graphics card.
The manufacturer specifies the memory clock of the GALAX GeForce GTX 980 HOF with 1.304 GHz (base clock) or with 1.418 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.
The GALAX GeForce GTX 980 HOF has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 98 °C.

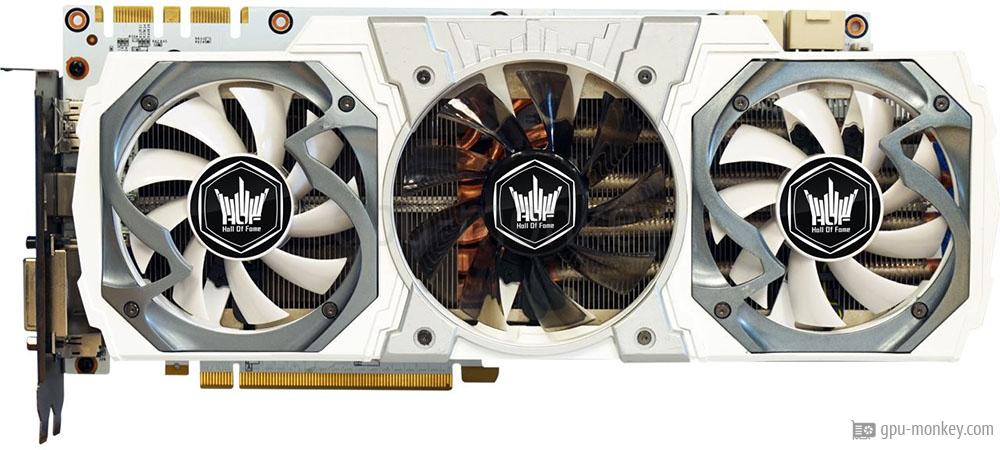

The GALAX GeForce GTX 980 HOF is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.
Up to 4 screens can be connected to the GALAX GeForce GTX 980 HOF, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version.
The GALAX GeForce GTX 980 HOF supports a maximum resolution of 4096x2160 pixels and the DirectX standard version 12_1.
Here is a list of which video codecs can be decoded / encoded by the GALAX GeForce GTX 980 HOF in hardware in order to minimize the processor load.
The dimensions of the GALAX GeForce GTX 980 HOF are 308 mm in length, 129 mm in height and 49 mm in width. Thus 3 PCIe-Slots are needed in a case.
The GALAX GeForce GTX 980 HOF is manufactured in a structure width of 28 nm and has a PCIe 3 x 16 lanes interface. The graphics card was released in Q3/2014.
GALAX GeForce GTX 980 HOFType a model name – the comparison opens automatically.
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
Average of 10 public MonkeyBench results (WebGPU) for the NVIDIA GeForce GTX 980.
More benchmarks for the graphics card GALAX GeForce GTX 980 HOF
